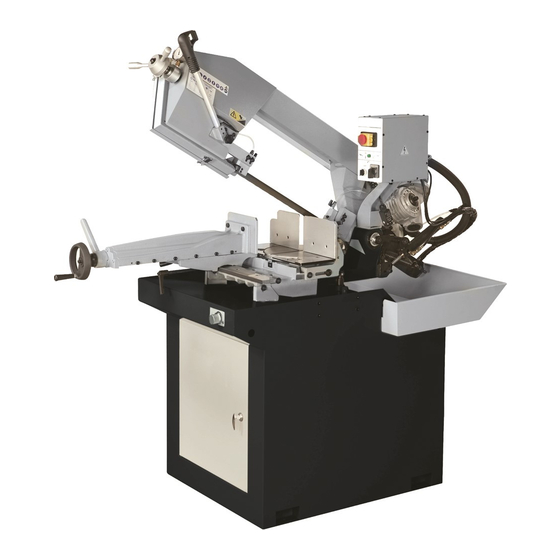

Huvema HU 285 AC-4 TOPLINE Manual

Bandsaw machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BANDSAW MACHINE
HU 285 AC-4 TOPLINE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HU 285 AC-4 TOPLINE and is the answer not in the manual?

Questions and answers

Related Manuals for Huvema HU 285 AC-4 TOPLINE

Summary of Contents for Huvema HU 285 AC-4 TOPLINE

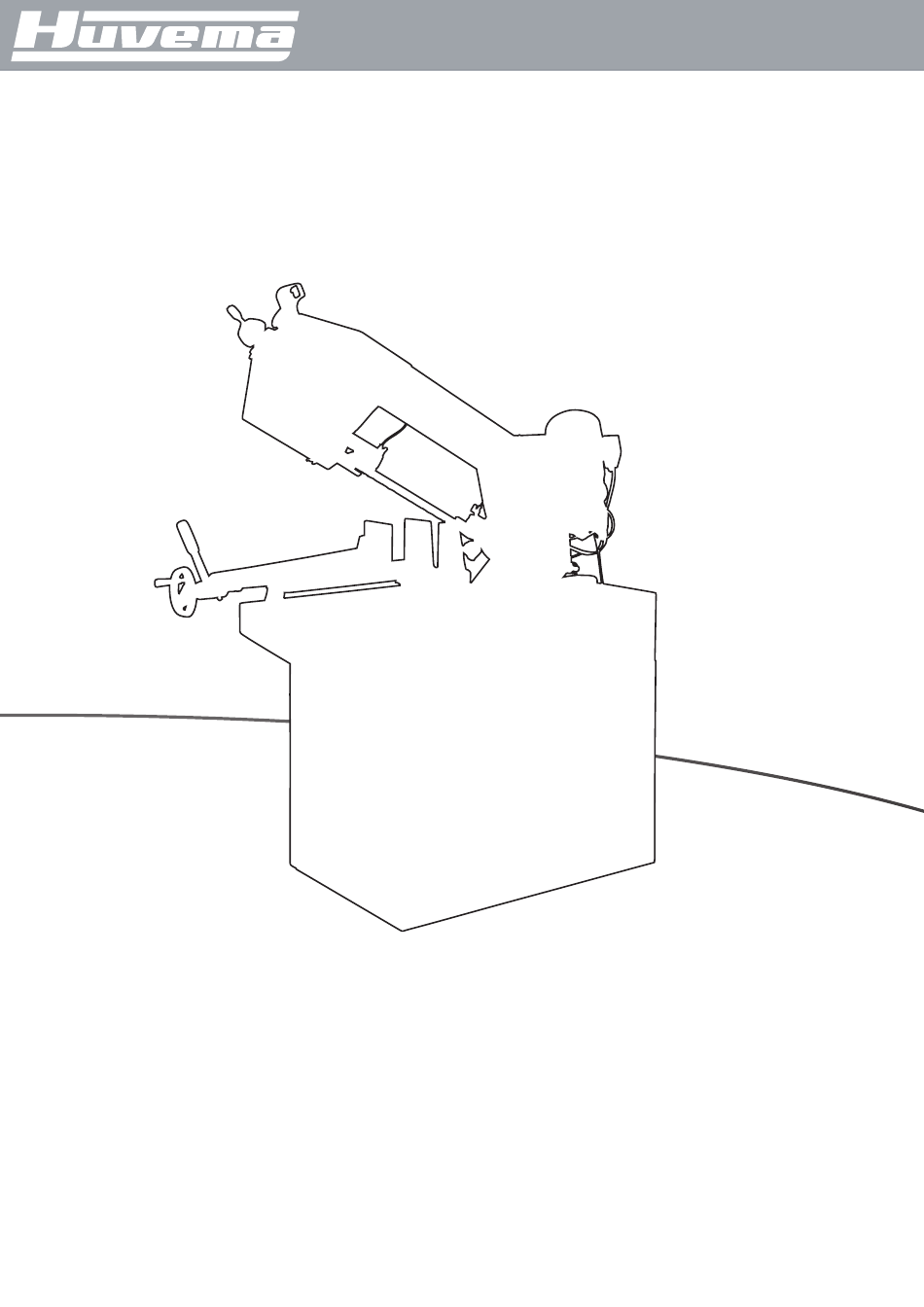

  • Page 1 BANDSAW MACHINE HU 285 AC-4 TOPLINE...

  • Page 2: Table Of Contents

    able of conTenTs General safety rules for all machines Additional safety rules Safety rules for all tools User Use of machine Adjustment Working environment Maintenance Spectified usage Noise Safety device Specification Transportation & installation Unpacking Transportation of machine Installation Cleaning & lubricating Make proper tooth selection Bi-metal speeds and feeds Telltale chips...

  • Page 3: General Safety Rules For All Machines

    HU 285 ac-4 ToPlIne 1. G eneral safeTy rUles for all macHInes N.B.: Read the instructions carefully in order to avoid any problems. As with all machinery there are certain hazards involved with operation and use of this machine. Using the machine with respect and caution will considerably lessen the possibility op personal injury.

  • Page 4: Additional Safety Rules

    2. a ddITIonal safeTy rUles Always keep in mind that: • the machine must be switched off and disconnected from the power supply during maintenance and repairs, • clamped workpieces may only be measured when the machine is switched off. Never lean over the machine, mind loose clothing, ties, jewellery etc.

  • Page 5: Adjustment

    7. Avoid accidental starting. Make sure switch is in “off” position before plugging in power cord. 8. Directionof feed. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only. 9. Adjust and position the blade guide arm before starting the cut. 10.

  • Page 6: Specification

    2.SPECIFICATION MOTOR 1.65HP 415V/50HZ Motor 1,6 HP 400V/50HZ Saw Blade Speed Saw Blade Speed 37~74 (50Hz) 37~74(50Hz) Blade Size (mm) 27x0.9x2965mm Blade Size (mm) 27x0.9x2965mm Dimension LxWxH (mm) 1350 x 715 x 1326mm Dimension LxWxH (mm) 1350X715X1326mm N.W / G.W (kgs) 295/ 325 Packing N.W / G.W (kgs)

  • Page 7: Transportation Of Machine

    5.2 T ransPorTaTIon of macHIne As this machine weights 208kgs it is recommended that the machine be transported with help of lifting jack. Transportation recommendation: Tighten all locks before operation. Always keep proper footing & balance while moving this machine, and only use a heavy duty of fiber belt to lift the machine as per the figure.

  • Page 8: Bi-Metal Speeds And Feeds

    5.5 Sq.Ln. (35Cm2) / 4” (100mm) distance =1.38(35Mm) average width 1.38” (35Mm), use a 4/6 vari-tooth Note: the band speed and cutting rate recommendations presented on this chart are approximations and are to be used as a starting point for most applications. For exact sawing parameters’ consult your saw blade supplier.

  • Page 9: Telltale Chips

    1008,1015,1020,1025 1035 1018,1021,1022 1026,1513 Carbon Steel A36(SHAPES),1040 1042,1541 1044,1045 1060 1095 8615,8620,8622 4340,E4340,8630 Ni-Cr-Mo Alloy Steel 8640 E9310 Tool Steel A-10 H-11,H-12,H-13 410,502 Stainless Steel 440C 304,324 304L 316,316L 6.1 T ellTale cHIPs Chips are the best indicators of correct feed force. Monitor chip information and adjust feed accordingly.

  • Page 10: Use Of Main Machine Parts

    peration way : Push the green button(A)(fig.S1) to connect the power for the machine . Fast moving saw-farm to approach cutting material Turn the switch (D(fig.S1)) to “Quick” ,push the handle of 7. U se of maIn macHIne ParTs limit switch(A)(fig.S2),it can move the saw farm manually to near the material.

  • Page 11: Adjusting Blade Tension And Blade Tracking

    7.4 a djUsTInG blade TensIon and blade TrackInG 7-3.ADJUSTING BLADE TENSION AND BLADE TRACKING To tension the blade, turn the blade tension handle (fig. 8, A) clockwise. To tension the blade, turn the blade tension handle (fig. 1)(A) clockwise. The scale is graduated to indicate blade tension of 20,000, 30.000 And To set up at the middle of green position .

  • Page 12: Cutting Angle Selection

    CONTINUED CUTTING: When you need to cut a work piece many times, just raise the vise handle (A) to loosen and adjust work piece position. Then push down on the same handle to tighten. You can also push the vise handle (A) down first, and then tightening the vise by turning the rectangular handle (B) clockwise.

  • Page 13: Chips

    8.1 c HIPs Clean the chips by removing the chips tank A (Fig 16 ) Fig 16 Symptom Possible Cause(s) Corrective Action Machine can not be 1. Power is not plugged; the power 1. Check the motor specification; connect the started light on control panel is not on.
  • Page 14 Motor running too hot 1. Blade tension too high. 1. Reduce tension on blade. 2. Drive belt tension too high. 2. Reduce tension on drive belt. 3. Blade is too coarse for work 3. Use finer blade. 4. Blade is too fine for work 4.

  • Page 15: Electrical Diagrams

    9. e lecTrIcal dIaGrams YCM-300 YCM-300 Fig 17 CHANGES AND T YPING ERRORS RESER VED...

  • Page 16: Parts Diagram

    10. P arTs dIaGram Fig 18 CHANGES AND T YPING ERRORS RESER VED...
  • Page 17 Fig 19 CHANGES AND T YPING ERRORS RESER VED...
  • Page 18 Fig 20 CHANGES AND T YPING ERRORS RESER VED...
  • Page 19 Fig 21 CHANGES AND T YPING ERRORS RESER VED...

  • Page 20: Exploded Drawing And Parts List

    11. e xPloded draWInG and ParTs lIsT Number Description Number Description CAP Screw Fixed Block Washer Set Screw Shaft Switch Anchor Blok Handel C-Ring Handel Pipe CAP Screw Screw CAP Screw Screw Bearing Blade Adjust Stick Left Body Frame Screw PIPE connect Blade Cover (Front) PIPE connect Body Frame...
  • Page 21 Number Description Number Description Bearing Cover 105A Base 84-1 Bearing 51106 105B Front Door Vise Handle 105C CAPScrew 86/86*1 CAPScrew 105D Washer Spring 105E Screw Leadscrew 105F Screw Vise Handle Set 105G Set Nut Vise Handle Rod 105H 91*1 Bearing 105I Handle Leadscrew Copper...
  • Page 22 All rights reserved. No part of this booklet may be reproduced in any form, by print, photoprint, microfilm or any other means without written permission from the publisher. © Huberts bv, Kennedylaan 14, Veghel, the Netherlands. Internet: www.huvema.nl CHANGES AND T YPING ERRORS RESER VED...
  • Page 23 (in accordance with supplement II A of the Machinery Directive) Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machine: Bandsaw machine HU 285 AC-4 Topline...
  • Page 24 CHANGES AND T YPING ERRORS RESER VED...
