Tormach Collet Closer 5C Technical Document page 7

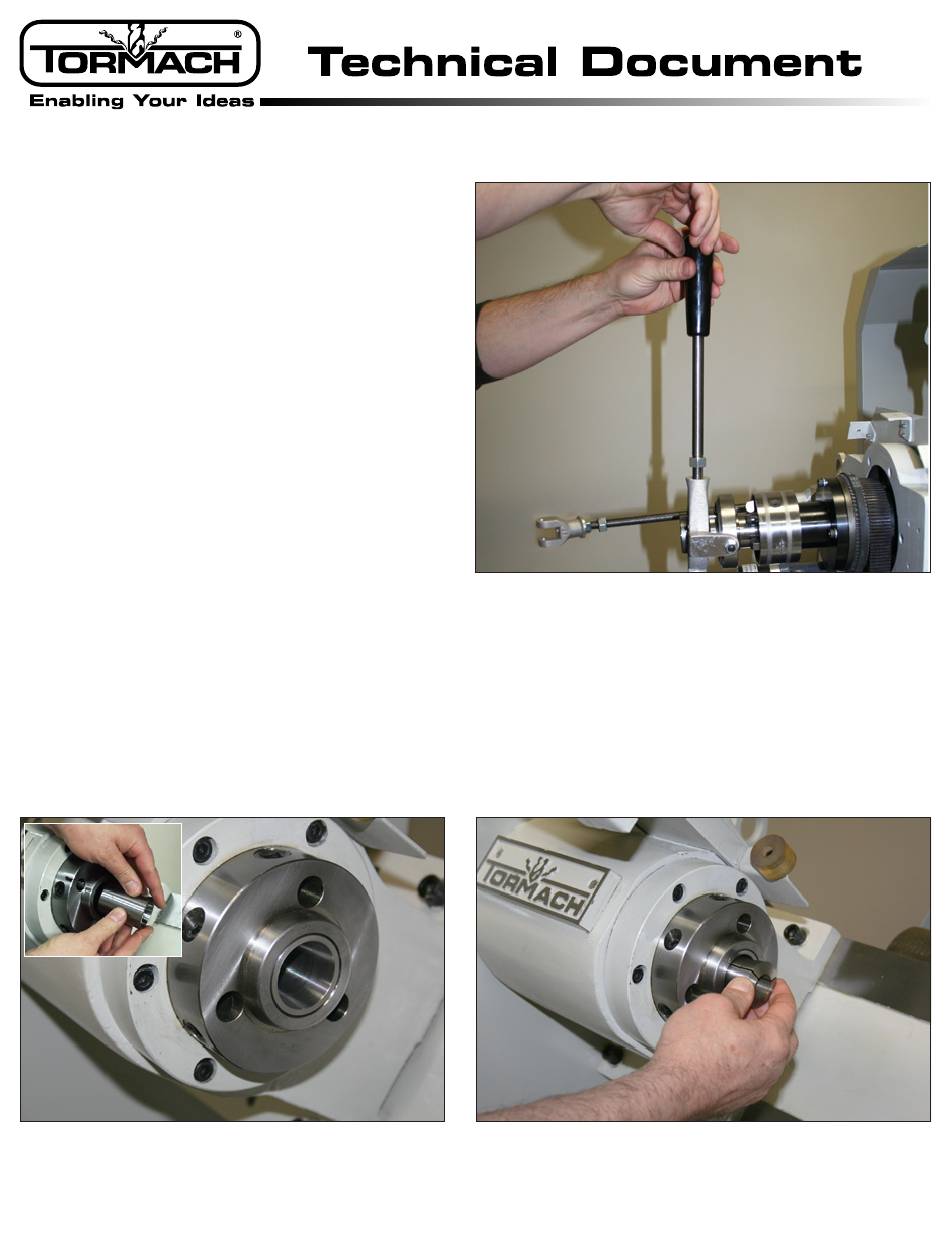

20. Screw Collet Handle into Collet Closer; tighten
securely (see Figure 16).
21. Re-attach Connector to Collet Closer with nut
and bolt set aside in Step 18; tighten securely.
NOTE: Connector should be able to move freely.
22. Ensure 5C insert (included with lathe) is inserted in spindle (see Figure 17 and inset).
23. Insert 5C collet (not included) into adapter and rotate to engage the collar's internal pin with the groove
on the collet (see Figure 18).
Figure 17
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534
Figure 16
Figure 18
Page 7
©Tormach® 2014. All rights reserved.
Specifications subject to change without notice.
TD10249_Collet_Closer_Install_0117A
