Deburr

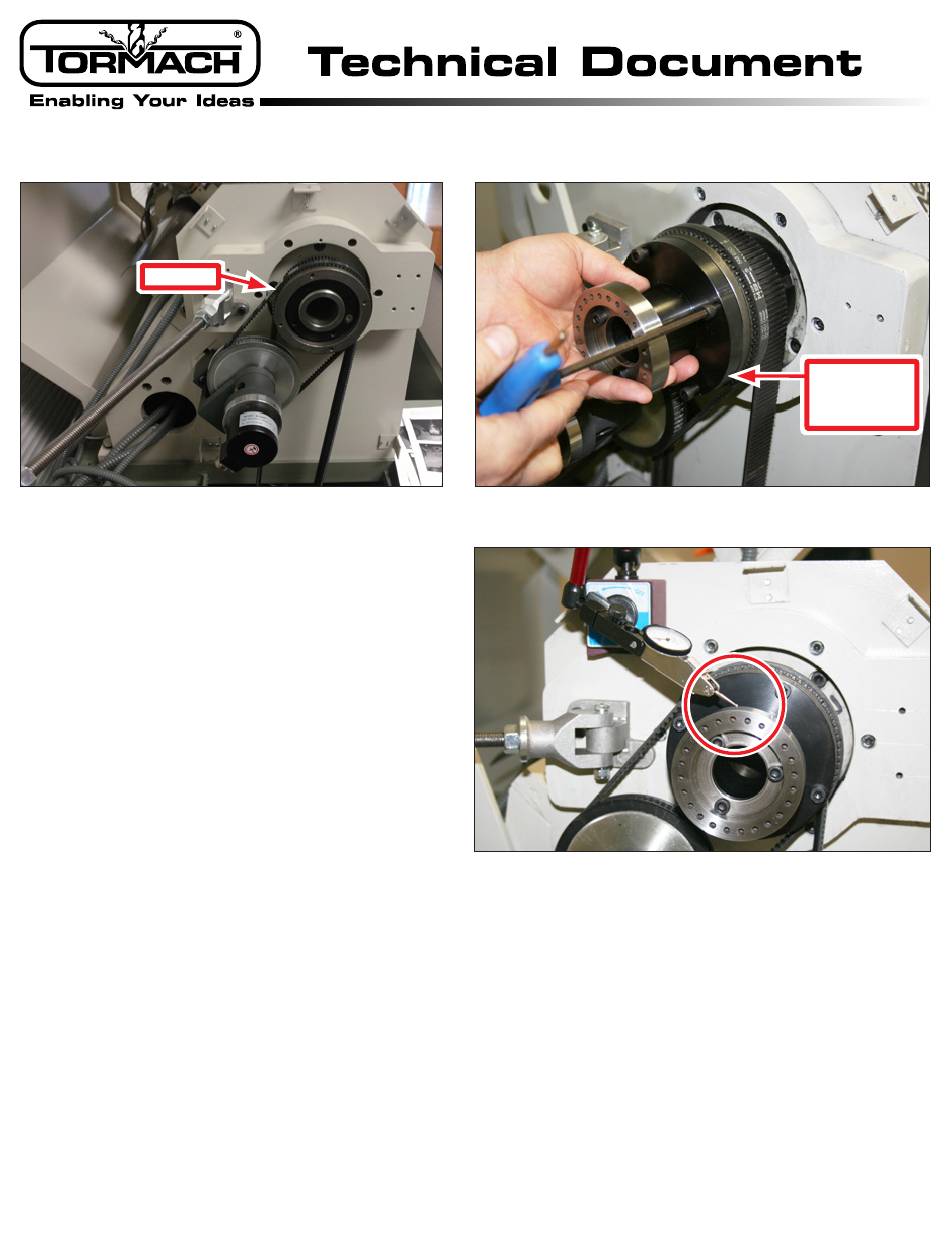

Figure 7
7. Using machinist's stone or similar, lightly
stone the back of the Index Ring/Adapter
assembly and the face of the spindle pulley
(see Figure 7) to remove burrs. Presence of
burrs may cause runout.
8. Using four M6 Socket Head Cap Screws and four
M6 Lock Washers, attach Index Ring/Adapter
Assembly to spindle pulley (see Figure 8).
9. Attach .0005" magnetic dial indicator to lathe
and position indicator tip against index ring
(see Figure 9).
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534
Figure 8
Figure 9
Page 4
©Tormach® 2014. All rights reserved.
Specifications subject to change without notice.
TD10249_Collet_Closer_Install_0117A
Index Ring/
Adapter
Assembly
