Tormach Collet Closer 5C Technical Document page 3

Connector
Bracket

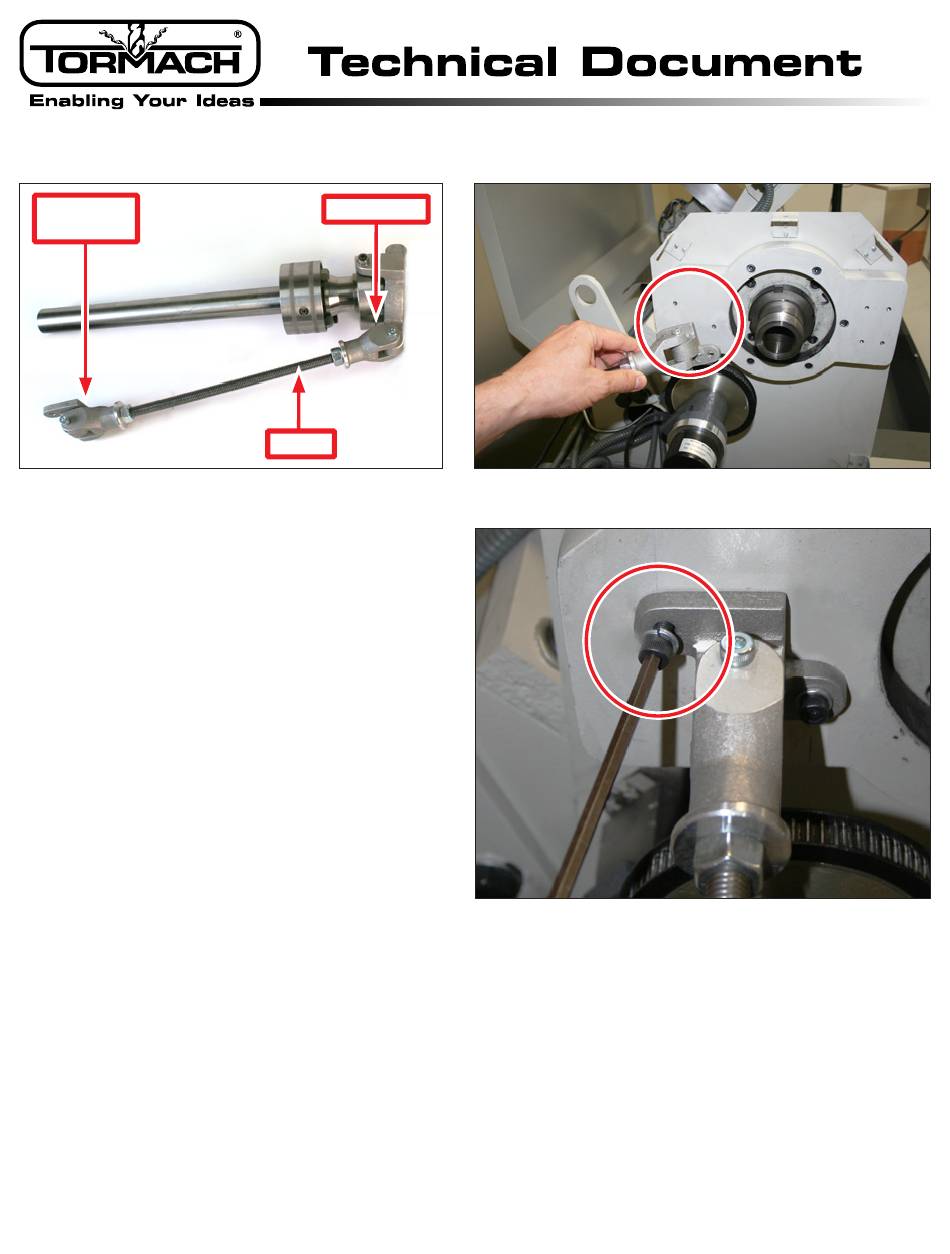

Figure 4
4. Unscrew Rod from Connector (see Figure 4) on
Collet Closer.
5. Locate two pilot holes on lathe to attach
Connector Bracket (see Figure 4 and Figure 5).
6. Using two M6 Socket Head Cap Screws and two
M6 Lock Washers, attach Connector Bracket to
lathe (see Figure 6).
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534
Connector
Rod
Page 3
Figure 5
Figure 6
