31. Proceed to Operation section to identify any
adjustments required to operate the collet
closer. You have now completed the installation
(see Figure 22).

Operation

1. With a piece of material inserted in the collet,
ensure the Collet Closer is in the released
position (see Figure 20), with the collet handle
toward the headstock.
2. Identify Index Pin on Collet Closer's index plate
(see Figure 23).
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534

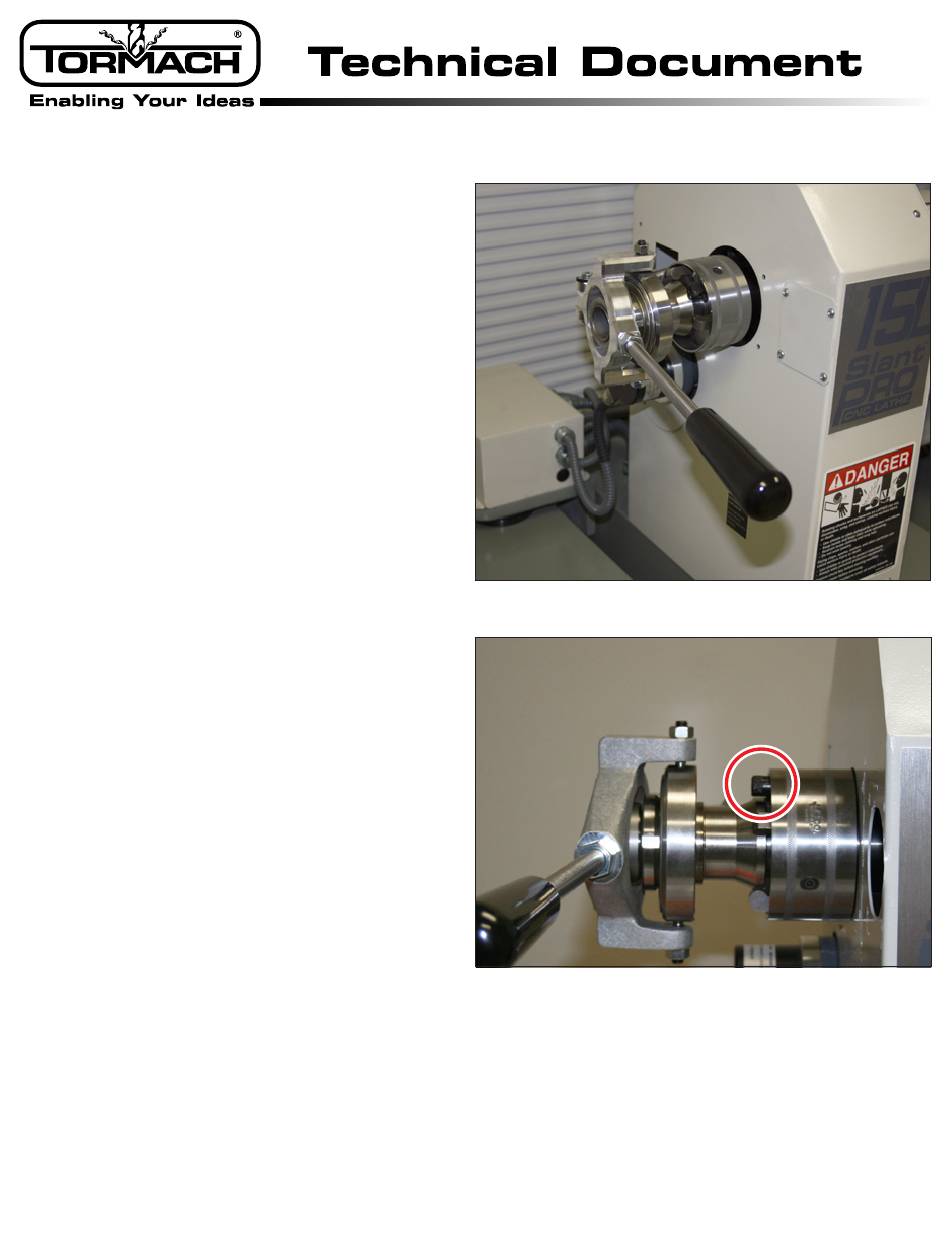

Figure 22
Figure 23
