Tormach Collet Closer 5C Technical Document page 10

Pin In
Figure 24

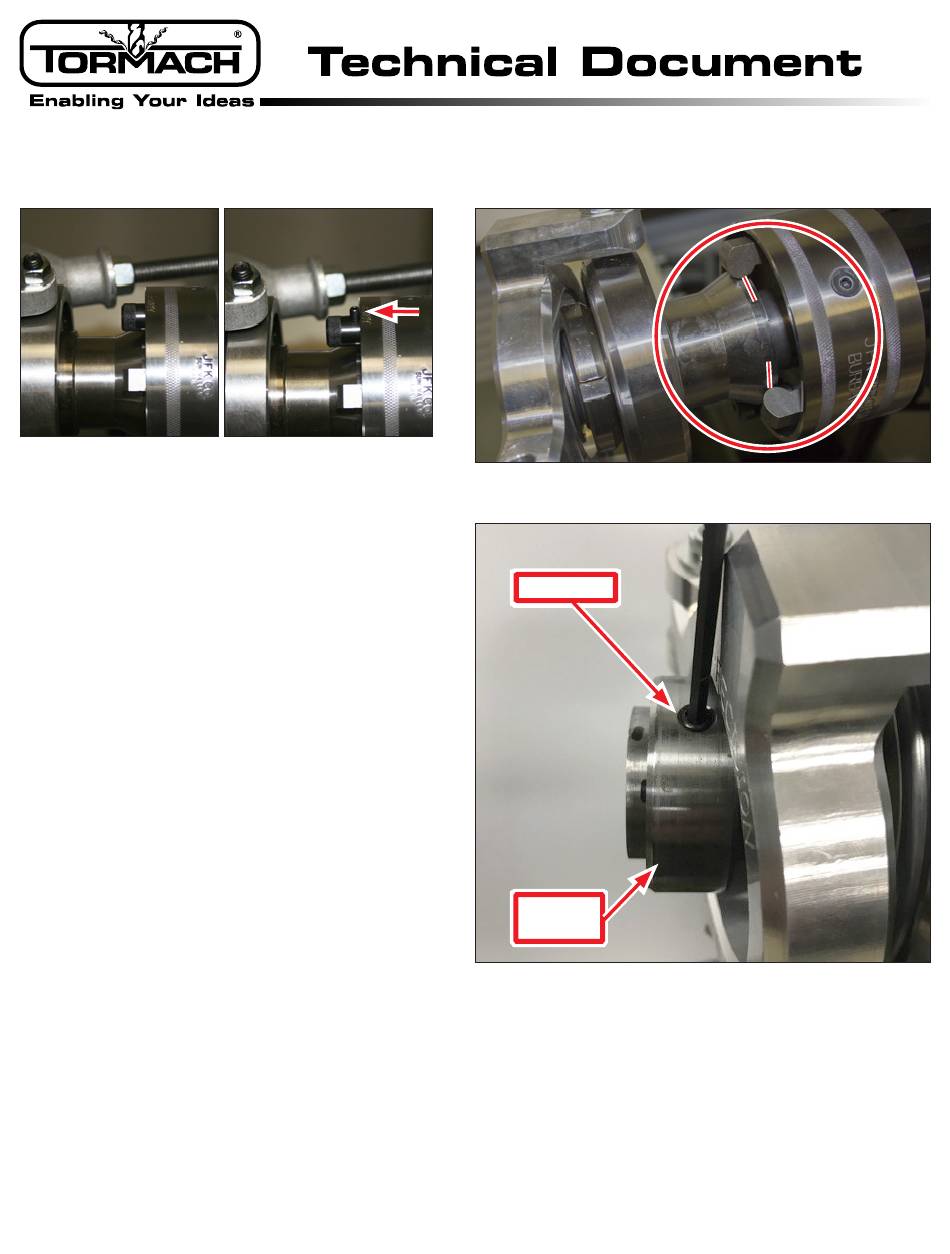

3. Ensure the index pin is in the Pin Out position
(see Figure 24).
NOTE: When the pin is in, the collet closer is in run
mode. When the pin is out, the collet closer is in
adjust mode.
4. Move the collet handle to the locked position
(away from the headstock); ensure cams are
centered on the hub as shown in Figure 25.
If the cams are not centered on the hub:
• Rotate Stop Collar to access Set Screw on
Collet Closer (Figure 26); loosen set screw.
• Slide unit forward or backward until cams
rest in center of hub as shown in Figure 25.
• When adjustment is complete, re-tighten
set screw on Collet Closer's hub.
5. Move the Index Pin to the Pin In position (see
Figure 24) by twisting to release and allowing
it to enter the closest hole in the index plate.
NOTE: If necessary, turn the collar slightly to allow the index pin to seat completely.
6. With the Index Pin in the Pin In position, the collet closer is in run mode. You have now adjusted the collet
closer for operation.
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534
Pin Out
Figure 25
Set Screw
Stop
Collar
Figure 26
Page 10
©Tormach® 2014. All rights reserved.
Specifications subject to change without notice.
TD10249_Collet_Closer_Install_0117A
