Installation - Tormach Collet Closer 5C Technical Document

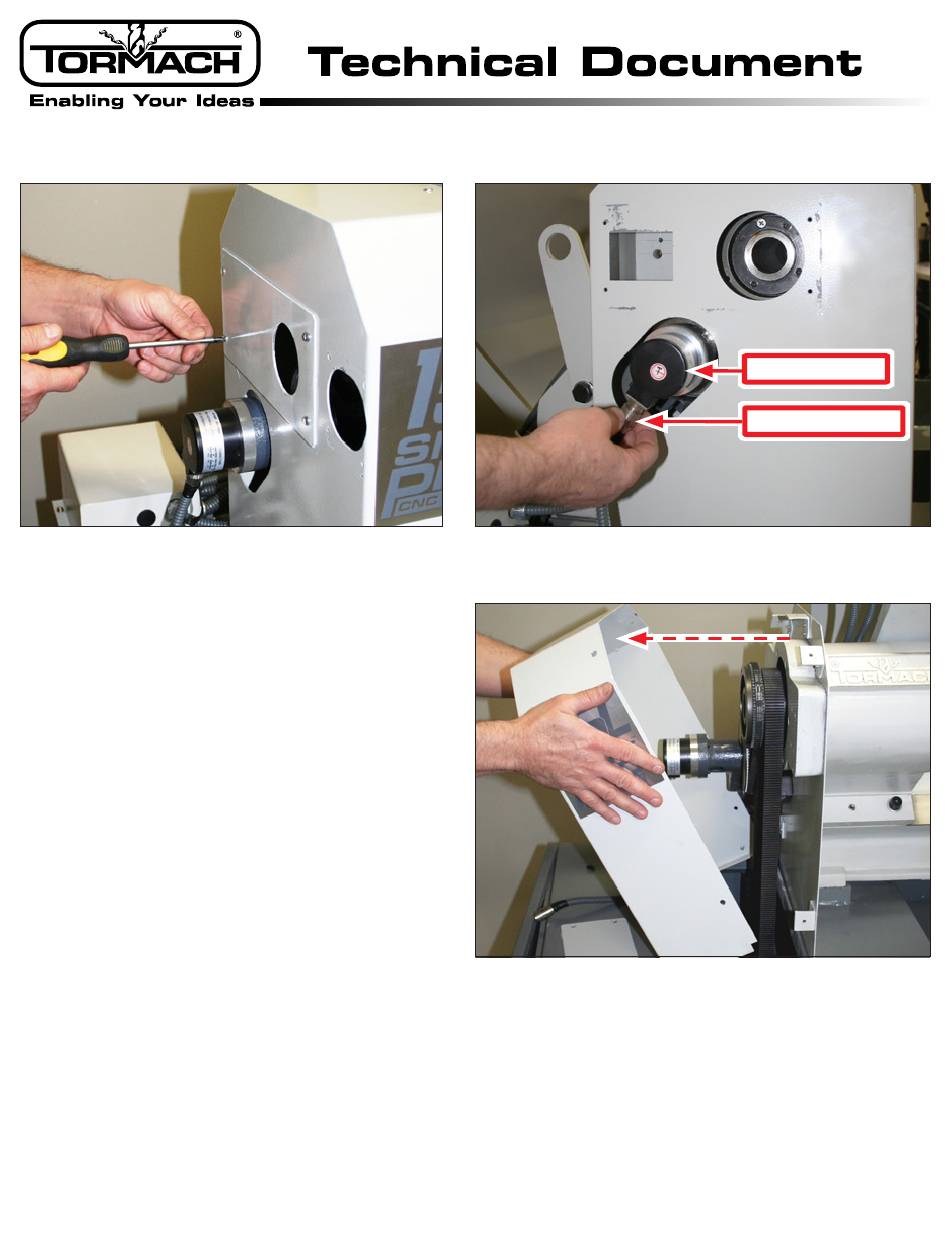

Figure 1

Installation

1. Remove four Phillips-head screws securing
panel to belt guard (see Figure 1); set aside for
future use.
2. Unscrew Power Connector from Rotary
Encoder (see Figure 2).
3. Loosen five Phillips-head screws securing belt
guard cover to lathe; remove cover and set all
aside (see Figure 3).
Tormach Inc.
1071 Uniek Drive, Waunakee, WI 53597
Phone: 608.849.8381 / Fax: 209.885.4534
Figure 2
Figure 3
Page 2
Rotary Encoder
Power Connector
©Tormach® 2014. All rights reserved.
Specifications subject to change without notice.
TD10249_Collet_Closer_Install_0117A
