Ronda Mastertech 8000 Technical Instructions

Xxl chronographs, retrograde and big date
Hide thumbs

Advertisement

Quick Links

Download this manual

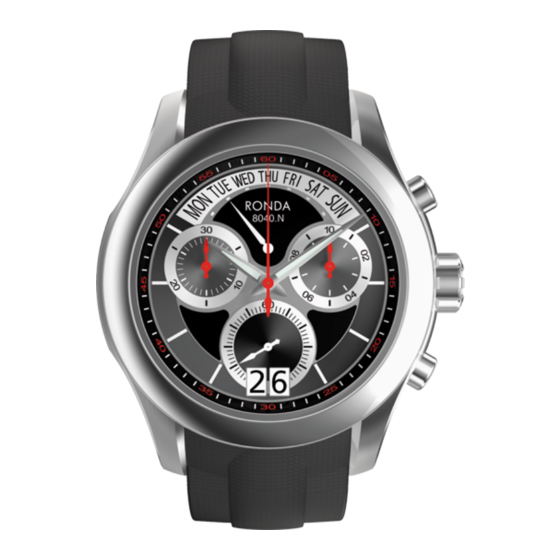

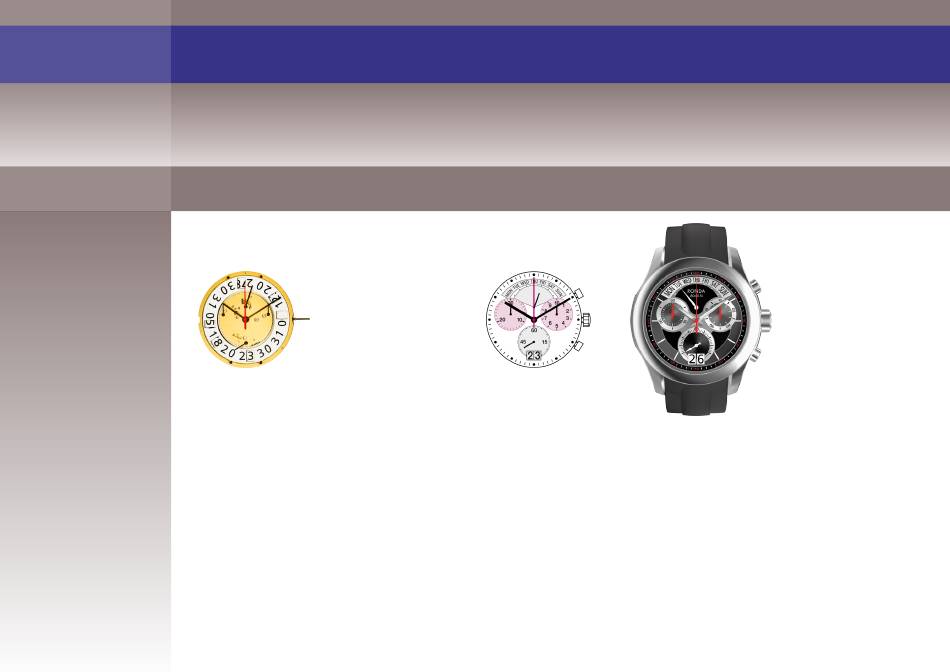

RONDA mastertech 8000
XXL Chronographs,
Retrograde and Big Date
Caliber 8040.N – 15'''
Product Specifications
Analog quartz movement
Line
Caliber
Size
Version
Swiss Made
Standard battery life
Hand fitting height
Features
– Repairable metal watch movement
mastertech
– Very long battery life
8040.N
– Power saving mechanism with pullled out stem: Reduction
of consumption approximately 70%
15'''
– Very easy handling by two pushers
13 Jewels / gold plated
– Big date with quick change
48 months
1
Date: 30.10.2018
www.ronda.ch
Page: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mastertech 8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronda Mastertech 8000

Summary of Contents for Ronda Mastertech 8000

  • Page 1 RONDA mastertech 8000 XXL Chronographs, Retrograde and Big Date Caliber 8040.N – 15''' Product Specifications Features Analog quartz movement – Repairable metal watch movement Line mastertech – Very long battery life Caliber 8040.N – Power saving mechanism with pullled out stem: Reduction...

  • Page 2: Technical Specifications

    Caliber 8040.N – 15''' RONDA mastertech Functions Technical Specifications – Retrograde Diameter Total 34.60 mm – Day indicator Case fitting 33.80 mm – 3 eyes Movement height 5.60 mm – Chronograph Height over standard battery 5.60 mm – Center stop second (1/1 Movement rest 0.60 mm...
  • Page 3 ÄA 5198 Uhrwerkgestell 15''' Released Frame Tolerance +/- 20 µm Scale 10 : 1 (5 : 1) (A3H) Pile Batterie 395 Ø 9.50 x 2.70 Sous réserve de modifications Battery Aenderungen vorbehalten RONDA 8040.N Modifications reserved 14.85 9.72 No. 5000.367...
  • Page 4 Winkel der Drücker A und B 10° Released Angle of pusher A and B Tolerance +/- 20 µm Ø Dp Scale 2.5 : 1 (10 : 1) (A3H) 10° ±2 20° Sous réserve de modifications Aenderungen vorbehalten RONDA 8xxx.x Modifications reserved No. 5000.390...
  • Page 6 0.06 0.80 0.80 0.07 0.03 0.02 0.40 Aenderungen vorbehalten RONDA 8040.N Inertie / Massenträgheit / Inertia max. Modifications reserved Force de chassage / Aufpresskraft / Force max. No. 3316.122 * En cas de données différentes, veuillez contacter le service après-vente...
  • Page 7 Rallonge de tige / Stellwelle Verlängerung / Stem extension Released No. d'article Stem (dimensions / forces) Artikelnummer Tolerance (min) Part number 10:1 (A3) Scale 3000.040 12.00 1.90 2.60 0.90 0.90 1.35 Sous réserve de modifications 8040.B, 8040.N Aenderungen vorbehalten RONDA Modifications reserved 5030.023...
  • Page 8 T2-Instructions 8040.N Fitting dial and hands • Crown in position III • Wind hour hand forwards, until Sunday is displayed in the retrograde window • Crown in position II • Wind crown, until date 02 appears • Crown in position III • Wind hour hand forwards, until date changes to 03 • Remove working hand • Fit dial Movement holder • Set retrograde hand on Sunday Removing setting stem • Point remaining hands towards 12 o’clock H8XXX.1T • Advance time setting to install actual weekday • Set time General Instructions • Zero chronograph hand* Removing the setting stem can only • Crown in position II be effected in Pos. I. • Set date • Crown in position I The use of supporting screws is essential when mounting the hands.
  • Page 9 You have decided to buy a watch, which was assembled by a watch- to stop the timing, press  Stop: maker using a Ronda movement. Please note that no watches are push-button A once more and read the produced or distributed under the Ronda brand. chronograph counters: 4 min / 38 sec / ⁄...
  • Page 10 Rotor 3715.119.RK Rotor 3147.073.CO Intermediate wheel 3147.074.CO Intermediate wheel chrono 3122.067.CO Third wheel 3136.180.CO Chronograph wheel 3136.179.CO Second wheel 3136.178.CO Small second wheel 3004.203.CO Reverse wheel 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 11 4000.250 Screw 3016.029 Stop lever Stop lever held by 1 screw 4000.249. 4000.249 Screw 2130.222 Maintaining plate Maintaining plate held by 1 screw 4000.248. 4000.248 Screw 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 12 2130.206.G.M01.8040N Electronic module cover Electronic module cover held by 4 screws 4000.250. 4000.250 Screw 3600.010.HGF Battery 395 3601.133.G Bridle + Bridle + held by 2 screws 4000.250. 4000.250 Screw 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 13 Yoke (3 positions) 3905.063 Setting lever jumper Lever held by 1 screw 4000.282. 4000.282 Screw 3004.200 Corrector setting wheel 3004.200 Corrector setting wheel 3015.087.CO Setting wheel yoke 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 14 Tens jumper maintaining plate held by 2 screws 4000.279. Tensioning the spring arm. 4000.279 Screw 3301.292.CO Hour wheel 3004.208.CO Date indicator driving wheel 3147.061 Intermediate date wheel 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 15 Date corrector spring held by 1 screw 4000.244. 4000.244 Screw 3905.066 Day rack lever spring Tensioning the spring arm. 3500.068 Date jumper 3500.069 Day jumper Tensioning the spring arm. 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 16 Intermediate Dial support 104. Polished version first. 3506.076.G Dial support 105. 8200 Moebius 8200 106. 9014 Moebius 9014 107. Jismaa 124 108. 9020 Moebius 9020 109. 10/2013 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 17 Setting stem in position III, 60 s measuring interval: 0.10 µA Typical consumption Maximal consumption 0.30 µA Hold down the electrical module to allow the electronic flow. 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1...
  • Page 18 1.68 kΩ .. 1.88 kΩ Coil resistance M4 ∞ kΩ Coil isolation M1/M2/M3/M4 Signal generator (4.9 ms, 8 Hz): Lower working voltage limit 1.20 V M2/M3/M4 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 2...
  • Page 19 Rotor 3715.119.RK Rotor 3147.073.CO Intermediate wheel 3147.074.CO Intermediate wheel chrono 3122.067.CO Third wheel 3136.180.CO Chronograph wheel 3136.179.CO Second wheel 3136.178.CO Small second wheel 3004.203.CO Reverse wheel 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 20 4000.250 Screw 3016.029 Stop lever Stop lever held by 1 screw 4000.249. 4000.249 Screw 2130.222 Maintaining plate Maintaining plate held by 1 screw 4000.248. 4000.248 Screw 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 21 2130.206.G.M01.8040N Electronic module cover Electronic module cover held by 4 screws 4000.250. 4000.250 Screw 3600.010.HGF Battery 395 3601.133.G Bridle + Bridle + held by 2 screws 4000.250. 4000.250 Screw 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 22 Yoke (3 positions) 3905.063 Setting lever jumper Lever held by 1 screw 4000.282. 4000.282 Screw 3004.200 Corrector setting wheel 3004.200 Corrector setting wheel 3015.087.CO Setting wheel yoke 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 23 Tens jumper maintaining plate held by 2 screws 4000.279. Tensioning the spring arm. 4000.279 Screw 3301.292.CO Hour wheel 3004.208.CO Date indicator driving wheel 3147.061 Intermediate date wheel 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 24 Date corrector spring held by 1 screw 4000.244. 4000.244 Screw 3905.066 Day rack lever spring Tensioning the spring arm. 3500.068 Date jumper 3500.069 Day jumper Tensioning the spring arm. 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 25 Intermediate Dial support 105. Polished version first. 3506.076.G Dial support 106. 8200 Moebius 8200 107. 9014 Moebius 9014 108. Jismaa 124 109. 9020 Moebius 9020 110. 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
  • Page 26 Setting stem in position III, 60 s measuring interval: 0.10 µA Typical consumption Maximal consumption 0.30 µA Hold down the electrical module to allow the electronic flow. 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1...
  • Page 27 1.68 kΩ .. 1.88 kΩ Coil resistance M4 ∞ kΩ Coil isolation M1/M2/M3/M4 Signal generator (4.9 ms, 8 Hz): Lower working voltage limit 1.20 V M2/M3/M4 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 2...
