Kramer WAS-3 Quick Start Manual

Congratulations on purchasing your Kramer Wall Plate Inserts (each is supplied with the
required screws)! They are ideal for the following applications: board, conference and training
rooms, presentation systems, and home theater. Each insert can be used with the Kramer
WP Frame or with one of our TBUS products.

WAS-3

The WAS-3 is a dual-insert for s-Video on a
4p connector and unbalanced stereo audio on
RCA connectors (white for L and red for R).

WAS-3P

The WAS-3P is a dual-insert with pass through connectors for s-Video on a 4p
connector and unbalanced stereo audio on RCA connectors (white for L and red for R):
The terminal block PINOUT is as follows:
Left
Ground
Ground
C
Ground
Y
Right

WAS-4

The WAS-4 is a dual-insert for video (composite or SDI) on a yellow RCA connector, s-Video on
a 4p connector, and unbalanced stereo audio on RCA connectors (white for L and red for R).

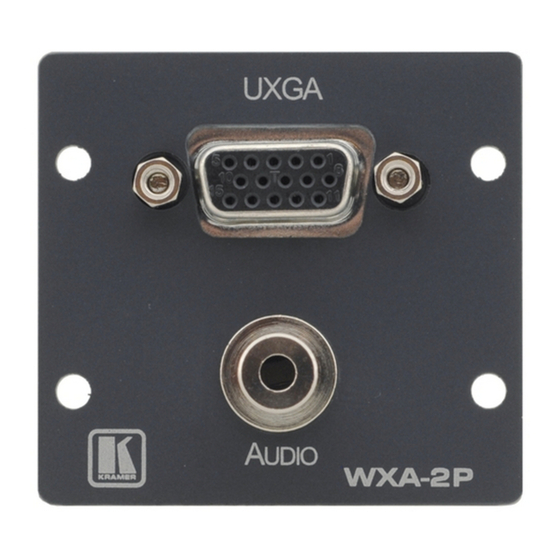

WXA-2

The WXA-2 is a dual-insert for unbalanced stereo audio on a 3.5mm mini plug connector and
UXGA computer graphics on an HD15F connector.
The terminal block PINOUT is as follows:
The terminal block PINOUT
is as follows:
Left
Ground
Right
Ground
Y
CV
C
Ground
