GVIF MODULE SPECIFICATION
GVIF MODULE SPECIFICATION
(Land Rover Prius Lexus etc )
(Land Rover, Prius, Lexus etc.)
support@car-solutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GVIF 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Car Solutions GVIF 5

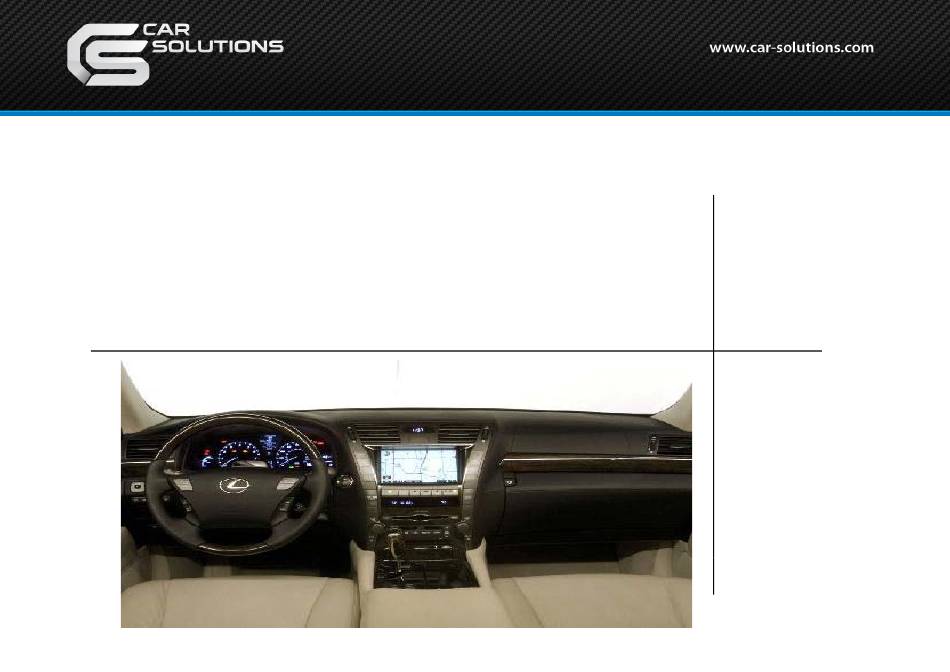

  • Page 1 GVIF MODULE SPECIFICATION GVIF MODULE SPECIFICATION (Land Rover Prius Lexus etc ) (Land Rover, Prius, Lexus etc.) support@car-solutions.com...
  • Page 2: Table Of Contents

    INDEX -. Updated points on this version ………………………………….3 . Updated points on this version ………………………………….3 -. Precaution ……………………………………………………………..4 -. Main Spec. …………………………………………………………..5 -. System Composition ………………………………………………..6 -. Outline Dimension …………………………………………………..7 -. External Appearance ………………………………………………..8 -. Connector Pin Assignment ………………………………………...10 -. CAN Wiring ………………………………………………………..…..12 -.
  • Page 3: Updated Points On This Version

    -Updated points on Rev. 5 -Improved Quality Improved Quality -Auto detection for NTSC, PAL signals (A il bl i L (Available in Land Rover series) -Audio-Sel wires added in Power cable (12V comes out from each selected Audio-Sel wire. Ex) 12V comes out from RGB wire on RGB mode) - Possible to move displayed image’s position in RGB and AV mode.
  • Page 4: Precaution

    -Precaution - You must keep the car key taken off from the car while you work this and finally, connect power of the interface. - When to connect the interface cable, you must keep the power cable taken off. - You must work this at the environment without any static electricity or damages.
  • Page 5: Main Spec

    -Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) -. 3 x A/V Input (External video source). l id -. 1 x CVBS(REAR CAMERA) Input. (Rear camera source) -. 1 x Analog RGB Input (Navigation System output) -. 1 x LCD Input (Car system Input) -.
  • Page 6: System Composition

    -System Composition Switch for source toggle Keypad OEM Navi Button (CAN) NAVIGATION Input (Analog RGB) Car Installation OEM LCD DISPLAY A/V 1 VIDEO MUX O MUX A/V 2 VIDEO CIRCUIT A/V 3 CVBS (Rear camera) Car Screen Input POWER FMTX A/V OUT (CAR MAIN BOARD) HEADREST...
  • Page 7: Outline Dimension

    -Outline Dimension 155mm * 93mm * 20mm 155mm 93mm 20mm support@car-solutions.com...
  • Page 8: External Appearance

    -External Appearance LCD (IN/OUT) DIP S/W KEYPAD POWER POWER MODE MODE RGB(IN) RGB(IN) A/V(IN/OUT) A/V(IN/OUT) support@car-solutions.com...
  • Page 9 -External Appearance Power MODE A/V(IN/OUT) RGB(IN) LCD (IN/OUT) KEYPAD DIP S/W support@car-solutions.com...
  • Page 10: Connector Pin Assignment

    -Connector Pin Assignment *Power Connect *RGB-IN Connect ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① ② ③ ④ ⑤ ⑥ ⑦ ① ① ACC (Red) ② GND (Black) ① R DATA (Red) ③ REAR-C (Grey) ② G DATA (Green) ④...
  • Page 11 -Connector Pin Assignment * Power Cable FILTER & FUSE BOX REAR-C SAFE CAN(H) CAN(H) CAN(L) NAVI Sel AV1-Sel AV2-Sel AV3-Sel -11- support@car-solutions.com...
  • Page 12: Can Wiring

    -CAN Wiring g Green: CAN LOW Y ll Yellow: CAN High * The color of CAN wires coming from the car can be different by each The color of CAN wires coming from the car can be different by each countries that the car import or any other circumstances.
  • Page 13: Dip Switch Setting

    -DIP SW Setting DIP SW Setting ※ ON : DOWN, OFF : UP ※DIP S/W Use Example ※DIP S/W Use Example FUNCTION DIP S/W Selection [Lexus] ON : Skipping RGB Mode RGB INPUT MUTE OFF : RGB Display - Use Input Mode : MAIN + A/V 3 -.
  • Page 14: How To Use Osd Keypad

    -How to use remote Dimension : 85 * 40 * 8 (mm) POWER MENU : OSD Menu OK : Select, Mode change ▲ : Up ▲ : Up ▼ : Down ◀ : Left ▶ : Right *FACTORY MODE (Interface setting) Operated with pressing ▲...
  • Page 15: Osd(On Screen Display)

    -OSD(On Screen Display) p y) · Analog RGB Mode · Video Mode IMAGE Menu - BRIGHTNESS - CONTRAST - SATURATION SATURATION - HUE - SHARPNESS - USER IMAGE USER IMAGE -15- support@car-solutions.com...
  • Page 16 OSD(On Screen Display) p y) · Analog RGB Mode · Video Mode OSD Menu - LANGUAGE : Language selection (only available in English) - OSD TRANS : OSD window transparency setting OSD TRANS : OSD window transparency setting - OSD H_POS : Move of OSD window to Left, Right - OSD V_POS : Move of OSD window to Up, Down -16- support@car-solutions.com...
  • Page 17 OSD(On Screen Display) p y) · Analog RGB Mode · Video Mode UTIL Menu - FACTORY RESET : Initializing OSD setting value -17- support@car-solutions.com...
  • Page 18 OSD(On Screen Display) p y) · Factory Mode -Operated with pressing ▲ -> ▼ -> ▲ ->MENU keys of the remote in sequence. Factory Mode - IMAGE : - H-POSITION : Move of Screen to Left, Right - V-POSITION : Move of Screen to Up, Right - PARK : Referring to the page no.
  • Page 19 OSD(On Screen Display) p y) · Factory Mode -Operated with pressing ▲ -> ▼ -> ▲ ->MENU keys of the remote in sequence. Factory Mode - UTIL : - FMTX ENABLE : FMTX Setting FMTX ENABLE FMTX S - FREQENCY - FACTORY RESET -19- support@car-solutions.com...
  • Page 20: Fmtx Frequency Setting

    -FMTX Frequency Factory Default FMTX USE – ON, FREQENCY – 88.2MHz -Get the Factory Mode Operated with pressing UP->DOWN->UP->MENU keys of t he ke pad in seq ence of t he keypad in sequence -Set “FM-TX USE” to “ON” like the left Set FM TX USE to ON like the left picture (‘ON’...
  • Page 21: How To Use Parking Guide Line

    -How to use parking guide line Factory Default : DISPLAY - ENSABLE ① When the car is in reverse, if ① press ‘UP’ key for 2 sec, the guide line appears on the screen. ② If you need to move the line ②...
  • Page 22: Product Composition

    -Product Composition OSD Keypad Or Remote : 1 EA Power Cable: 1 EA LCD In/OUT Cable : 1 EA A/V Cable : 1 EA RGB C bl RGB Cable : 1 EA 1 EA Ground (IR) Cable : 1 EA d (IR) C bl 1 EA Toggle Switch : 1 EA...
  • Page 23: Installation Structure

    -Installation Structure Original CAN NAVI BOX Monitor Back Side DIP S/W KEYPAD LCD (IN/OUT) GVIF VIDEO INTERFACE POWER MODE RGB(IN) A/V(IN/OUT) AV3-SEL AV2-SEL AV1-SEL NAVI SEL ※ H ※ Hook CAN high wire (White) with k CAN hi h (Whit ) CAN(L) green wire coming from the car.
  • Page 24: Faq

    -FAQ 1. When can not change mode. -. Check if the Ground (IR) cable is connected or not. - Check if LED lamp is turned on or not If it is not turned on Check if power cable is connected or not -.
