Package contents: 1 Reflector, 3 x Brackets, 3 x 8mm Screws, 3 x 6mm Screws
1. Secure the 3 mounting brackets onto the luminaire through 3 pieces of 8mm screws.
2. Align the holes of the reflector with the ones on the the mounting brackets.
3. Fix the reflector by screwing up 3 pieces of 6mm screws onto the mounting brackets.
7/06/2020 page 1
www.day-brite.com
PC Reflector
Installation Instruction
www.cfi-lighting.com

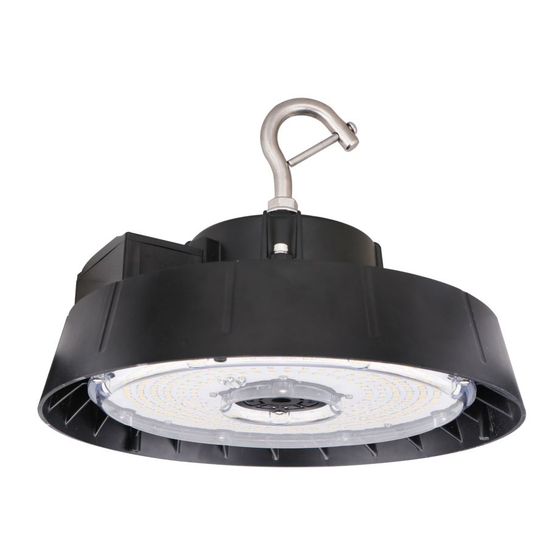

PC Reflector for LED High Bay Light
PC Reflector for LED High Bay Light
HCY-PRSM, PC Reflector for 100W 150W LED High Bay Light
HCY-PRLG, PC Reflector for 200W 240W LED High Bay Light
