Trim Weight System for DSLR & Mirrorless
Housings
Product # 47140
Included in the Box
•
Trim rail
•
Elastic strap
•
Vertical spacer
•
Attachment knob
Important Notices
»
The trim weight system should be detached from the
housing for shipment or travel.
Installation and Use

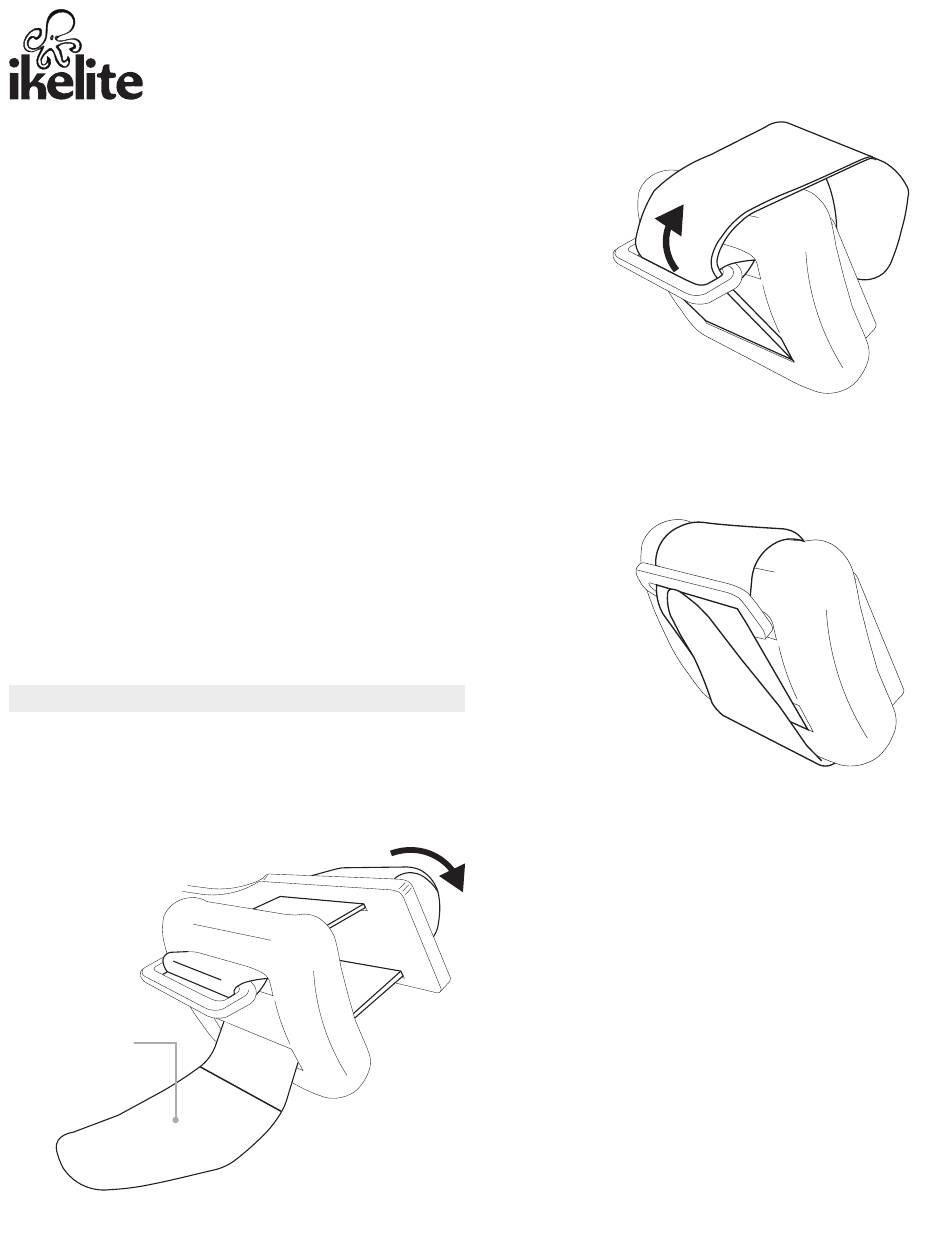

Attaching the Weight
1.
Insert the elastic strap through one slot on the weight with
the rough hooked side of the strap towards the center of
the weight.
2.
Loop the elastic strap through the slots on the trim rail.
Hooked side
3.
Insert the end of the elastic strap through the open slot
on the weight and pull tight.
4.
Thread the end of the elastic strap through the plastic
loop.
5.
Wrap the strap tightly around the weight and attach to
itself.
