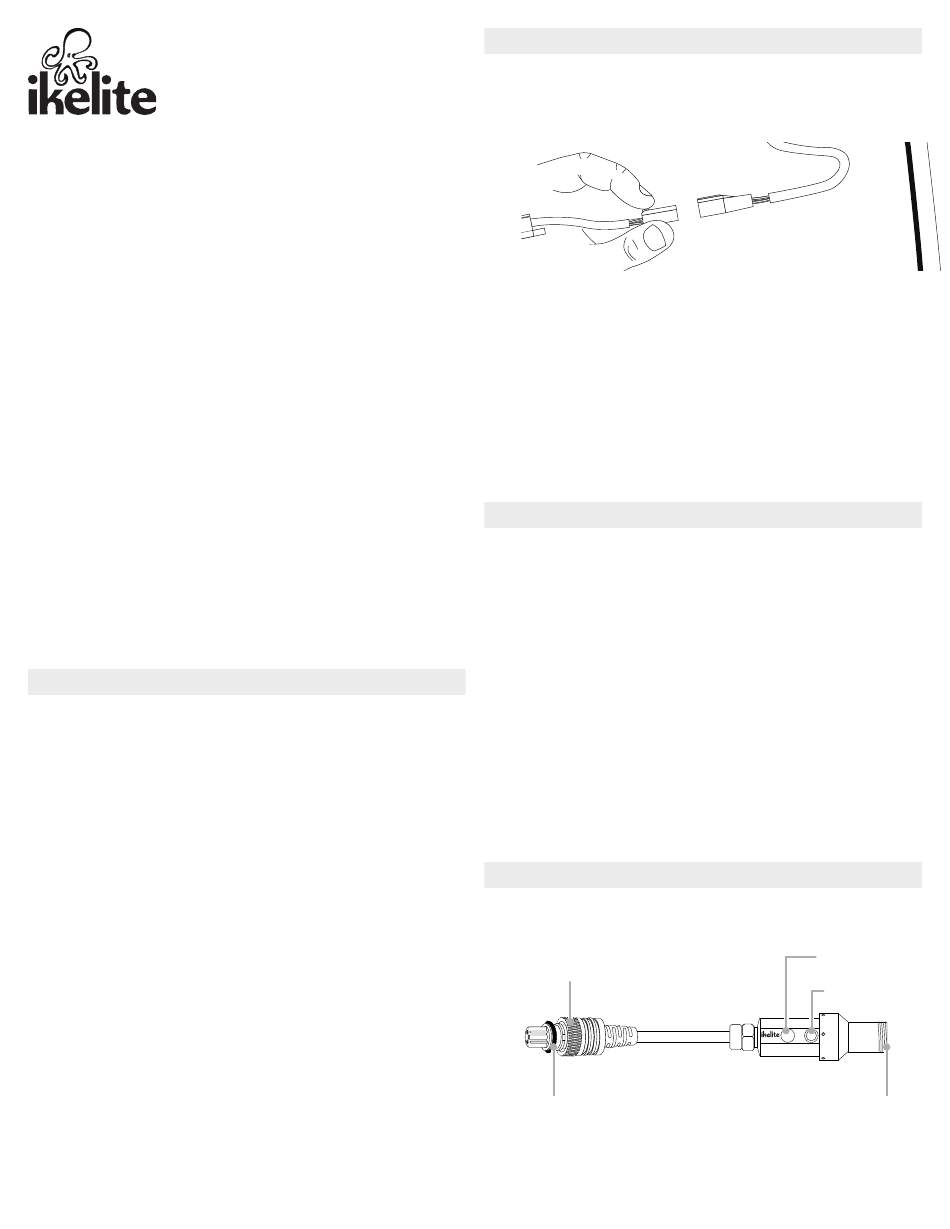

Ikelite 46045 Quick Start Manual

DL2 DS Link Sony TTL Converter Ikelite ST1
Hotshoe and B1A Bulkhead Kit
Product # 46045
Included in the Box
•
DL2 DS Link Sony TTL Converter # 46043
•
ST1 Sony TTL Hotshoe # 46041
Important Notices
The DL2 DS Link is not compatible with other
»
manufacturers' strobes.
Use of two strobes requires a dual sync cord. Two
»
strobes cannot be controlled by individual converters
even if the housing is equipped with two bulkheads.
Installation and Use
Installing the B1A Bulkhead
1. Carefully remove the accessory port plug using an 11/16"
wrench.
2. Remove the nut from the end of the bulkhead with
the cord coming out. Check that the sealing surface
and o-ring on the bulkhead are clean. No lubricant is
necessary.
3. Thread the bulkhead into the 1/2-20 hole in the top of the
housing being careful not to cross-thread.
4. Use an 11/16" wrench to carefully tighten down the
bulkhead just until it touches the case. Do not over-
tighten.
5. Re-attach the nut on the inside of the case. Tighten snug
with a 5/8" wrench.
Installing the ST1 TTL Hotshoe
1. Depress the tab on the manual hotshoe connector and
gently pull connector ends apart to remove the housing's
manual hotshoe.
2. Align TTL hotshoe and bulkhead connector ends and
push together until tab clicks into place.
3. Push hotshoe forward into camera's hotshoe mount.
Make sure that the hotshoe is all the way forward to
ensure proper connection.
The ST1 TTL Hotshoe is only intended for use with
»
compatible Ikelite brand housings.
Testing the Housing
1. Assemble the housing without a camera installed.
Ensure that a waterproof bulkhead cap is in place on the
bulkhead.
2. Submerge the housing in fresh water for several minutes.
3. Remove the housing from water and dry the outside of
the housing with a clean, lint-free cloth.
4. Look through the back of the housing for signs that water
has entered the housing. Signs include fogging or water
droplets.
5. We recommend making at least one dive without a
camera installed to ensure waterproof operation.
Attaching the Converter
1. Remove connector protectors and bulkhead caps from
each connection.
Retaining ring
Plug o-ring
Mode button
LED indicator
MADE
IN USA
DL1 DS LINK
Bulkhead
