TT5 Canon TTL Fiber Optic Transmitter for
DL and DLM Underwater Housings
Product # 44701
Video Tutorial
https://www.ikelite.com/watch-44701
Included in the Box
•
Fiber Optic Transmitter
•
Battery Holder
•
TTL Hotshoe
Important Notices
Requires two (2) CR2032 single-use or rechargeable
»
lithium batteries - not included.
Batteries must be installed correctly with the Battery
»
Holder switch must be in the "ON" position for flash
operation.
This product is not compatible with older Canon DSLR
»
cameras. Refer to camera compatibility on the product
page at ikelite.com.
Fiber Optic Cord Compatibility
•
Ikelite Fiber Optic Cord # 4501
•
INON Optical D Cable "Non-wireless type" L-Connector
•
SEA&SEA Fiber Optic Cable (L-type) # 50107
•
SEA&SEA Fiber Optic Cable II # 50128
•
Olympus UW Fiber Optic Cable PTCB-E02
•
Nauticam Optical Fiber Cable # 26211 Nauticam to INON
•
Nauticam Optical Fiber Cable # 26212 Nauticam to
SEA&SEA
Installation and Use
Installing the Transmitter
1.
Carefully remove the bulkhead or accessory port plug
from the housing.
Remove the nut from the end of the transmitter. Check
2.
that the o-ring on the transmitter and the sealing surface
on the housing are clean.
3.
Very lightly lubricate the visible surface of the o-ring and
the sealing surface of the housing.
4.
Thread the transmitter into the 1/2-20 hole in the top of
the housing being careful not to cross-thread.
5.
Tighten using your fingers only just until it touches the
case. Do not over-tighten.
6.
Re-attach the nut on the inside of the case. While holding
the transmitter in place on the outside of the housing,
tighten the nut snug with a 5/8" wrench
Do not tighten the retaining nut without holding the
»
transmitter in place. Turning the retaining nut can cause
the transmitter to loosen and break the o-ring seal.

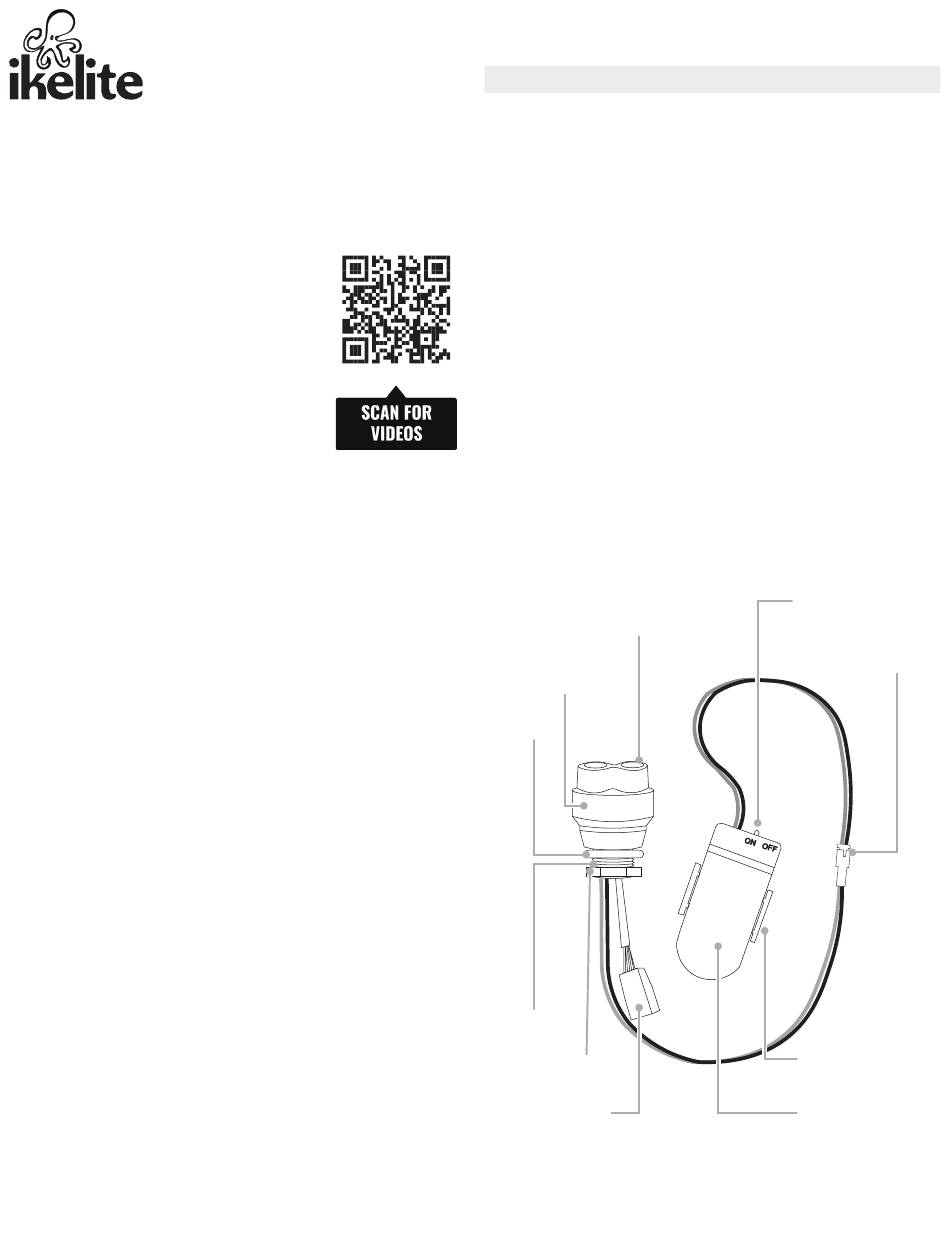

Fiber optic ports
Transmitter
O-Ring
1/2-20
threads
Retaining nut
Connector for
hotshoe
ON/OFF switch
Battery holder
connector
Battery holder
bracket
Battery holder
