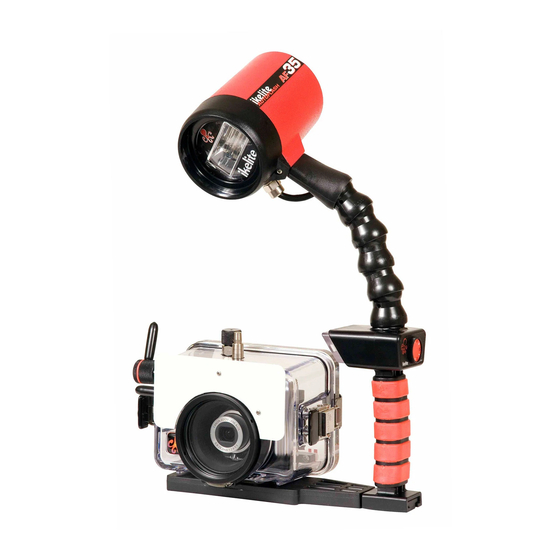

- Page 1 AF35 AutoFlash Instruction Manual 4035 - 4035.1 Thank you for your purchase of Ikelite equipment. Please read this instruction manual completely before attempting to operate or dive with this product. Please refer to the back page of this manual to...
-
Page 2: Table Of Contents
Table of Contents Housing Compatibility ..........P. 3 Included with AF35 AutoFlash Kit ......P. 3 Parts of the AF35 ............P. 4 Specifications ..............P. 5 Battery Compartment ..........P. 4 Opening - Battery Compartment O-ring ......P. 5 Changing the Batteries - Closing the Compartment ..P. 5 AF35 Flash Settings ......P. -
Page 3: Housing Compatibility
Limited Warranty ............P. 23 Returning Products for Service ........P. 23 Product Registration ..........Back Cover Housing Compatibility The AF35 AutoFlash fits Ikelite ULTRAcompact and Compact digital housing styles DC100 and DC200, and most compact digital housings manufactured by Canon, Olympus, Panasonic, and Sony. -
Page 4: Parts Of The Af35
Parts of the AF35 Selector Dial Pop-bead AF35 AutoFlash Flex Arm Sensor Rubber Grip Tray Specifications Firing Modes ......Auto - 6 manual power settings Energy Rating ......35 watt-seconds Coverage Angle ......70° - 80° with diffuser Guide # (ISO 100) feet....28 surface - 16 underwater Guide # (ISO 100) meters ..9 surface - 5 underwater... -
Page 5: Battery Compartment
Keep the o-ring and sealing surfaces clean. Lightly lubricate the exposed O-ring seal appears as solid black line portion of the o-ring with the Ikelite when properly sealed silicone lubricant provided. Changing the Batteries Install four AA-cell batteries: alkaline, NiCad, or NiMH. Refer to the “+”... -
Page 6: Af35 Flash Settings (Off, Auto, Manual)
AF35 Flash Settings To use the AF35 AutoFlash in the Auto or Manual Mode the camera’s built-in flash must be set to fire on every shot as it is used to trigger the AF35 AutoFlash. OFF - Figure 1 shows the AF35... -
Page 7: Af35 Flash Ready Light
AF35 Flash Settings - continued If the subject is overexposed (too light), then you can rotate the mode switch clockwise to reduce the light output of the flash until the desired exposure is obtained. The AF35 provides five reductions in power in 1/2 f-stop increments from the full power setting. -
Page 8: Setting The Auto Exposure Selector Dial
AF35 in the Auto Mode. Repeat this procedure anytime a different camera is used with the AF35 AutoFlash. For advanced users, the Auto Exposure Selector Dial can be used for exposure compensation while remaining in the automatic mode. -
Page 9: Af35 Flash Diffuser
Using Dual AF35 AutoFlashes When using dual AF35 AutoFlashes, determine the optimum Auto Exposure Value for one AF35 AutoFlash as described on page 6, then set the same Auto Exposure Value on the second AF35 selector dial. AF35 Flash Diffuser The flash diffuser adds 10°... -
Page 10: Mounting Ikelite Housing To The Tray
Mounting Ikelite Housing to the Tray Applies to Single or Dual Tray. The AF35 AutoFlash can ONLY be mounted to Ikelite ULTRAcompact and Compact Digital housing models DC-100 and DC-200. Turn the housing so the tray mounting inserts on the bottom of the housing are facing up. -
Page 11: Tray Inserts
Tray Inserts for (Canon, Olympus, Panasonic, Sony & Universal) Applies to Single or Dual Tray. Non-Ikelite housings are CANON A mounted to the OLYMPUS tray with a single bolt. To keep the CANON C camera housing SONY A from rotating on... -
Page 12: Sony Housing Tray Insert Installation
Sony Housing Tray Insert Installation Applies to Single or Dual Tray. Sony housings have 2 different size Base Plates. The Tray Insert marked Sony has 2 different cut-outs. To determine the correct cut-out, place each of the Sony Tray Insert cut-outs against the Sony housing Base Plate as shown below. -
Page 13: Mounting Housing To The Tray
Mounting Housing to the Tray (Canon, Olympus, Panasonic & Sony Housings) Applies to Single or Dual Tray. After the proper Tray Insert is installed, the housing can be mounted to the AF35 tray. Turn the housing so the Tripod Mount on the bottom of the housing is facing up. -
Page 14: Installing Housing Deflectors
AF35 Sensor used to trigger the AF35 Flash. Ikelite Housings Deflectors are supplied with Ikelite housings, see housing instructions for installation. Non-Ikelite Housing Deflector Installation Most Canon, Olympus and Sony digital camera housings have a flash diffuser built on the housing to which the deflector can be attached, see drawing, page 15. - Page 15 Non-Ikelite Housing Deflector Installation - continued 3. Position the loop material (deflector) on the housing to determine where to locate the 2 strips of hook material to secure the deflector to the housing. Cut 2 strips of the hook material to fit on each side or on the top and bottom of the deflector.
-
Page 16: Connecting Af35 Handle To Tray (Single Or Dual)
Connecting AF35 Handle to Tray (single or dual ) The base of the Handle Mount that slides over the Tray Mount has a nylon screw. Note that the tray has a notch for the nylon screw to fit into when the handle is mounted to the tray and the nylon screw is screwed down. -
Page 17: Flex Arm
Flex Arm The AF35 Flex Arm is quite versatile, it allows the flash head to be placed in many different positions for optimal lighting. The flash head is connected to the sensor with a sync cord that runs through the center of the Flex Arm. -
Page 18: Lubricant
Use only enough lubricant to lightly cover the area being applied; wipe off any excess with a clean cloth. Maintenance Your Ikelite AF35 AutoFlash Kit should be given the same care and attention as your other photographic equipment. Routine Cleaning Caution: Make sure the AF35 battery door is on and tightened down before exposing the flash to water. -
Page 19: Battery Compartment Flooding
The water could cause an internal short circuit in the flash at some later date, potentially causing an explosion. 4. Reassemble the AF35 with fresh batteries. 5. After returning from your trip, send the AF35 Kit to Ikelite for inspection and testing. -
Page 20: Troubleshooting
Troubleshooting Problem Solution - Check the AF35 Ready Light. Turn the Flash Strobe will not Fire Mode Switch to OFF and then back to AUTO. Make sure the switch has actually clicked into position. - Check that the batteries are inserted according to the “+”... -
Page 21: Recommendations
This not only helps direct light to the sensor but also aids in reducing backscatter in photographs. Pro-V8 LED Lite The Pro-V8 LED Lite is an easy and affordable way to add light for shooting video and night diving. See website for details and mounting options: www.ikelite.com. -
Page 22: Technical Support
Technical Support Please read the troubleshooting section of this instruction manual before contacting Ikelite Technical Support. Email: ikelite@ikelite.com Phone 317-923-4523 Fax 317-924-7988... -
Page 23: Limited Warranty
The AF35 AutoFlash is warranted against any manufacturing defects for a period of two (2) years from the original date of purchase. Defective products should be returned to Ikelite postage paid. Ikelite will, at its sole discretion, repair or replace such products, and will return to customer postage paid. -
Page 24: Product Registration
Product Registration Please go to www.ikelite.com to register your Ikelite housing within 15 days of purchase. Ikelite Underwater Systems 50 West 33rd Street Indianapolis, IN 46208 USA www.ikelite.com 4035_4035.1_AF35_AutoFlash_06-1012...
