Ikelite 4402 Quick Manual

4402 Universal Fiber Optic Mount
Velcro with adhesive backing
Thank you for your purchase of Ikelite equipment. Please read these instructions completely
before attempting to operate or dive with this product.
This Mount provides an easy way to add fiber optic ports to almost any existing housing. Simply
cut to size and adhere to the top of the housing above the camera's built-in flash. Provides two
ports for the attachment of one or two fiber optic cords. For best results, use in conjunction with
your housing's flash deflector to avoid backscatter.

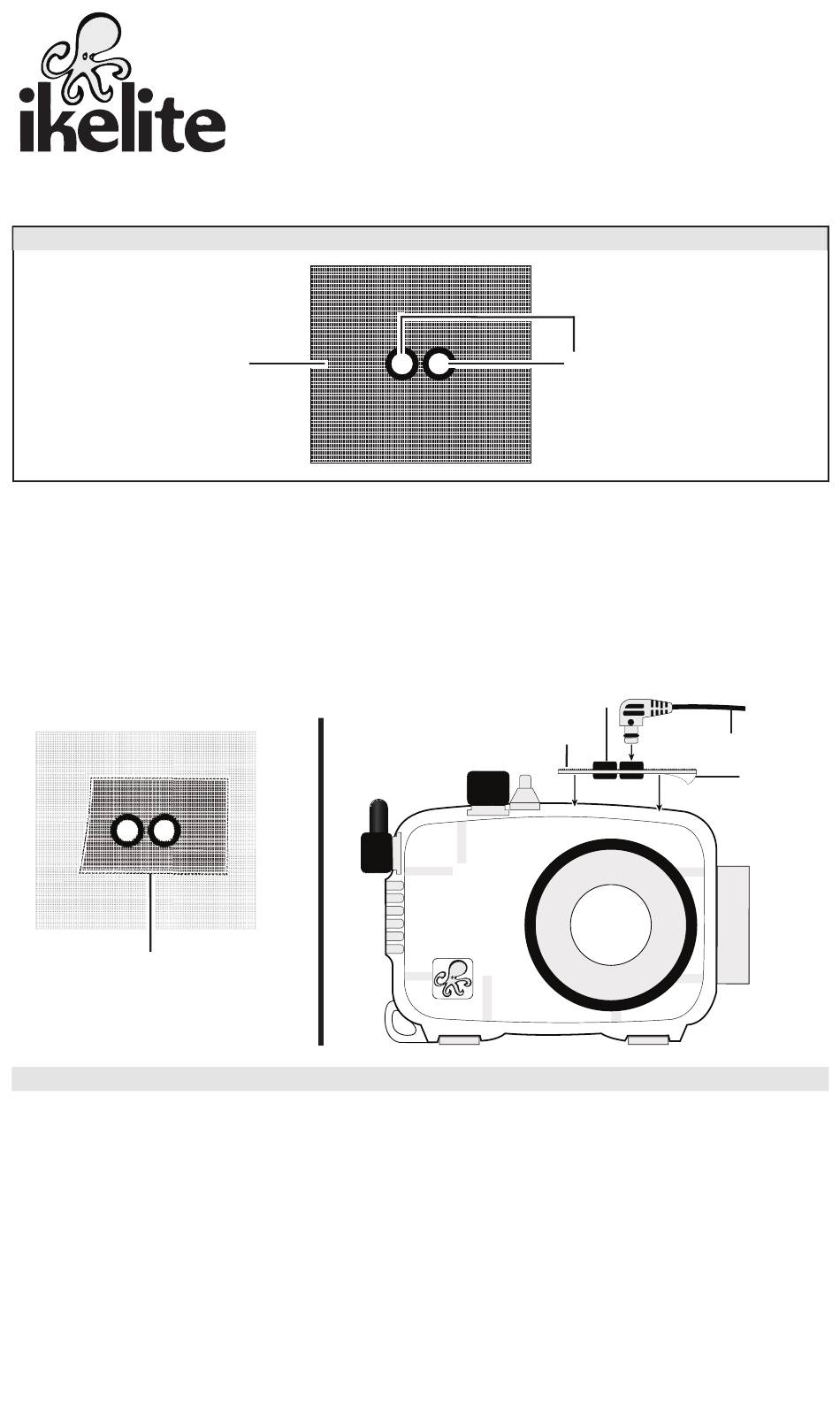

Diagram A
Cut away excess Velcro that
may interfere with camera controls
or functions BEFORE attaching
to camera housing
Attaching Universal Fiber Optic Mount to a Housing
1. Insert one end of a compatible fiber optic cord into one of the two circular port openings in the
Mount on the velcro side. Insert the other end of the compatible fiber optic cord into the
functioning strobe that you intend to trigger.
2. Hold the Mount over the housing where you intend to attach it. Choose an area that will allow
good adhesion and allow the Fiber Optic Cord to easily see the camera flash.
3. With the camera inside the housing, fire the camera flash several times to make sure the
strobe is properly triggered. A properly charged strobe will fire along with each camera flash.
4. Remove the fiber optic cord from the Mount. Using scissors, trim any excess Velcro material
from the Mount which could interfere with housing controls or functions. Note: Only trim what
is necessary to assure good adhesion to the housing - Diagram A.
Contents
Diagram B
Port Mount
Velcro
Universal Fiber Optic Mount
Fiber Optic Cord
Adhesive
Backing
