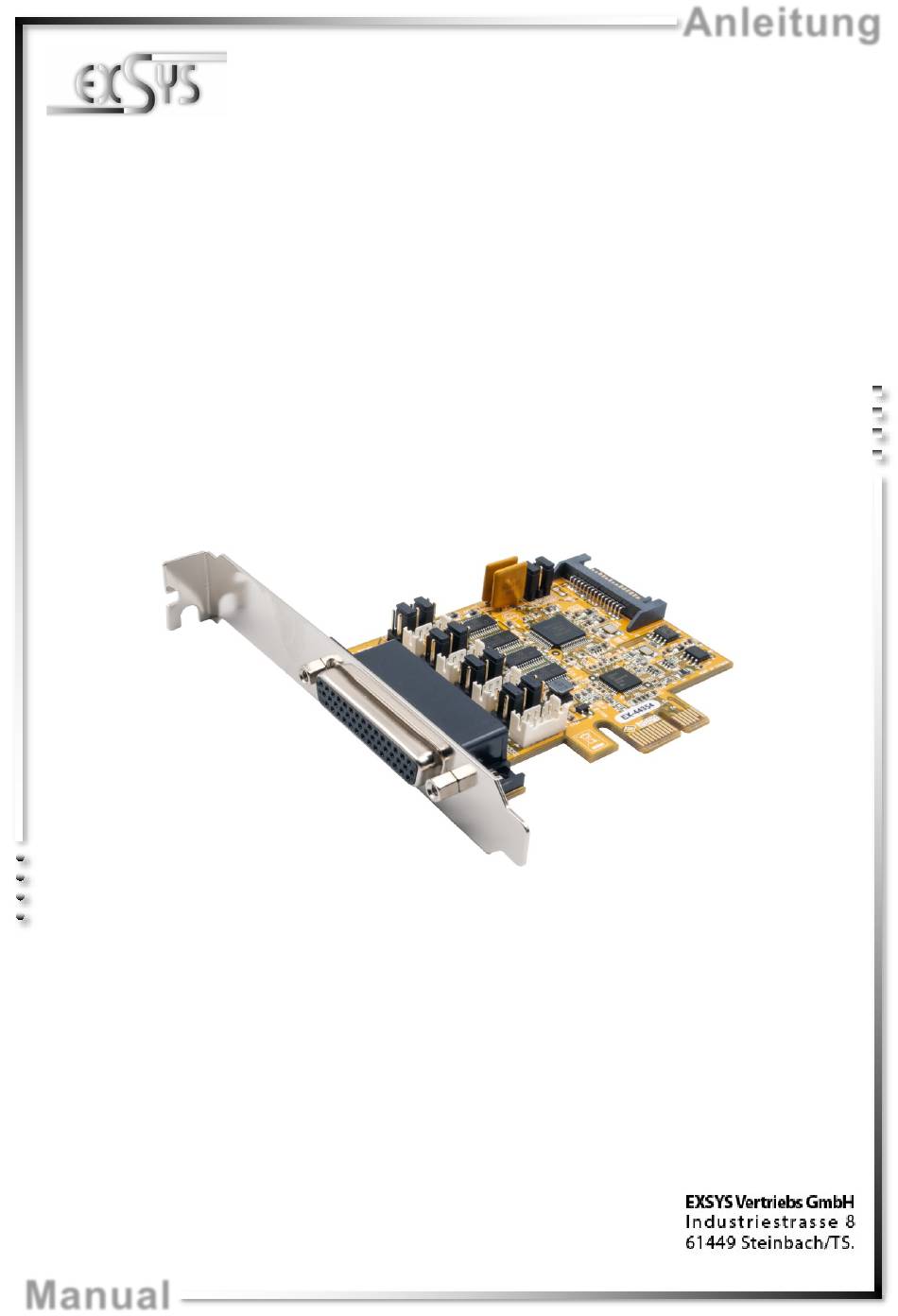

- Page 1 Anleitung EX-44354 RS-232 PCIe Karte mit 4 x 9 Pin Anschluss RS-232 PCIe Card with 4 x 9 Pin Connector Vers. 1.0 / 14.04.20 Manual...
-
Page 2: Table Of Contents
Extent of Delivery ··············································································· 10 Layout and Connections ·································································· 11-12 3.1 Layout ····································································································· 11 3.2 Connections ························································································ 11-12 Jumper Settings ············································································ 12-13 Hardware Installation ··········································································· 14 Driver Installation ··········································································· 14-16 Technical Information ·········································································· 16 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
RS-232 • Windows 200x/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux/ Mac OS • Zertifiziert für 2. Lieferumfang Bevor Sie die EX-44354 in Ihren PC installieren, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-44354 • Oktopus Kabel •... -
Page 4: Aufbau Und Anschlüsse
1 DCD 2 RXD 2 RXD 3 TXD 3 TXD 4 DTR 4 DTR 5 GND 5 GND 6 DSR 6 DSR 7 RTS 7 RTS 8 CTS 8 CTS © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
(Bei Jumper Einstellung AUX5 / AUX12 muss der Stromanschluss (J3) mit dem PC-Netzteil verbunden werden!) AUX5 = 5Volt vom PC-Netzteil (Werkseinstellung) AUX AUX PCI AUX12 = 12Volt vom PC-Netzteil 5V 12V 12V PCI12 = 12Volt vom Mainboard (Werkseinstellung) © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 6 5V P#1 12V P#9 5V +5V auf Pin1 5V P#1 12V P#9 5V +12V auf Pin1 5V P#1 12V P#9 5V +5V auf Pin9 5V P#1 12V P#9 5V +12V auf Pin9 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 7: Hardware Installation
Wenn Sie die Karte installieren, beachten Sie bitte die folgenden Hinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der EX-44354 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsan- leitung Ihres Computersystems. - Page 8 ÄNDERN DER PORT NUMMER Sie können auch die Port Nummer ändern, indem Sie im Gerätemanager z.B. „COM3“ „Anschlusseinstellung“ und „Erweitert“ öffnen. Nun können Sie dann zwischen COM3 bis COM256 wählen! © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 9: Technische Daten
0° bis 55° Celsius Lagertemperatur: -40° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: 5V oder 12V über PCI-Express Slot oder SATA Stromanschluss Abmessung: 100,00 x 54,00 mm Gewicht: 450g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Description
• Windows 200x/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux/ Mac OS • Certificate for 2. Extent of Delivery Before you install the EX-44354 in your PC, you should first check the contents of the delivery: • EX-44354 •... -
Page 11: Layout And Connections
1 DCD 2 RXD 2 RXD 3 TXD 3 TXD 4 DTR 4 DTR 5 GND 5 GND 6 DSR 6 DSR 7 RTS 7 RTS 8 CTS 8 CTS © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Jumper Settings
PC power supply) AUX5 = 5Volt from Power Supply (Factory Setting) AUX AUX PCI AUX12 = 12Volt from Power Supply 5V 12V 12V PCI12 = 12Volt from Mainboard (Factory Setting) © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 13 5V P#1 12V P#9 5V +5V to Pin1 5V P#1 12V P#9 5V +12V to Pin1 5V P#1 12V P#9 5V +5V to Pin9 5V P#1 12V P#9 5V +12V to Pin9 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 14: Hardware Installation
6. Then connect the card with a screw to the rear panel of the computer case. 7. Gently replace your computer’s cover and the mounting screws. 8. Finally, connect the octopus cable to the 44-pin connector of the EX-44354. 6. Driver Installation... - Page 15 If you like to change the port number for example COM3 to COM5, open the „Device Manager” click at „COM3”, „Settings” and then „Advance”. There you can change be- tween COM3 till COM256. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 16: Technical Information
32°F to 55°Fahrenheit Storage Temperature: -40°F to 167°Fahrenheit Rel. Humidity: 5% to 95% Power: 5V or 12V via PCI-Express Slot or SATA Power Connector Size: 100,00 x 54,00 mm Weight: 450g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
