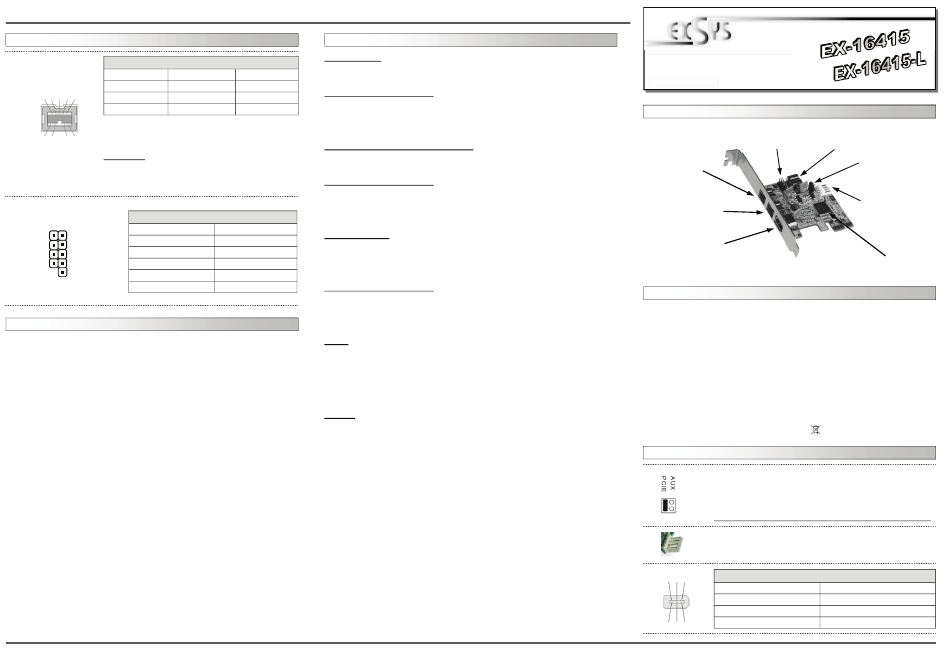

Exsys EX-16415 User Manual

EX- EX EX - - 16415 / 16415 16415 / 16415 / 16415 16415- - - L L L
JUMPER SETTING & CONNECTORS:
J2, J4, J6:
FireWire 1394B 9 pin port:
Pin Signal Pin
1 TPB- 4
9 8 7 6 5
2 TPB+ 5
3 TPA- 6
The Port J2 & J3 are shared so you can always only
1 2 3 4
connect one device at one of the ports
Attention!!!:
Please make sure that you connect the cable in the right
order like shown in the list above. If you connect the cable
wrong it can destroy your hardware! The labelling & marks
on the cable must match with the ones on our card.
J8:
10 Pin FireWire 1394A connector:
Pin Signal
TPA+ TPA-
1 TPA+
GND GND
2 TPA-
TPB+ TPB-
+12V +12V 3 GND
KEY GND
4 GND
5 TPB+
HARDWARE INSTALLATION :
If you are ready with the jumper settings for the EX-16415/16415-L , please proceed with
the following installation instructions. Because the designs of computers are different, only
general installation instructions are given. Please refer your computer's reference manual
whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. If necessary please install now the external power supply to the card like shown at JP1
& J6 above.
4. Locate an available & correct expansion slot ( see compatibility at technical informa-
tion above) and remove its covers from the rear panel of your computer.
5. Align the EX-16415/16415-L with the expansion slot, and then gently but firmly, insert
the card. Make sure the card is seated and oriented correctly.
6. Then connect the card with a screw to the rear panel of the computer.
7. Gently replace your computer's cover and the mounting screws.
5
English English English EX EX- EX - - 16415 / 16415 / 16415 16415 / 16415
DRIVER INSTALLATION :
Windows ME
The drivers are already integrated in Windows and the EX-16415/16415-L will be in-
Signal Pin Signal
stalled automatically.
TPA+ 7 SC
CHECK INSTALLED DRIVER:
TPA (R) 8 POWER
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
GND 9 TPB (R)
new entry's: <Texas Instruments OHCI conform IEEE1394 Host controller>.
If you see this or a similar information the EX-16415/16415-L is installed correctly.
Windows 2000 XP and Server2003
The drivers are already integrated in Windows and the EX-16415/16415-L will be in-
stalled automatically.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entry's: <Texas Instruments OHCI conform IEEE1394 Host controller>.
If you see this or a similar information the EX-16415/16415-L is installed correctly.
Pin Signal
Windows Vista
6 TPB-
The drivers are already integrated in Windows and the EX-16415/16415-L will be in-
7 +12V
stalled automatically.
If you want to use the full performance of the IEEE1394B bus please install Windows
8 +12V
Vista service pack1 it provides the newest IEEE1394B drivers.
9 KEY
CHECK INSTALLED DRIVER:
10 GND
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entry's: <Texas Instruments OHCI conform IEEE1394 Host controller>.
If you see this or a similar information the EX-16415/16415-L is installed correctly.
MAC:
The drivers are already integrated in Windows and the EX-16415/16415-L will be in-
stalled automatically. Only Mac OS 8.6 do need a update before the card can be used.
You can download the update on the Mac OS homepage (e.g. FireWire Support 2.8.x)
If you want to use the full performance of the IEEE1394B bus please install Mac OS X it
is supplied with new IEEE1394B drivers.
In doubt please refer to the installation manual from your MAC OS version !
LINUX:
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction here. Please refer to the installation manual for
IEEE1394 ports from your Linux version !
16415- - - L L L
6
English English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.0 / 15.07.08
AUFBAU :
J8
1x Interne Steckerleiste
Für Front Bay Hubs
J2
1 x 9 Pin 1394B-Buchse
Shared sich mit J4
J6
1 x 9 Pin 1394B - Buchse
J9
1 x 6 Pin 1394A - Buchse
BESCHREIBUNG & TECHNISCHE DATEN :

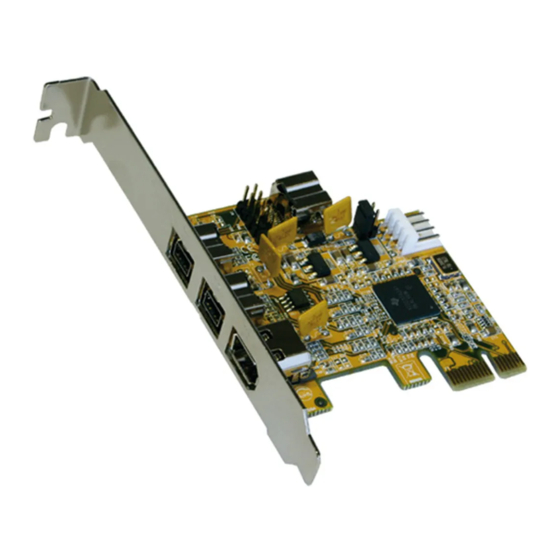

Die EX-16415 / 16415-L ist eine FireWire 1394B PCI-Express Karte. Sie ist mit 3 exter-
nen und 1 internem Port ausgestattet. Sie unterstützt alle PCI-Express Slots von x1 bis
x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des schnellen Texas
Instruments Chip-Sets. Die EX-16415 / 16415-L gewährleistet so eine sichere Daten-
übertragung und exzellente Performance von bis zu 800Mbit pro Sekunde! Es ist nicht
möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der
Karte vom System (BIOS) und beim Installieren des Betriebssystems automatisch vor-
genommen werden. Bei der EX-16415-L handelt es sich um eine LowProfile Karte mit
8cm Bügel für schmale Gehäuse.
Kompatibilität: PCI Express x1 bis x16
Betriebssysteme: ME / 2000 / XP / Server 2003 / Vista / MAC / (Linux vom OS)
Anschlüsse: 2 x 9 Pin extern, 1 x 6 Pin extern, 1 x 9/10 Pin intern
Lieferumfang: EX-16415 bzw. 16415-L , Treiber CD, Anleitung
CE
Zertifikate: / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP1: PCIE = Strom vom PCI-Express BUS (Werkseinstellung)
AUX = Strom vom PC-Netzteil des Rechners
(Zur Entlastung des Mainboards und zur stabilen Stromversorgung bei
Verwendung von Endgeräten mit hohem Stromverbrauch).
Anschluss J6 muss dann mit dem PC-Netzteil verbunden werden!
J11 Wenn JP1 auf AUX gestellt ist muss J6 mit dem Stromanschluss vom
PC Netzteil verbunden werden! Bitte auf die richtige Polarität achten!
Achtung! Stecker nie bei eingeschaltetem PC ein oder ausstecken!
J10:
6 Pin FireWire 1394A Buchse:
2 4 6
Pin
1
2
3
1 3 5
J4
1x Interne 9 Pin Buchse
shared sich mit Port J2
JP1
Stromquelle wählen
PCIE oder AUX
J11
Anschluss für Stecker
vom PC-Netzteil
TI Chip-Set
DE97424562 / WHQL
Signal Pin Signal
Power 4 TPB+
GND 5 TPA-
TPB- 6 TPA+
