Exsys EX-46001 Manual

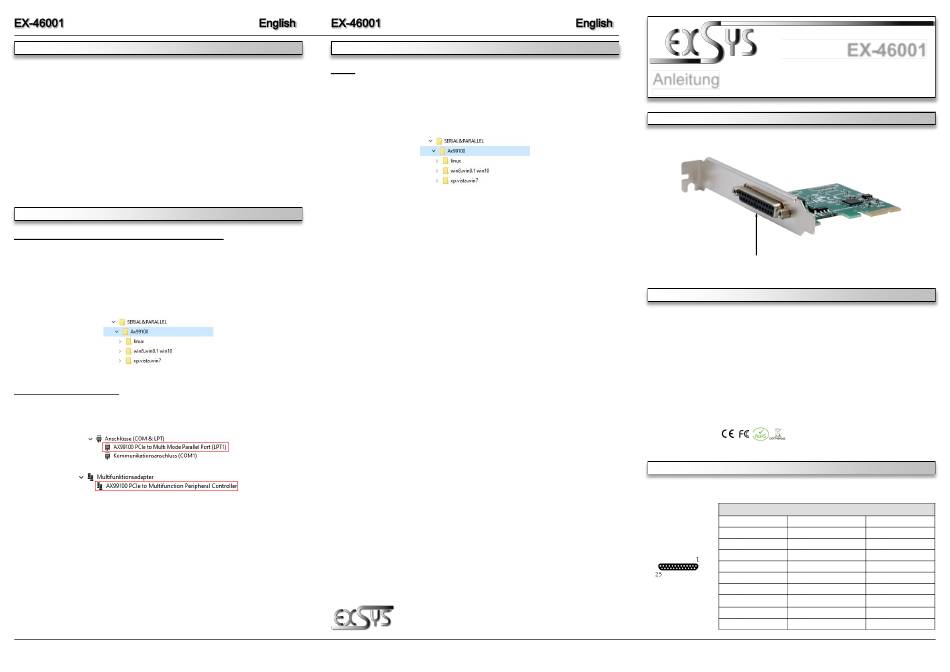

HARDWARE INSTALLATION

Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-46001. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.

DRIVER INSTALLATION

Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx
After the hardware installation is completed, the operating system automatically detects the EX-
46001 and shows you a new „Parallel PCI-Port". Now insert the driver CD into your CD-ROM
drive (e.g. drive D:) and open the folder „SERIAL&PARALLEL/Ax99100". Now select the
folder of your operating system and start the application „AX99100_Setup" which is located in
the respective folder (see picture). Follow the installation instructions and complete the installa-
tion. Important! Restart your PC after the installation.

CHECK INSTALLED DRIVER

Open the >Device-Manager<. Now you should see at „Ports (COM & LPT)" and at
„Mutlifunction adapter" the following new Entries:
If you see these or similar entries, the card is installed correctly.
5
DRIVER INSTALLATION
Linux
After the hardware installation is completed, the operating system automatically recognizes the
EX-46001. Now insert the driver CD into your CD-ROM drive (e.g. drive D:) and open the folder
„SERIAL&PARALLEL/Ax99100". The drivers for your Linux system are located in the „linux"
folder (see picture). Important! Restart your PC after the installation.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.0 / 30.11.22
AUFBAU
1x 25-Pin D-Dub Parallel Buchse
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-46001 ist eine parallel PCI-Express Karte. Sie ist mit einem parallelen SPP/EPP/ECP Bi
-Direktionalen Anschluss für den Anschluss von Peripheriegeräten mit Enhanced Centronics
Interface (z.B. Drucker, Scanner, Laufwerke usw.) ausgestattet. Die EX-46001 unterstützt alle
PCI-Express Slots von x1 bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung
des schnellen Asix Chipsatz. Es ist nicht möglich die I/O Adressen und Interrupts manuell
einzustellen, da die Einstellungen der Karte vom System (BIOS) und beim installieren des
Betriebssystems automatisch vorgenommen werden.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux
Anschlüsse: 1x 25-Pin D-Sub Parallel Buchse
Lieferumfang: EX-46001, Low Profile Bügel, Treiber CD, Anleitung
Zertifikate:
ANSCHLÜSSE
25-Pin D-Sub Parallel Buchse:
25-Pin D-Sub Parallel Buchse
Pin Signal Pin Signal
1 STROBE 10 ACKNOWLEDGE
2 DATA 0 11 BUSY
3 DATA 1 12 PAPER EMPTY
4 DATA 2 13 SELECT
5 DATA 3 14 AUTO FEED
6 DATA 4 15 ERROR
7 DATA 5 16
8 DATA 6 17 SELECT INPUT
9 DATA 7 18 GROUND
1
EX-46001
Pin Signal
19 GROUND
20 GROUND
21 GROUND
22 GROUND
23 GROUND
24 GROUND
INIT 25 GROUND
