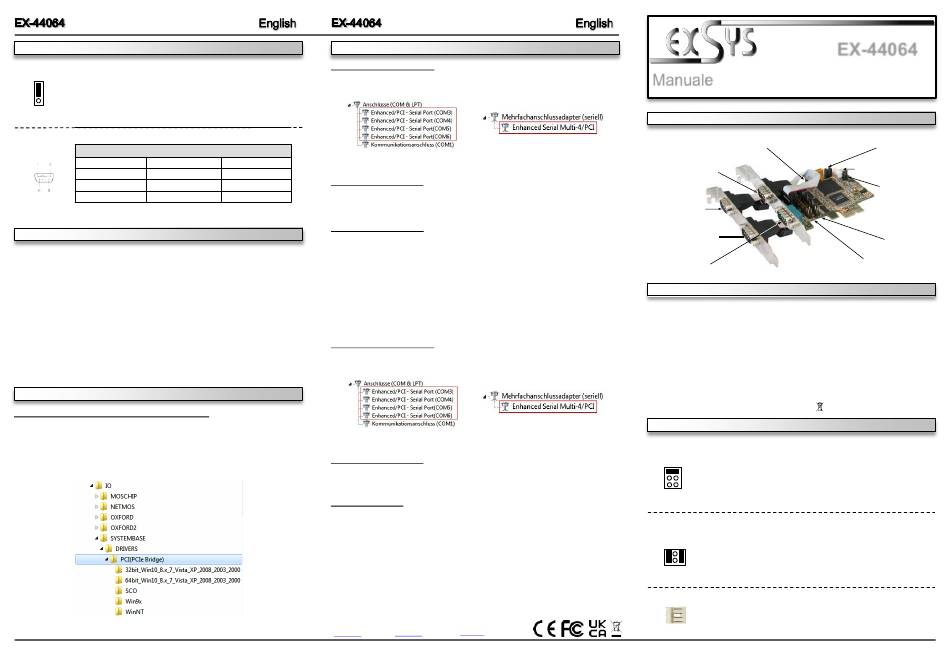

Exsys EX-44064 Manual

JUMPER SETTING & CONNECTORS
JP3:
DIS = The function PME is disable. (Factory Setting)
DIS
ENA = The function PME is enable. Now the card can be activate
—
the computer through the serial ports.
ENA
But this should not be adjusted for standard applications.
DB 9M:
Serial 9 Pin D-SUB Connector
Pin Signal Pin Signal
1 CDC 4 DTR
2 RXD 5 GROUND
3 TXD 6 DSR
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation instructions.
Because there are large differences between PC's, we can give you only a general installation
guide. Please refer to your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/ or sides panels of your Computer and
gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your comput-
er. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make sure
the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows NT 4.0/ 9x/ 2000/ XP/ Vista/ 7/ 8.x/ 10
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD -
ROM drive (eg drive D:) and then open the folder „IO/SYSTEMBASE/DRIVERS/PCI(PCIe
Bridge)". Please select the folder with your operating system and install the driver (see Picture).
Follow the hardware assistant and finish the installation. Important! Restart your PC in any
case after installing the drivers.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and at
„Multifunction Adapter" the following new entry's:
Pin Signal
If you see this or a similar information the device is installed correctly.
7 RTS
CHANGE PORT NUMBER
8 CTS
If you like to change the port number for example COM3 to COM5, open the „Device Manager"
9 RI
click at „COM3", „Settings" and then „Advance". There you can change between COM3 till
COM256.
Windows Server 20xx
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD -
ROM drive (eg drive D:) and then open the folder „IO/SYSTEMBASE/DRIVERS/PCI(PCIe
Bridge)". Please select the folder with your operating system and install the driver (see Picture).
Follow the hardware assistant and finish the installation. Important! Restart your PC in any
case after installing the drivers.
Use the following driver for the following W indows Server Version.
Windows Server 2003
Windows Server 2008
Windows Server 2008R2 =
Windows Server 2012
Windows Server 2012R2 =
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and at
„Multifunction Adapter" the following new entry's:
If you see this or a similar information the device is installed correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the „Device Manager"
click at „COM3", „Settings" and then „Advance". There you can change between COM3 till
COM256.
Linux / SCO Unix
The drivers are located in the following folder on our driver CD:
"IO/SYSTEMBASE/DRIVERS/PCI(PCIe Bridge)/SCO"
Because each individual distribution and kernel version of Linux is different, sadly we cant
provide a installation instruction. Please refer to the installation manual for standard IO ports
from your Unix/Linux version! In some newer versions of Linux the card will even be installed
automatically after starting Linux.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 W angen
www.exsys.de www.exsys.ch
= XP Driver
= VISTA Driver
Windows 7 Driver
= Windows 8.x Driver
Windows 10 Driver
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
6
Manuale
Vers. 1.0 / 12.10.16
STRUTTURA
JP1: Ponticello per la fonte di
JP3: Attivazione/disattivazione del PME alimentazione (alimentatore o bus
PCI Express)
S2: Connettore a 9 pin
Seriale
S4: Connettore a
9 pin Seriale
S3: Connettore a
9 pin Seriale
S1: Connettore a
9 pin Seriale
DESCRIZIONE & DATI TECNICI
L'EX-44064 è una scheda seriale RS-232 PCI-Express con 4 porte seriali FIFO 16C550 per il
collegamento di periferiche seriali RS-232 ad alta velocità (ad es. terminali, modem, plotter
ecc.). Il bus seriale PCI-Express supporta in modo ottimale le prestazioni del veloce chipset
Systembase. La scheda garantisce quindi una trasmissione sicura dei dati e prestazioni
eccellenti fino a 115,2 kbaud/s! Supporta tutti gli slot PCI Express da x1 a x16. Non è possibile
impostare manualmente gli indirizzi di I/O e gli interrupt, poiché le impostazioni della scheda
vengono effettuate automaticamente dal sistema (BIOS) e dal sistema operativo.
Compatibilità: PCI-Express x1 fino a x16
Sistemi operativi: Windows NT 4.0/ 9x/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux
Attacchi: Connettore 4x 9 Pin Seriale D-Sub
Contenuto della confezione: EX-44064, Driver CD, manuale, Staffa per basso profilo x 2
Certificati:
CE / FCC / RoHS / WEEE
DE97424562 / WHQL
IMPOSTAZIONE PONTICELLI & ATTACCHI
S1~S4_PWR:
RI = Sul pin 9 è presente il segnale standard RI (Ring Indicator)
(impostazione di fabbrica)
5
= Sul pin 9 è ora presente una tensione di 5V DC.
RI
5
12 = Al pin 9 è applicata una tensione di 12V DC
12
La tensione viene impostata tramite JP1. Tuttavia, per le applicazioni
standard non è necessario regolare questa tensione.
JP1:
Se il ponticello S1~S4_PWR è impostato su 5 o 12, è possibile impostare
il valore della tensione con il ponticello JP1. Sono disponibili 3 diverse
fonti di tensione.
I12 X12 X5
(Solo in combinazione con S1~S4_PWR impostato su 5 o 12!!!)
X5 = 5 volt dall'alimentatore del PC (impostazione di fabbrica)
X12 = 12 volt dall'alimentatore del PC
I12 = 12 volt dalla scheda madre (impostazione di fabbrica)
J2:
1 +5V
Per l'impostazione AUX (JP1), J2 deve essere collegato
2 GND
all'alimentazione del PC! In caso contrario, la scheda non sarà
3 GND
alimentata
4 +12V
1
EX-44064
J2: Collegamento per
l'alimentazione dal PC
JP2: Solo per
scopi di test
S1~S4_PWR:
Alimentazione al
connettore a 9
pin On/Off
S2~S4-PH:
Connessione seriale interna
