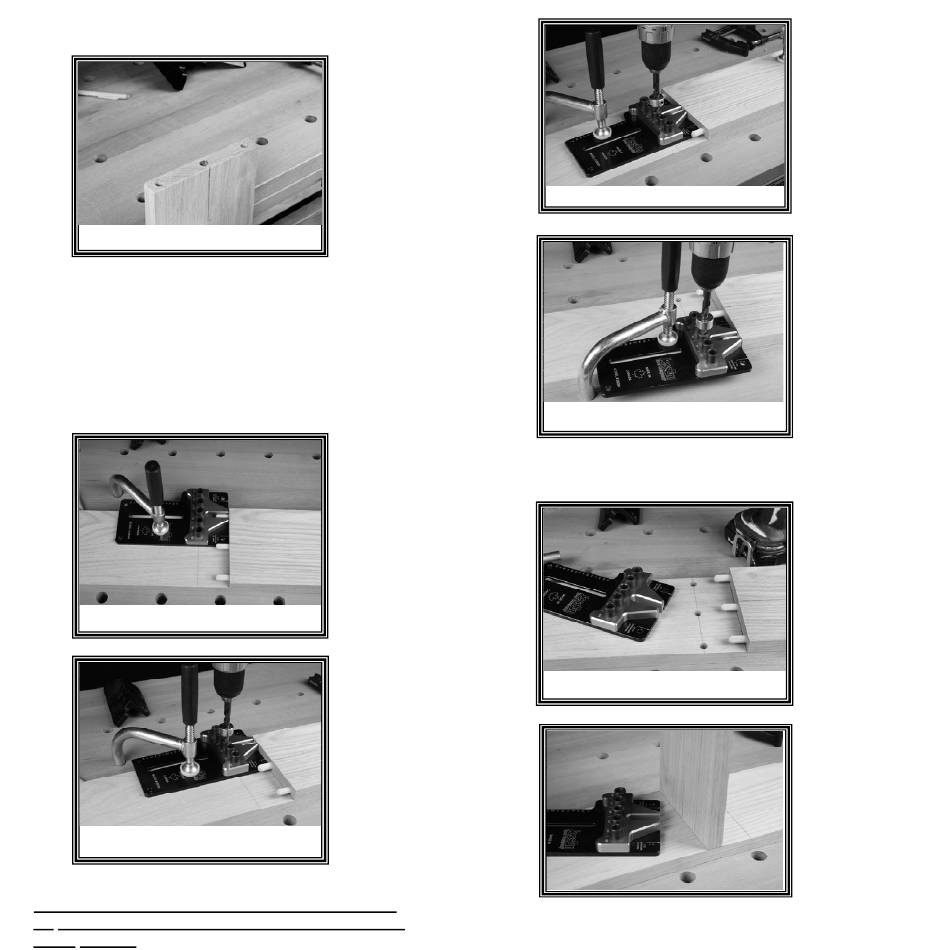

The shelf board is now complete. (See Figure #25)
Figure 25
The distance from the front edge of the jig is 2" from the
centre of the bushings. Mark a line where you want the
dowels and also 2" from this point. Clamp the shelf board
on the 2" line.
Install dowels in the shelf board and using the alignment
slot, align and clamp the jig in position. (See Figure #26)
Figure 26
Figure 27
Drill using the centre bushing and repeat for each location.
(CAUTION: ADJUST THE DRILL BIT DEPTH COLLAR
TO ENSURE NOT TO DRILL COMPLETELY THROUGH
YOUR BOARD. (See Figure 27, 28 and 29)
Figure 28
Figure 29
With the holes drilled, test fit the joint. (See Figure #30)
Figure 30
