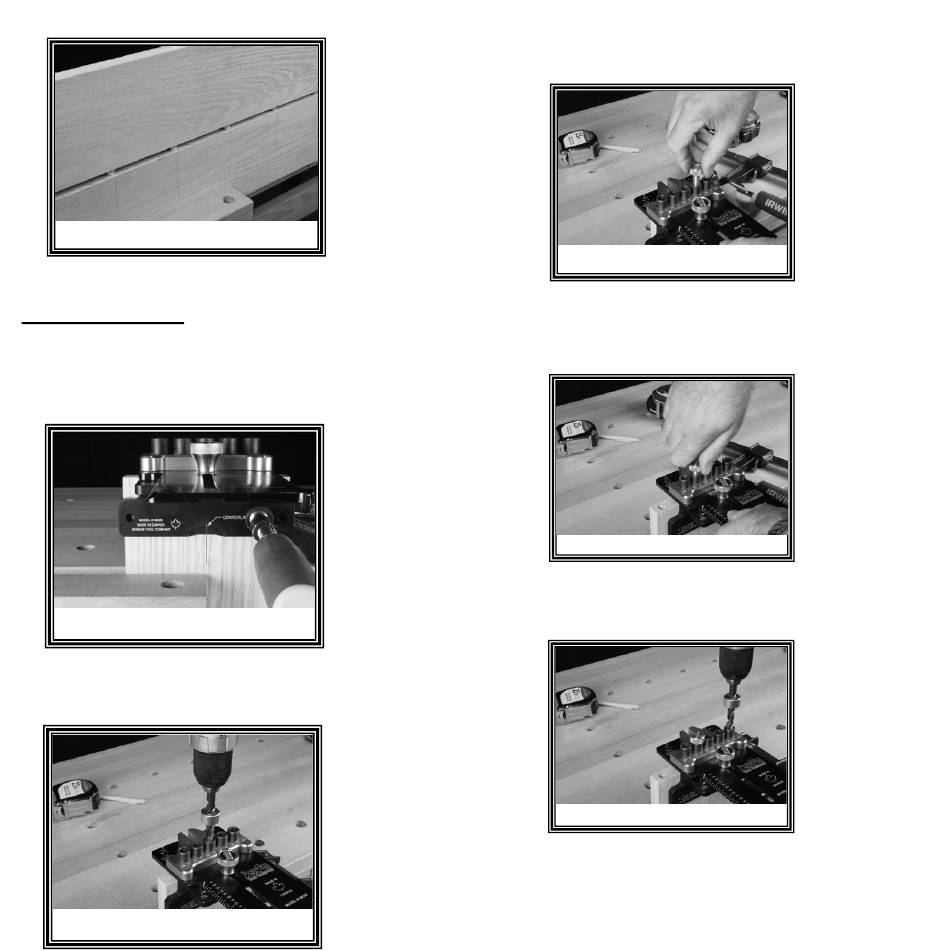

Test fit the joint. (See Figure #19)
Figure 19
Joining a Shelfboard
We are now going to join a shelf board to the mating piece.
We marked a centreline on the shelf and aligned and
clamped the jig in this position. (See Figure #20)
Figure 20
Drill a hole in the centre bushing. (See Figure #21)
Figure 21
We are using the indexing pin in the centre hole previously
drilled to position the jig for the second hole. (See Figure #22)
We are going to drill a hole in the far left bushing.
Figure 22
We are using the indexing pin and the centre hole previously
drilled to position the jig for the third hole. (See Figure #23)
Figure 23
Drill the third hole in the far right bushing. (See Figure #24)
Figure 24
