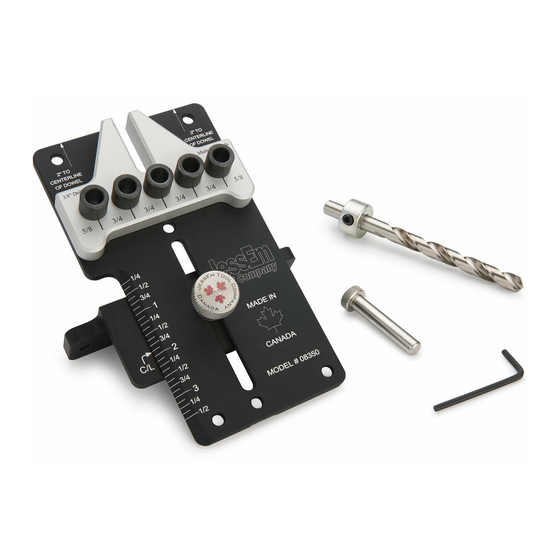

• (1) Dowelling jig.
• (1) 3/8" Drill Bit
• (1) 3/8" Stop Collar
• (1) 3/8" Indexing Pin
• (1) 1/8" Hex Key
DOWELLING JIG
OWNERS MANUAL
Model #08350/ #08350-MK
Contents: #08350-MK
•
•
•
•
•
•
Dowelling Jig
3/8" Drill Bit, (1) ½" Drill Bit, (1) ¼" Drill Bit (1)
3/8" Stop Collar, (1) ½" Stop Collar, (1) Stop
Collar
3/8" Indexing Pin, (1) ½" Indexing Pin, (1) ¼"
Indexing Pin
(5) 3/8" Guide Bushings with mount
(5) ½" Guide Bushings with mount
(5) ¼" Guide Bushings with mount
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JessEm Tool 08350
Summary of Contents for JessEm Tool 08350
- Page 1 DOWELLING JIG OWNERS MANUAL 61 Forest Plain Road Orillia, Ontario, Canada L3V 6H1 Toll Free:1-866-272-7492 Model #08350/ #08350-MK Local: 705-726-8233 Fax: 705-327-0295 Email: jessem@jessem.com Website: www.jessem.com Contents: #08350 Contents: #08350-MK Dowelling Jig • (1) Dowelling jig. • 3/8” Drill Bit, (1) ½” Drill Bit, (1) ¼” Drill Bit (1) •...
-
Page 2: To Our Customers
To Our Customers Thank you for choosing this product from JessEm Tool Company. We appreciate your support and hope that our product serves you well. This product is designed to provide many years of reliable service provided it i s used as intended and taken care of. - Page 5 Setting the Drill Bit Depth Collar: We have predetermined that we want the first row of dowels Usi ng the matching stop collar for the drill bit you are using, screw spaced 3/8" of an inch in from the edge. Loosen the adjustment the ¼”-20 set screw into the stop collar.
- Page 6 We are drilling two (2) holes here. One (1) hole to the left The holes in the first board are now complete. and right of the centre hole. (See Figure #7) Figure 10 Figure 7 We follow the same procedure to drill the holes in the Now adjust the jig to the 1-3/8”...
- Page 7 With all of the holes drilled in the first board, clamp this With the drilling completed in the second board, all we board to the mating board with the edges lined up and install the need to do is test fit the joint. (See Figure # 13) dowels in the holes previously drilled.
- Page 8 We are using the indexing pin in the centre hole previously Test fit the joint. (See Figure #19) drilled to position the jig for the second hole. (See Figure #22) We are going to drill a hole in the far left bushing. Figure 19 Figure 22 Joining a Shelfboard...
- Page 9 The shelf board is now complete. (See Figure #25) Figure 28 Figure 25 The distance from the front edge of the jig is 2” from the centre of the bushings. Mark a line where you want the dowels and also 2” from this point. Clamp the shelf board on the 2”...
-
Page 10: Warranty Limitations
Contact JessEm for a warranty claim return authorization and instructions to proceed. The consumer is responsible for shipping costs to return product to JessEm Tool Company. We will repair or replace the product at our discretion and JessEm Tool will return shipment to you at no charge. - Page 11 Other Products From JESSEM TOOL COMPANY Mast Lift Excel II ™ Mast Lift™ II Model # 02202 Model #02120 Rout Lift™ II Clear Cut Stock Guides Model # 02310 Model # 04215 Tools That Make A Difference! www.jessem.com...
