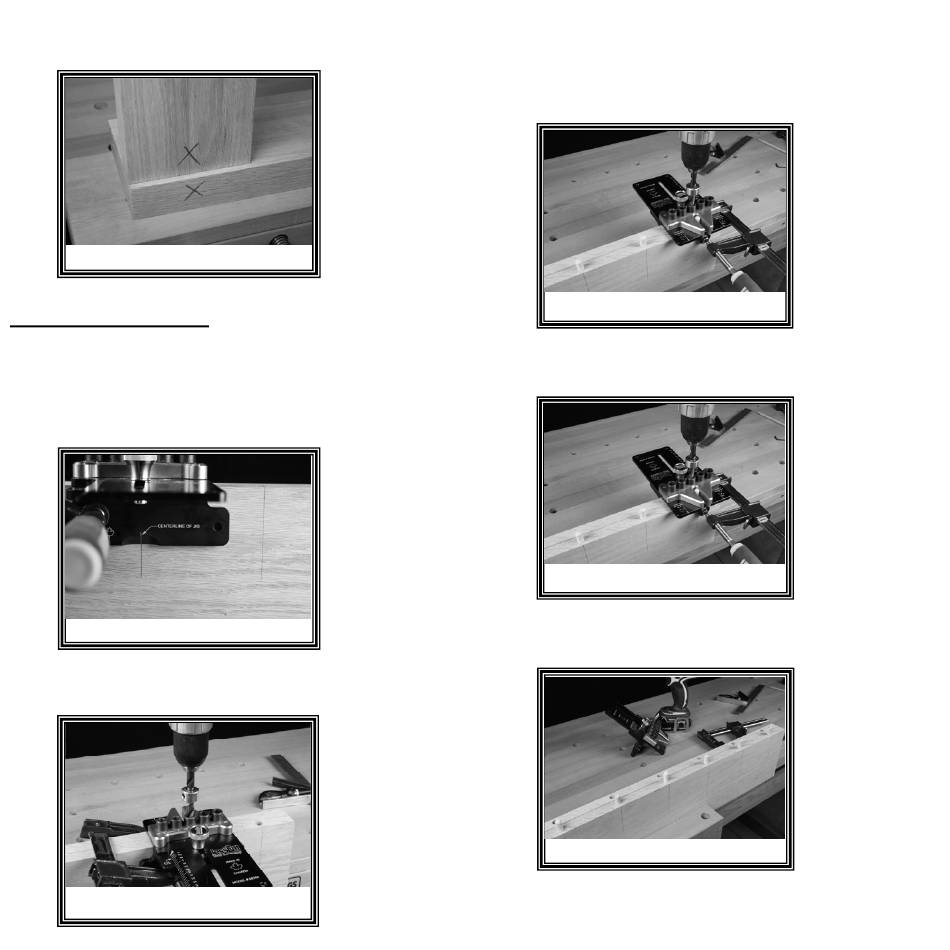

With the drilling completed in the second board, all we
need to do is test fit the joint. (See Figure # 13)
Figure 13
FLUSH JOINING BOARDS
The next joint we are showing is the joining of two boards
to make a larger panel. Mark the lines on the board
where you would like to place the dowels and clamp the
jig centreline to the board on this line. (See Figure #14)
Figure 14
Now, drill a hole in the centre bushing. (See Figure #15)
Figure 15
With all of the holes drilled in the first board, clamp this
board to the mating board with the edges lined up and install the
dowels in the holes previously drilled. Using the alignment slot in the
jig, you can align the jig on the mating board using the dowels in the
first board and clamp in this position. (See Figure #16)
Figure 16
Drill a hole in the centre bushing and repeat for all of the
holes.
Figure 17
All of the holes are now drilled. (See Figure #18)
Figure 18
7
