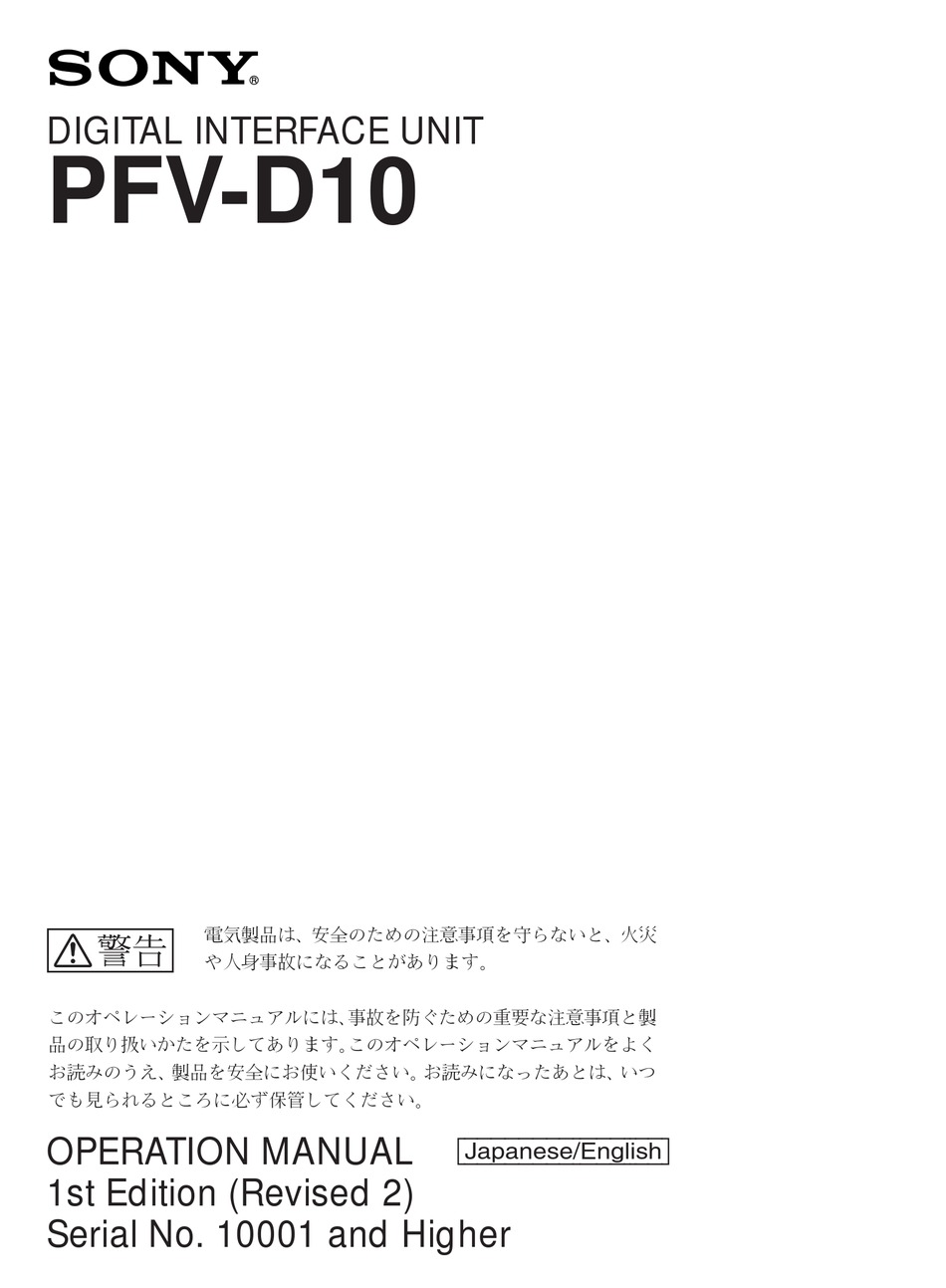

- Page 1 DIGITAL INTERFACE UNIT PFV-D10 電気製品は、安全のための注意事項を守らないと、火災 警告 や人身事故になることがあります。 このオペレーションマニュアルには、 事故を防ぐための重要な注意事項と製 品の取り扱いかたを示してあります。 このオペレーションマニュアルをよく お読みのうえ、 製品を安全にお使いください。 お読みになったあとは、 いつ でも見られるところに必ず保管してください。 OPERATION MANUAL [Japanese/English] 1st Edition (Revised 2) Serial No. 10001 and Higher...
- Page 3 Using this unit at a voltage other than 120 V may require the WARNING use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to To prevent fire or shock hazard, do not expose the unit to qualified service personnel.
-
Page 4: Table Of Contents
Table of Contents For the customers in Europe Overview ............... 3(E) This product with the CE marking complies with both the Features ............3(E) EMC Directive (89/336/EEC) and the Low Voltage Directive Optional Boards ..........3(E) (73/23/EEC) issued by the Commission of the European Location and Function of Parts ...... -
Page 5: Overview
Select boards with the required functions, and install optional board is installed into the slot, the power is them in slots of the PFV-D10. supplied from the PFV-D10 to the board, and the function of the board is activated. Select the BKPF-101A/101P A/D Converter Board... - Page 6 Overview BKPF-106P Audio/Video Demultiplexer Board BKPF-132B/132BP Encoder Board (PAL Composite) This board converts a component serial digital video This board demultiplexes a composite serial digital signal into a composite analog video signal video signal and AES/EBU-format digital audio synchronized with a reference video signal. signals from a serial digital signal.
- Page 7 BKPF-301 Analog Video 8 × 2 Selector This board is a selector of analog video signals. BKPF-350 Digital Analog 8 × 2 Selector This board is a selector of AES/EBU format digital audio signal. BKPF-351 Analog Audio 8 × 1 Stereo Selector This board is a selector of analog audio signals.
-
Page 8: Location And Function Of Parts
BKPF-300- negative side. series board that requires an S-BUS protocol input to May flash in green in the following cases: the PFV-D10 is installed. • The rotation of the ventilation fans slows down drastically. 7 y (signal ground) terminal •... -
Page 9: Specifications
Specifications Power requirements 100 to 240 V AC, 50/60 Hz Current drain 100 V: 0.8 A, 240 V: 0.4 A Power supply capacity +5 V DC: max. 2.4 A –5 V DC: max. 2.4 A Peak inrush current (1) Power ON, current probe method: 12 A (240 V) (2) Hot switching inrush current, measured in accordance with European standard EN55103-1:... - Page 11 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any...
