User Analogs

On the Monitor > User Analogs menu, you can monitor all analog inputs. The most recent
measurement will be shown, and any alarm thresholds crossed will be shown in shown in either orange
for minor alarms or red for major alarms.

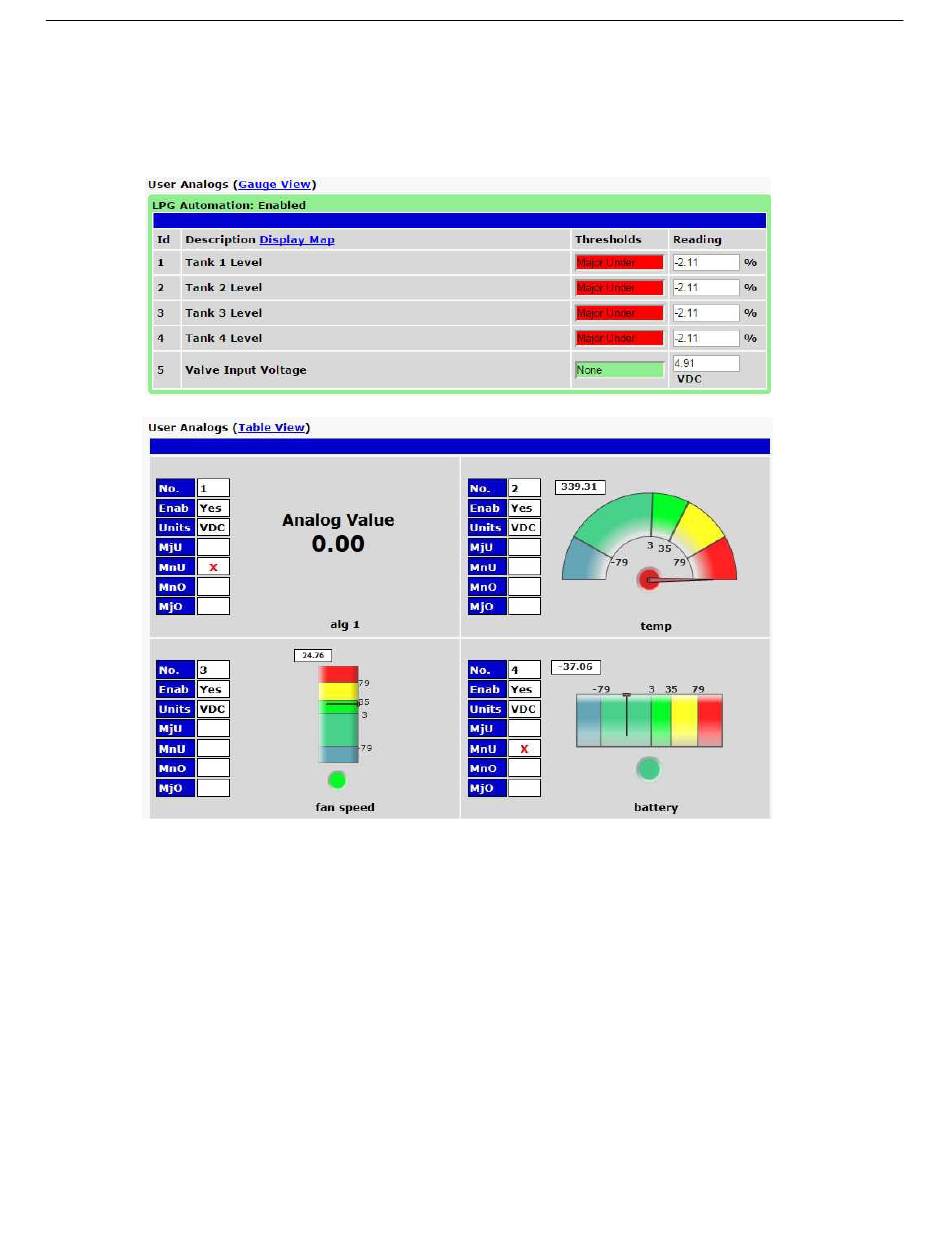

Fig. 12.5 Current status of all analog inputs in the Monitor > User Analogs in Table View.
Fig. 12.6 Current status of all analog inputs in the Monitor > User Analogs in Gauge View.
Note: The analog gauges do not account for the user definable Deadband. This may result in an alarm threshold to
appear crossed in the gauge animation when the point has not set or cleared.
