User Analogs

The NetGuardian LPG Controller's 4 analog inputs measure continuous ranges of voltage. Analog alarms are
typically used to monitor propane tank level readings. To configure a user analog, simply fill in your description,
thresholds, and other fields listed in the table below, then click Save.
Note: An analog channel must be enabled for it to be analyzed by the automation process.
Default monitoring to
gauge view
Enab (Enable)
Description
Rev
Notifications
Record Freq
Deadband
Units

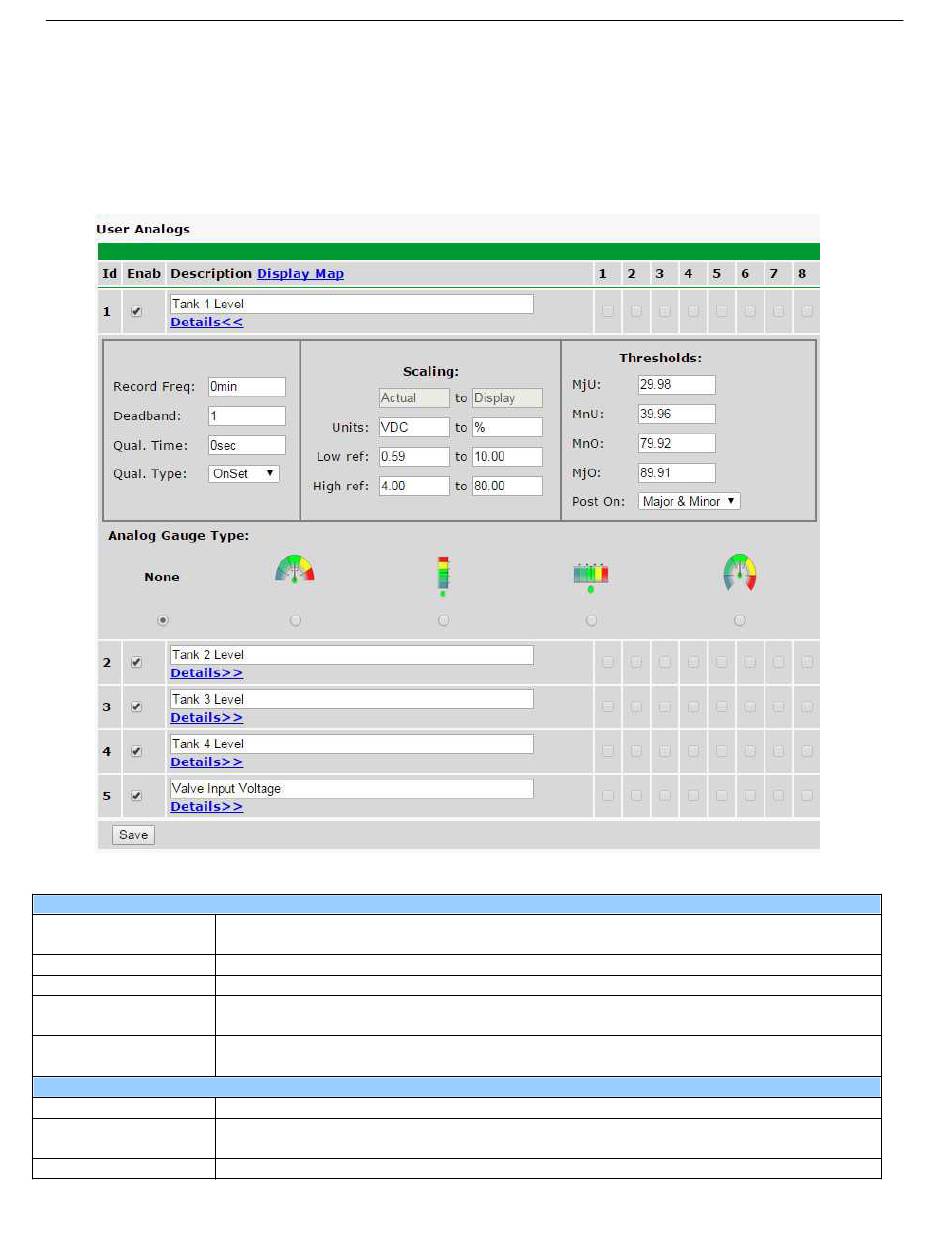

The Provisioning > User Analogs menu
Checking this box sets the default view in the Monitor>User Analogs menu to the gauge
view.
Checking the box in the Enab column enables monitoring of the analog channel.
User-definable description for the analog channel
Checking the reverse button changes negative values to positive, and positive values to
negative.
Check which notification device(s), 1 through 8, you want to send alarm notifications for
this analog input.
The frequency with which the NetGuardian will record the analog reading.
The additional qualifying value the NetGuardian requires above/below your alarm thresholds
in order to set an alarm.
The unit(s) of measurement reported by a connected analog input.
