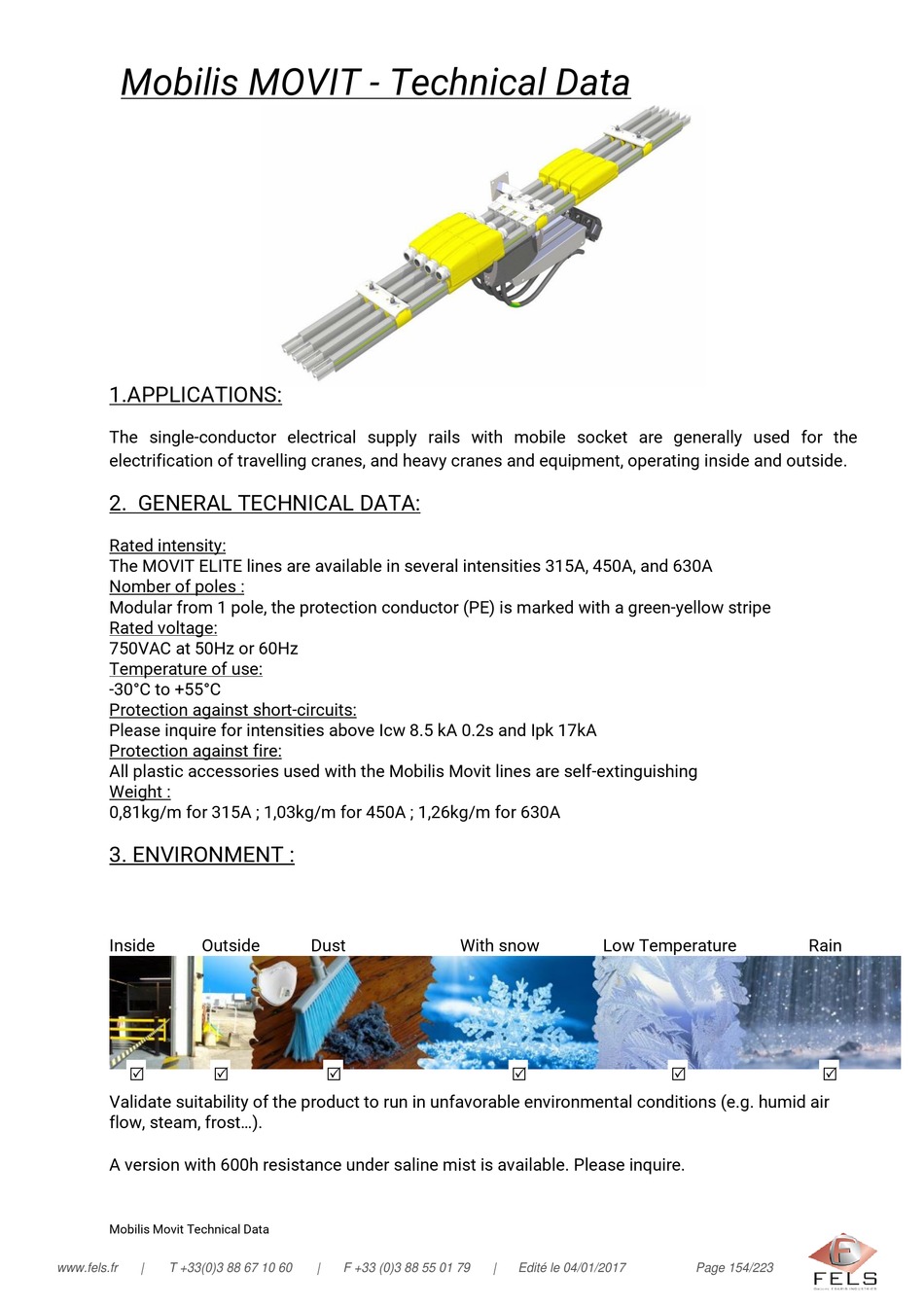

Fels Mobilis ELITE Manual page 154

Mobilis MOVIT - Technical Data
1.APPLICATIONS:
The single-conductor electrical supply rails with mobile socket are generally used for the
electrification of travelling cranes, and heavy cranes and equipment, operating inside and outside.
2. GENERAL TECHNICAL DATA:
Rated intensity:
The MOVIT ELITE lines are available in several intensities 315A, 450A, and 630A
Nomber of poles :
Modular from 1 pole, the protection conductor (PE) is marked with a green-yellow stripe
Rated voltage:
750VAC at 50Hz or 60Hz
Temperature of use:
-30°C to +55°C
Protection against short-circuits:
Please inquire for intensities above Icw 8.5 kA 0.2s and Ipk 17kA
Protection against fire:
All plastic accessories used with the Mobilis Movit lines are self-extinguishing
Weight :
0,81kg/m for 315A ; 1,03kg/m for 450A ; 1,26kg/m for 630A
3. ENVIRONMENT :
Inside Outside Dust With snow Low Temperature Rain
     
Validate suitability of the product to run in unfavorable environmental conditions (e.g. humid air
flow, steam, frost...).
A version with 600h resistance under saline mist is available. Please inquire.
