Simplified trolleys

The collector trolley shunts the electrical current in the Mobilis line to the mobile device requiring power.
Description
The simplified trolley is used to shunt the electrical current in standard installations (no curve) operating at speeds up to 70m/min
of 4 poles maximum. It is not intended to support a load. It is inserted into the line by matching poles using a system of safety pins.
The mechanical link between the trolley and the mobile device is ensured by the carrier. The self-lubricating carbon brushes,
mounted on springs, thereby guaranteeing a permanent contact with the conductor. The trolley is available in 2 versions: - One
version with a box, without cable, + cable gland M25, allowing connection via flexible copper cables of 2.5 mm² to 6 mm², Ø13 to
19 mm, of Class 5 minimum only. And a second version prewired with cable H07-RNF (4 X 4 mm² or 6 mm²). The prewired trolley
can be delivered with a cable length of 1m (standard), or more (on request). The carbon brushes (or brushes) are the parts of the
Mobilis Elite trolley most subject to wear. They can be easily replaced without intervention on wiring. A simple screwdriver is all that
is needed. The maximum wear tolerance is etched on the body of the trolley. The single trolley can shunt up to 40 A when
travelling. For higher
Categorie
Avantage n°1
Avantage n°2
Références et compatibilités
Références et variantes
Références et variantes
www.fels.fr | T +33(0)3 88 67 10 60
intensities, use double

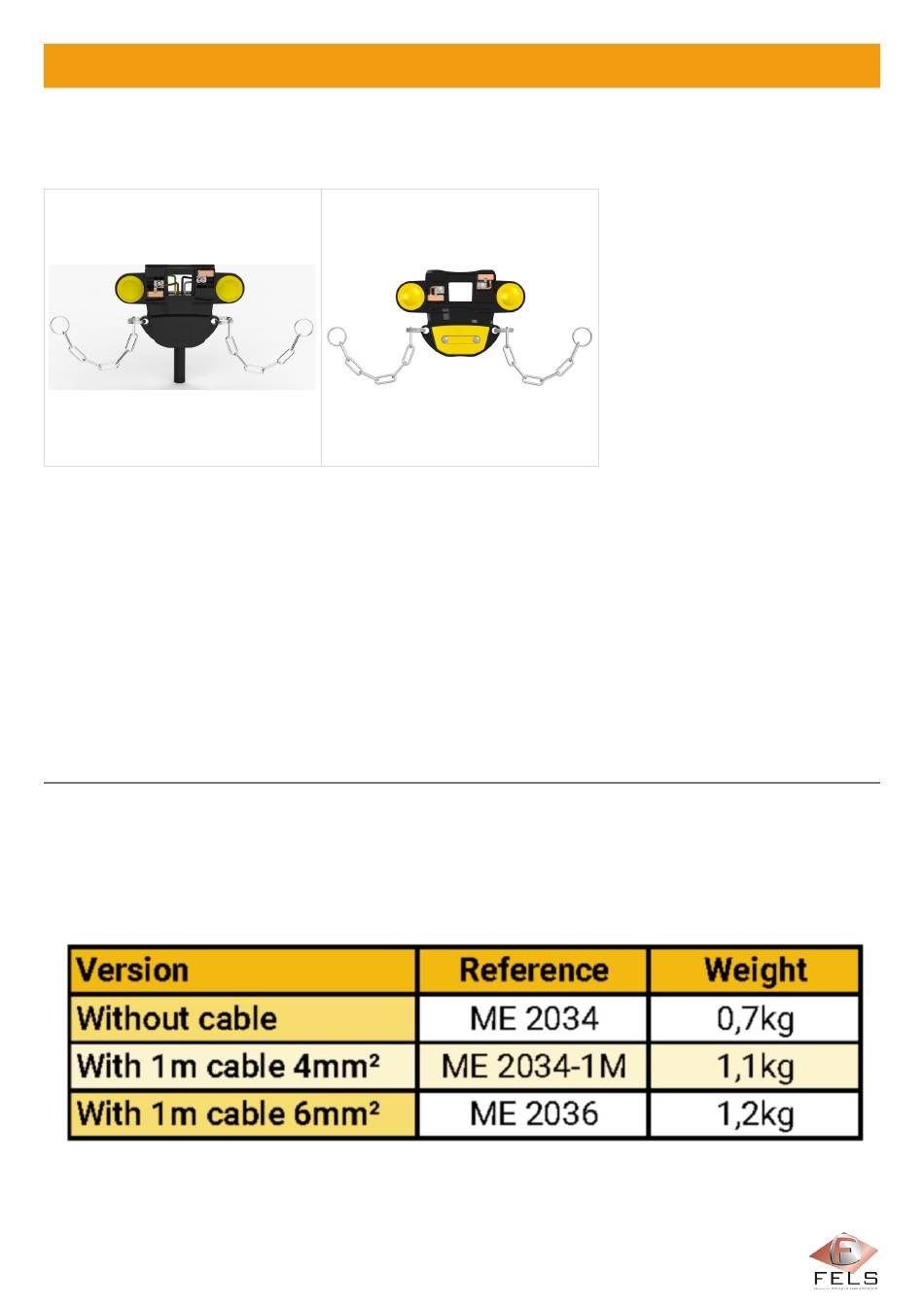

Standard
Simplified version for low-intensity applications
cost-effective up to max. 40A 4P
The simplified trolleys are available in versions fitted with/without cable
HO7RNF.
| F +33 (0)3 88 55 01 79
or triple rigid
| Edité le 04/01/2017
collector trolleys.
Page 103/223
