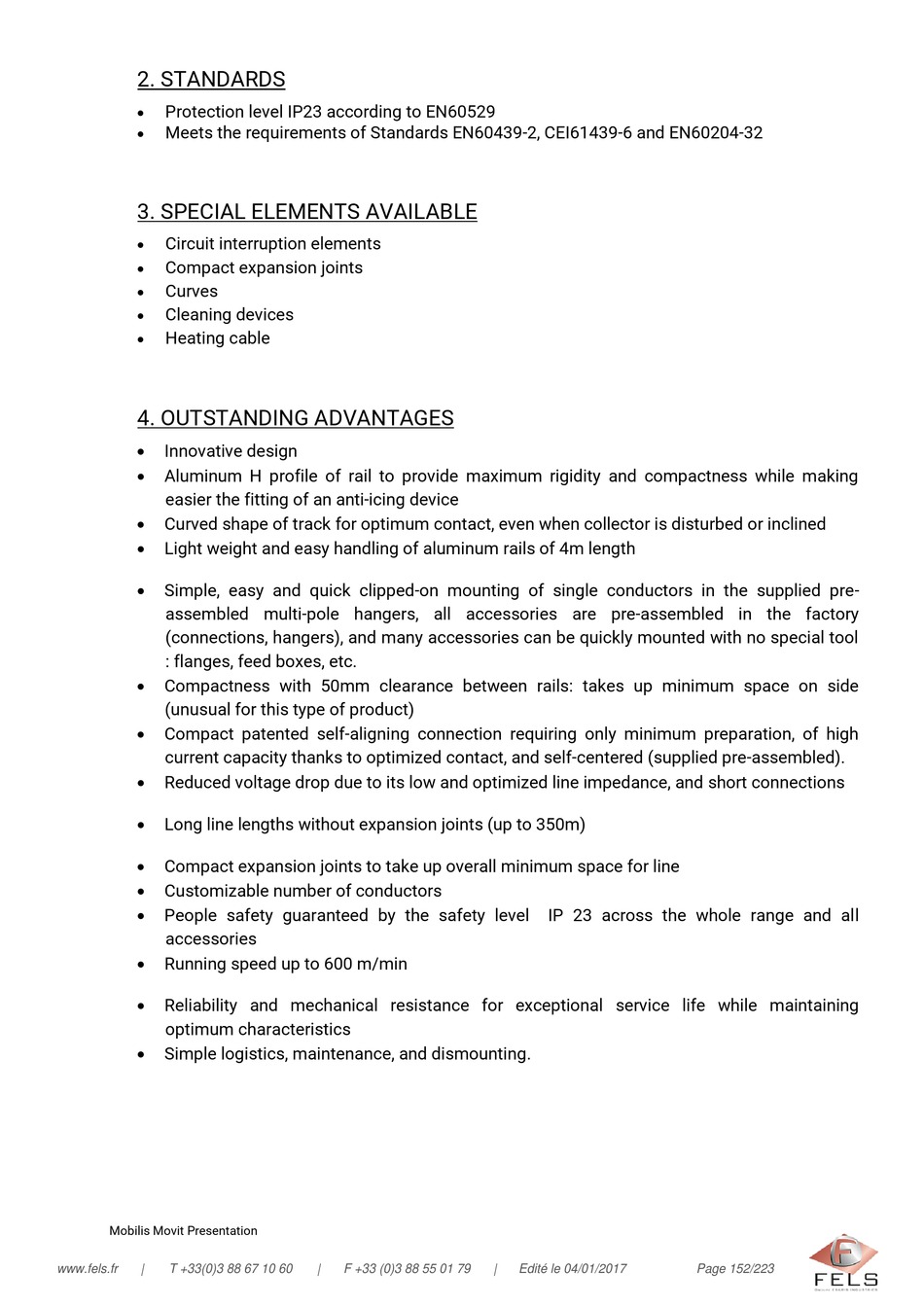

Fels Mobilis ELITE Manual page 152

2. STANDARDS
Protection level IP23 according to EN60529

Meets the requirements of Standards EN60439-2, CEI61439-6 and EN60204-32

3. SPECIAL ELEMENTS AVAILABLE
 Circuit interruption elements
 Compact expansion joints
 Curves
Cleaning devices

 Heating cable
4. OUTSTANDING ADVANTAGES

Innovative design

Aluminum H profile of rail to provide maximum rigidity and compactness while making
easier the fitting of an anti-icing device

Curved shape of track for optimum contact, even when collector is disturbed or inclined

Light weight and easy handling of aluminum rails of 4m length

Simple, easy and quick clipped-on mounting of single conductors in the supplied pre-
assembled multi-pole hangers, all accessories are pre-assembled in the factory
(connections, hangers), and many accessories can be quickly mounted with no special tool
: flanges, feed boxes, etc.

Compactness with 50mm clearance between rails: takes up minimum space on side
(unusual for this type of product)

Compact patented self-aligning connection requiring only minimum preparation, of high
current capacity thanks to optimized contact, and self-centered (supplied pre-assembled).

Reduced voltage drop due to its low and optimized line impedance, and short connections

Long line lengths without expansion joints (up to 350m)

Compact expansion joints to take up overall minimum space for line

Customizable number of conductors

People safety guaranteed by the safety level
accessories

Running speed up to 600 m/min

Reliability and mechanical resistance for exceptional service life while maintaining
optimum characteristics

Simple logistics, maintenance, and dismounting.
Mobilis Movit Presentation
www.fels.fr | T +33(0)3 88 67 10 60 | F +33 (0)3 88 55 01 79
IP 23 across the whole range and all
