- Page 1 DediProg User Manual 01/2020 NuProgPlus-U8 Universal Gang Programmer and Duplicator User Manual Version 1.0 © DediProg Technology Co., Ltd 2020 All rights reserved.
-
Page 2: Table Of Contents
DediProg. However, no responsibility is assumed for errors that might appear. DediProg reserves the right to make any changes to the product and/or the specification at any time without notice. No part of this document may be copied or reproduced in any form or by any means without prior written consent of DediProg. -
Page 3: Introduction
NuProgPlus-U8 User Manual I. Introduction This manual will be focusing on the hardware specification and the software quick guide of NuProgPlus-U8. If you would like to know more about the Dediware software, please download it from DediProg website. https://www.dediprog.com/download II. Product Information... -
Page 4: Product Descriptions

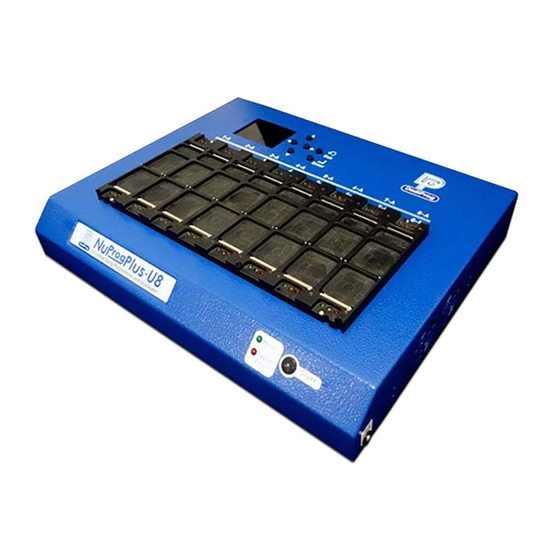

NuProgPlus-U8 User Manual IV. Product Descriptions D. LCD Keypad Panel C. Status LED Indicator E. Socket Sites A. Power and System status LED Indicators B. Start Button F. ESD & GND www.dediprog.com... - Page 5 NuProgPlus-U8 User Manual F. ESD & GND G. USB Port H. Power Connector I. Power Switch A. Power and System Status LED Indicators The System Error LED will turn off after the initialization is done. B. Start Button Use Start button to start programming in production mode.
- Page 6 Control the Dediware software and the programmer by using the USB3.0 connector, one end connects to the programmer; the other end connects to the USB3.0 port on the computer H. Power Connector Connect with the DC 15V power cable provided by Dediprog (Input 100~240V/50~60Hz; Output 15V) I. Power Switch www.dediprog.com...
-
Page 7: Dediware Quick Installation
NuProgPlus-U8 User Manual V. Dediware Quick Installation The software is provided with the purchase of NuProgPlus-U8. The latest version is available on our website. www.dediprog.com 5.1 Software Installation 1. Install Dediware and driver www.dediprog.com... -
Page 8: Install Nuprogplus-U8 Programmer
Dediware Command Line User Manual) 5.2 Install NuProgPlus-U8 Programmer 1. Connect the power cable to the NuProgPlus-U8 programmer 2. Connect the USB cable to the NuProgPlus-U8 programmer 3. Install the socket adaptor, please refer to VI. Socket Adaptor Installation 4. Turn on the power of the programmer 5. -
Page 9: Dediware (For Mcu/Flash/Eeprom)
5.3 Dediware (For MCU/Flash/EEPROM) Note It is able to create programming project file without connecting to NuProgPlus-U8. The user can create project file on any computer that has installed Dediware. After creating the file, the user can save the file on computer for programming. - Page 10 NuProgPlus-U8 User Manual 2. Switch to Engineering Mode 3. Select IC brand and IC Part Number (or use search to find the model name) It is faster to find it by entering the IC model here www.dediprog.com...
- Page 11 NuProgPlus-U8 User Manual 4. Load the image file 5. Set up the programming procedure and mode Other than set up Batch according to the programming need, user can also set up the Start Mode and other functions according to different kinds of IC.
- Page 12 NuProgPlus-U8 User Manual 6. Save Programming Project File Name the project file (*.npprj), once the user click ok, a window will appear for the user to set up the password for production management. If the user has set the password, then it will be requested when loading the project in the production mode.
-
Page 13: Dediware Production Mode
NuProgPlus-U8 User Manual 5.4 Dediware Production Mode After creating the project file, load it to the computer that has connected to other programmer. 1. Open Dediware and switch to Production Mode. 2. Click SelectPrj to choose the programming project file. - Page 14 NuProgPlus-U8 User Manual 3. When the Log window appears “Select project success”, the RunPrj icon will become available. 4. After clicking “RunPrj”, the Log window will display all the socket adaptors’ status. If the socket site did not install with the socket adaptor, then it will appear in grey, N/A. The start button will appear and wait for the Start signal from the automated system to start programming.
- Page 15 NuProgPlus-U8 User Manual After programming completed, it will show the result, and the status LED indicator will change accordingly. Note The socket adaptor must be installed properly before clicking “RunPrj.” Please pay attention to the followings: 1. If the socket adaptor is not installed to the programmer properly, it might cause poor connection;...
-
Page 16: Nuprog (For Ufs/Emmc)
NuProgPlus-U8 User Manual 5.5 NuProg (For UFS/eMMC) 1. Switch to Engineering Mode 2. Click Detect > UFS/EMMC When it detects ChipInfo, it will show the IC Model www.dediprog.com... - Page 17 NuProgPlus-U8 User Manual 3. Load the image and choose the target partition. 4. Set up programming procedure and mode Other than set up the Batch setting according to the programming need, the user can turn on the ID check function by checking the Skip Check ID box.
- Page 18 NuProgPlus-U8 User Manual 5. Save project file After naming the file, it will create a folder at the assigned location, and it will store all the setting and content that the project file need. www.dediprog.com...
-
Page 19: Nuprog Software Copy Mode
NuProgPlus-U8 User Manual 5.6 NuProg Software Copy Mode After creating the project file, load it to the computer that has connected to other programmer. 1. Click Run, there are three options. Start from Buffer memory: Load the saved project file from the programmer memory directly. - Page 20 NuProgPlus-U8 User Manual 2. Use Start from Project Folder as an example, choose a programming project file. 3. The Log window will show “Download project files success”, meanwhile, the Run icon will turn grey; the stop and start copy will appear.
- Page 21 NuProgPlus-U8 User Manual 4. Click “Start Copy” or the Start button on the programmer, and then the programmer will start program those sites that have installed with socket adaptor. If the socket site does not have socket adaptor, then it will be in grey (N/A).
-
Page 22: Socket Adaptor Installation
NuProgPlus-U8 User Manual VI. Socket Adaptor Installation How to connect socket adaptor to a programmer? There is a triangle at the bottom of the socket adaptor. Install the socket adaptor according to the below figure. If the connections are normal, then it is ready for programming. - Page 23 NuProgPlus-U8 User Manual The connector of the UFS/eMMC is above the adaptor The connector of the UFS/eMMC is above the adaptor The connector of the MCU/Flash/EEPROM is under the adaptor Note: 1. Improper installation may cause the damages. 2. Pick up the IC directly by hand may produce dirt or statics which may cause errors during the programming process.
-
Page 24: Revision
209 E Baseline RD, Suite E208 #8, Tempe, AZ, 85283, USA Technical Support: support@dediprog.com Sales Support: sales@dediprog.com Information furnished is believed to be accurate and reliable. However, DediProg assumes no responsibility for the consequences of use of such information or for any infringement of patents or other rights of third parties which may result from its use.
