AMU Oxytrace
Installation
3.3
16

Install the Swansensor Oxytrace G

The Swansensor Oxytrace G is delivered with a prefilled electrolyte
chamber [E]. A transport protection cap [B] filled with water [D]
keeps the sensor wet during transport and storage. To install the
sensor proceed as follows:
1 Unscrew the fixing sleeve [A].
2 Remove the transport protection cap [B].
3 Clean the Swansensor Oxytrace G [C] with water.
4 Install the Swansensor Oxytrace G into the flow cell
5 Connect the sensor cable to the transmitter, see
nection, p. 17.

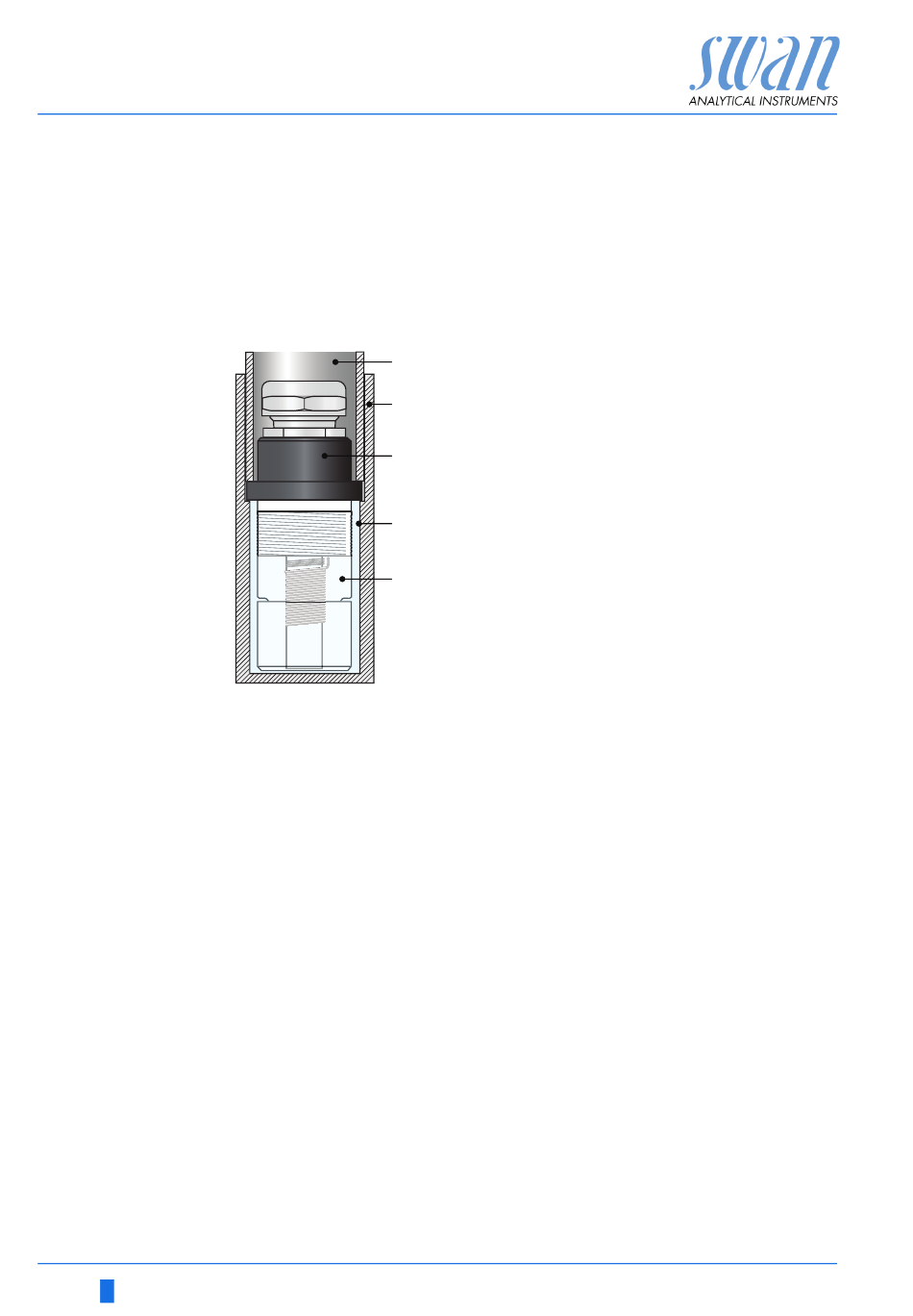

A Fixing sleeve
A
B
Transport protection cap
C Swansensor Oxytrace G
B
D
Water
E Sensor cap filled with electrolyte
C
D
E
Electrical Con-
A-96.250.541 / 230320
