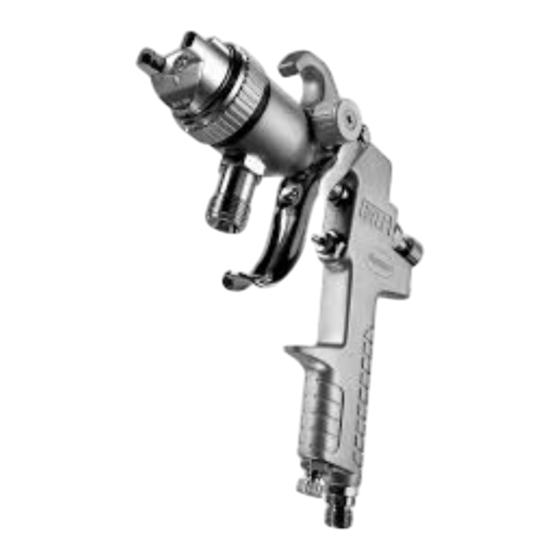

Hvlp spray gun

Advertisement

Quick Links

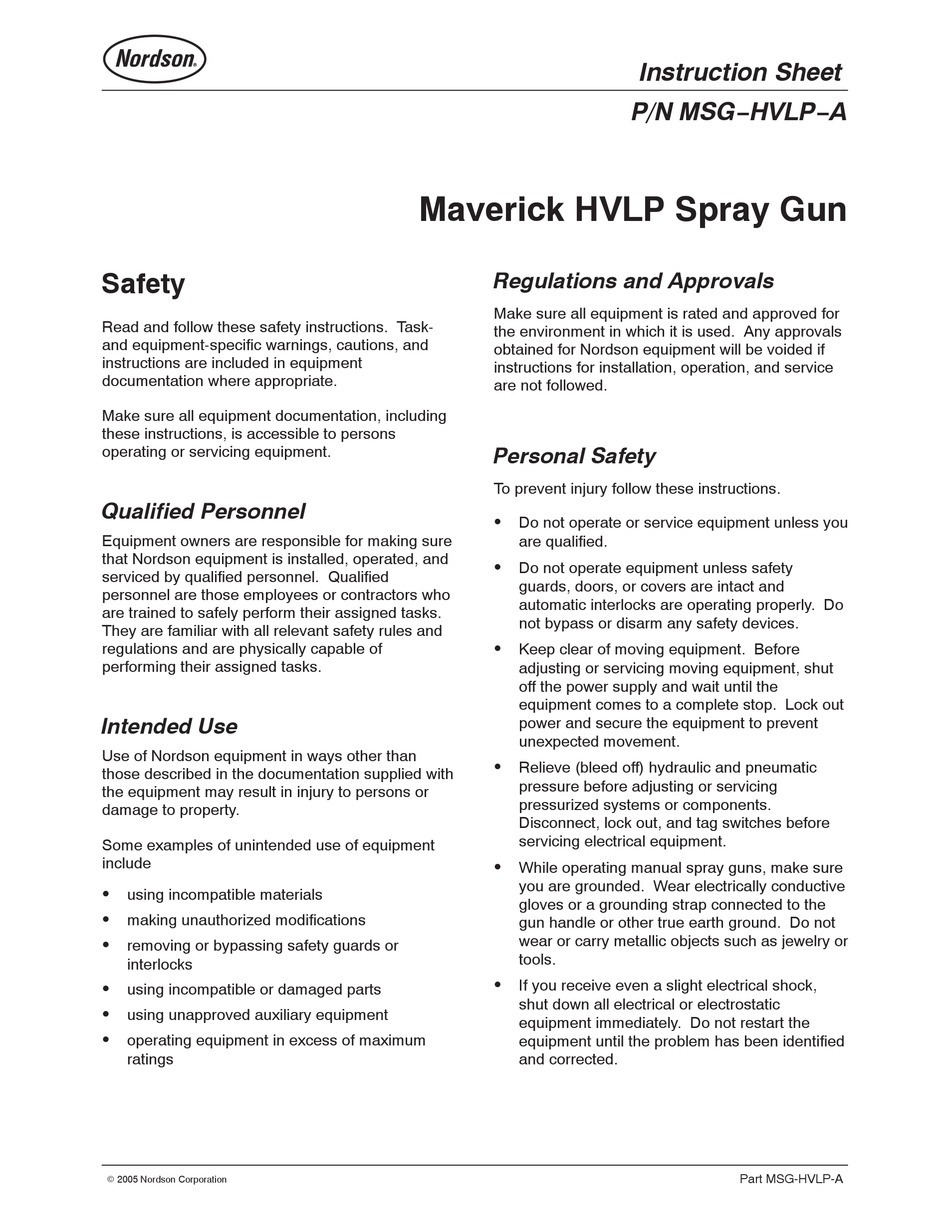

Safety
Read and follow these safety instructions. Task-
and equipment-specific warnings, cautions, and
instructions are included in equipment
documentation where appropriate.
Make sure all equipment documentation, including
these instructions, is accessible to persons
operating or servicing equipment.
Qualified Personnel
Equipment owners are responsible for making sure
that Nordson equipment is installed, operated, and
serviced by qualified personnel. Qualified
personnel are those employees or contractors who
are trained to safely perform their assigned tasks.
They are familiar with all relevant safety rules and
regulations and are physically capable of
performing their assigned tasks.
Intended Use
Use of Nordson equipment in ways other than
those described in the documentation supplied with
the equipment may result in injury to persons or
damage to property.
Some examples of unintended use of equipment
include
S
using incompatible materials
S
making unauthorized modifications
S
removing or bypassing safety guards or
interlocks
S
using incompatible or damaged parts
S
using unapproved auxiliary equipment
S
operating equipment in excess of maximum
ratings
E 2005 Nordson Corporation
Maverick HVLP Spray Gun
Regulations and Approvals
Make sure all equipment is rated and approved for
the environment in which it is used. Any approvals
obtained for Nordson equipment will be voided if
instructions for installation, operation, and service
are not followed.
Personal Safety
To prevent injury follow these instructions.
S
Do not operate or service equipment unless you
are qualified.
S
Do not operate equipment unless safety
guards, doors, or covers are intact and
automatic interlocks are operating properly. Do
not bypass or disarm any safety devices.
S
Keep clear of moving equipment. Before
adjusting or servicing moving equipment, shut
off the power supply and wait until the
equipment comes to a complete stop. Lock out
power and secure the equipment to prevent
unexpected movement.
S
Relieve (bleed off) hydraulic and pneumatic
pressure before adjusting or servicing
pressurized systems or components.
Disconnect, lock out, and tag switches before
servicing electrical equipment.
S
While operating manual spray guns, make sure
you are grounded. Wear electrically conductive
gloves or a grounding strap connected to the
gun handle or other true earth ground. Do not
wear or carry metallic objects such as jewelry or
tools.
S
If you receive even a slight electrical shock,
shut down all electrical or electrostatic
equipment immediately. Do not restart the
equipment until the problem has been identified
and corrected.
Instruction Sheet
P/N MSG−HVLP−A
Part MSG-HVLP-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maverick and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nordson Maverick

  • Page 1 Read and follow these safety instructions. Task- the environment in which it is used. Any approvals and equipment-specific warnings, cautions, and obtained for Nordson equipment will be voided if instructions are included in equipment instructions for installation, operation, and service documentation where appropriate.
  • Page 2: Personal Safety

    Maverick HVLP Spray Gun Personal Safety MEDICAL ALERT—AIRLESS SPRAY WOUNDS: (contd) NOTE TO PHYSICIAN Obtain and read Material Safety Data Sheets (MSDS) for all materials used. Follow the Injection in the skin is a serious traumatic injury. It manufacturer’s instructions for safe handling...
  • Page 3: Halogenated Hydrocarbon Solvent Hazards

    Contact your Nordson representative for parts information and advice. The lightweight Maverick HVLP spray gun is ideal for production settings and can be used with a Halogenated Hydrocarbon Solvent variety of low and high-viscosity coatings on a...
  • Page 4: Installation

    −in. NPS 1300568A 3. Regulate the supply air for a maximum Figure 1 Maverick HVLP spray gun installation pressure of 3.0 bar (43psi) or less at the gun. 4. Connect the fluid hose between the fluid delivery system outlet and the -inch NPS fluid inlet on the gun extension.
  • Page 5: Operation

    Maverick HVLP SPray Gun Operation Daily Maintenance Make sure: Daily lubrication and cleaning of the spray gun is recommended to maintain the best condition of the the fluid tip is securely tightened and the air cap spray gun. is correctly installed and securely held with the retaining ring.
  • Page 6: Troubleshooting

    Maverick HVLP Spray Gun Troubleshooting See Figure 2. This section contains troubleshooting procedures for common gun problems and spray pattern and film-build faults. If you cannot solve your problem with the information given here, contact your Nordson representative for help.
  • Page 7: Spray Gun Disassembly

    Maverick HVLP SPray Gun Repair Spray Gun Disassembly A complete set of replacement wear parts including See Figure 2. seals, springs, and fittings and a spanner wrench are included with your spray gun. Use Figure 2 to Preparations disassemble and assemble the spray gun to replace any of the wear parts.
  • Page 8 Maverick HVLP Spray Gun Parts See Figure 2. Part Description Note 1059773 GUN, manual HVLP spray, with 1.0-mm air cap 1059774 REPAIR KIT, manual HVLP spray gun NOTE A: Kit includes a complete set of replaceable wear items. 22 23 24...
  • Page 9 NOTE A: Compliance kit includes air cap, retaining ring, pressure gage, and tubing. The kit does not include fluid tip or needle. 1300567A Figure 3 Maverick HVLP Air Cap, Nozzle/Fluid Tip, and Needle Kit Part MSG-HVLP-A E 2005 Nordson Corporation...
  • Page 10 Maverick HVLP Spray Gun Issued 1/05 Original copyright date 2005. Nordson and the Nordson logo are registered trademarks of Nordson Corporation. Part MSG-HVLP-A E 2005 Nordson Corporation...
