D-Box HaptiSync Hub Quick Start Manual page 2

HAPTISYNC SYSTEM

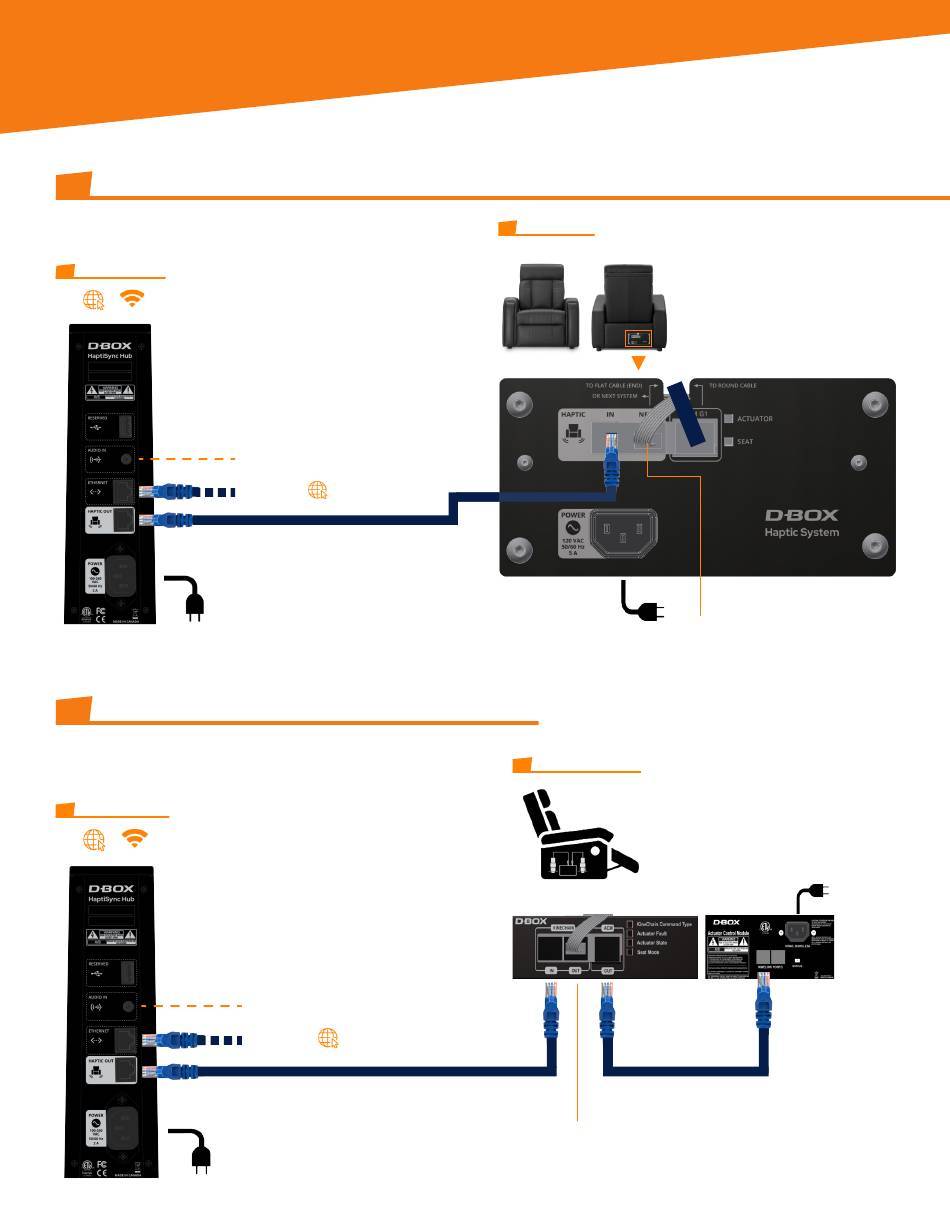

Wiring diagrams
D-BOX LIFESTYLE & LIVING MODELS BY JAYMAR EXPERIENCE
HAPTISYNC HUB
Internet WiFi
Rear view 100-240VAC, 50/60Hz, 2A
OTHER CUSTOM HAPTIC SYSTEMS
HAPTISYNC HUB
Internet WiFi
Rear view 100-240VAC, 50/60Hz, 2A
Audio Line-in (Optional) Audio IN
(Optional – See section 4)
LAN
(Optional)
Internet
Use CAT.5E/6
(Shielded Cable only)
Audio Line-in (Optional) Audio IN
(Optional – See section 4)
LAN
(Optional)
Internet
Use CAT.5E/6
(Shielded Cable only)
HAPTISYNC SYSTEM(S) HAPTIC SEAT
Front view Rear view
Rear panel
120VAC, 50/60Hz, 5A
G1 HAPTIC SYSTEM
GEN-1 HAPTIC SYSTEM
KCA-T
Flat termination cable must be Terminaison cable must be connected
into the OUT port
connected into the OUT port
Terminaison cable must be connected
Flat termination cable must be
into the OUT port
connected into the OUT port
120VAC,
ACM
50/60Hz, 3.5A
