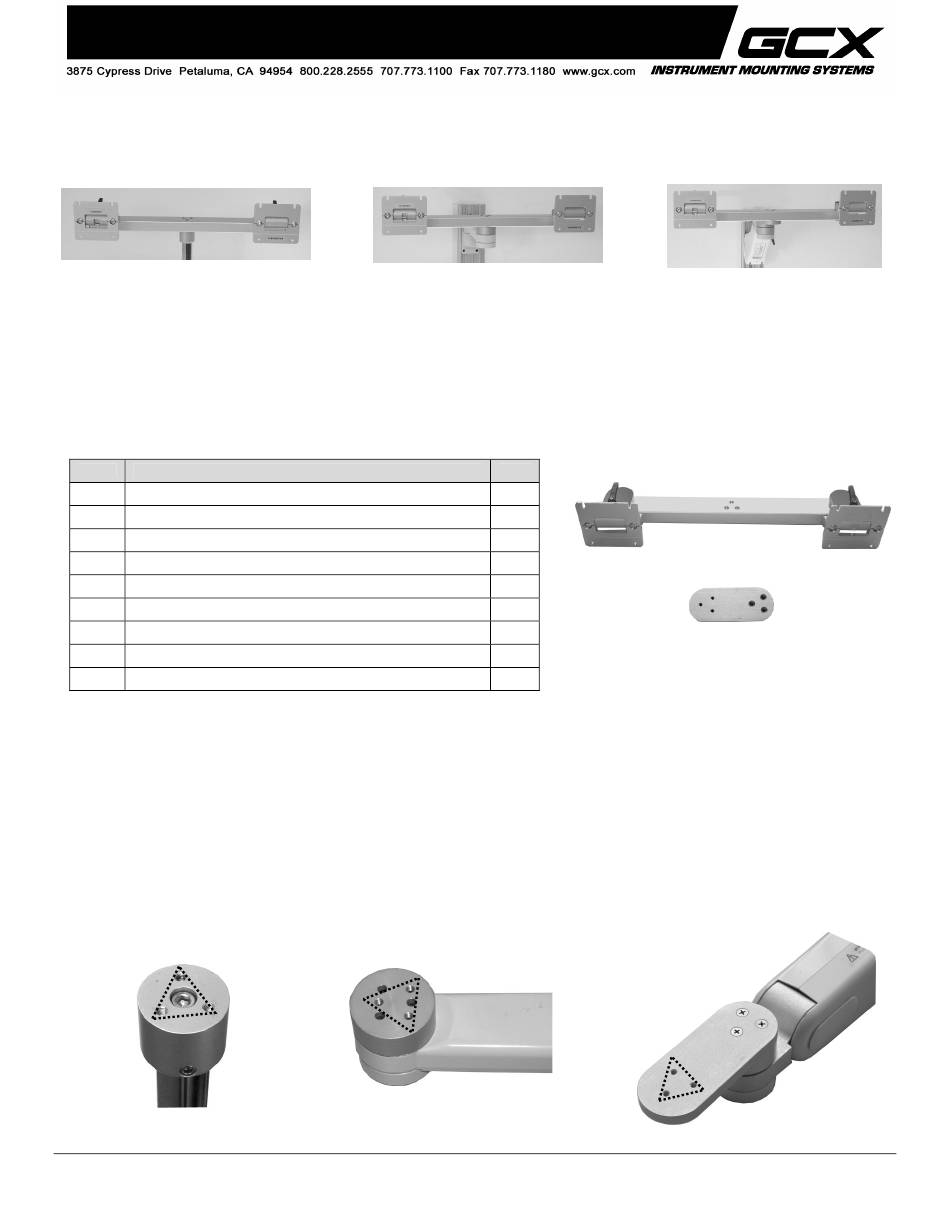

GCX M-Series Mounting Assembly Installation Manual

Dual Flat Panel Display Mount for Variable Height Roll Stand (VHRS), VHM, or M-Series Arm
VHRS
The purpose of this guide is to describe attachment of the Dual Display Mounting Bar to Roll Stand (VHRS), VHM or M-
Series Arm. Installation Note: This installation guide covers installation of Mounting Bar for either 15'' or 17'' displays.
The Mounting Bar for 15'' displays is shown in this guide.

Parts Reference

The parts list below includes parts and hardware that will be used in this installation procedure (see photos for parts;
hardware not shown).
Item # Description
1 Dual Display Mounting Bar
2 #10-32 x 1-1/4'' Socket Head Cap Screw (SHCS)
3 M4 x 6mm Pan Head Machine Screw (PHMS)
4 M4 x 10mm PHMS
5 Extension, 5'' (for VHM Applications)
6 #10-32 x 3/4'' Flat Head Machine Screw (FHMS)
*7 75/100mm VESA Mounting Adapter Kit (includes hardware)
8 5/32'' Hex Key
9 9/64'' Hex Key
* Required for displays with 100 x 100mm mounting patterns.
Tools Required: Phillips screwdriver, 5/32'' and 9/64'' hex keys.
Installation Note
The Dual Display Mounting Bar is mounted only on 3-hole mounting patterns as shown below. The Mounting Bar is
attached directly to the Roll Stand Post or M-Series Arm (below left and center), but a 5'' Extension is required for
attachment to a VHM Arm (below right).
Top of Variable Height Roll Stand Post
(VHRS)
GCX Mounting Assembly Installation Guide
Swivel Head on M-Series Arm
M-Series Arm
Qty
1
3
8 Dual Display Mounting Bar
8
1
3
2
1
1
5'' Extension Attached to
Swivel Head on VHM Arm
DU-FLP-0008-03 Rev A 9/29/03 GCX Corp Page 1 of 3
VHM Arm
5'' Extension
