3875 Cypress Drive Petaluma, CA 94954 • 800.228.2555 • +1.707.773.1100 • Fax 707.773.1180 • www.gcx.com

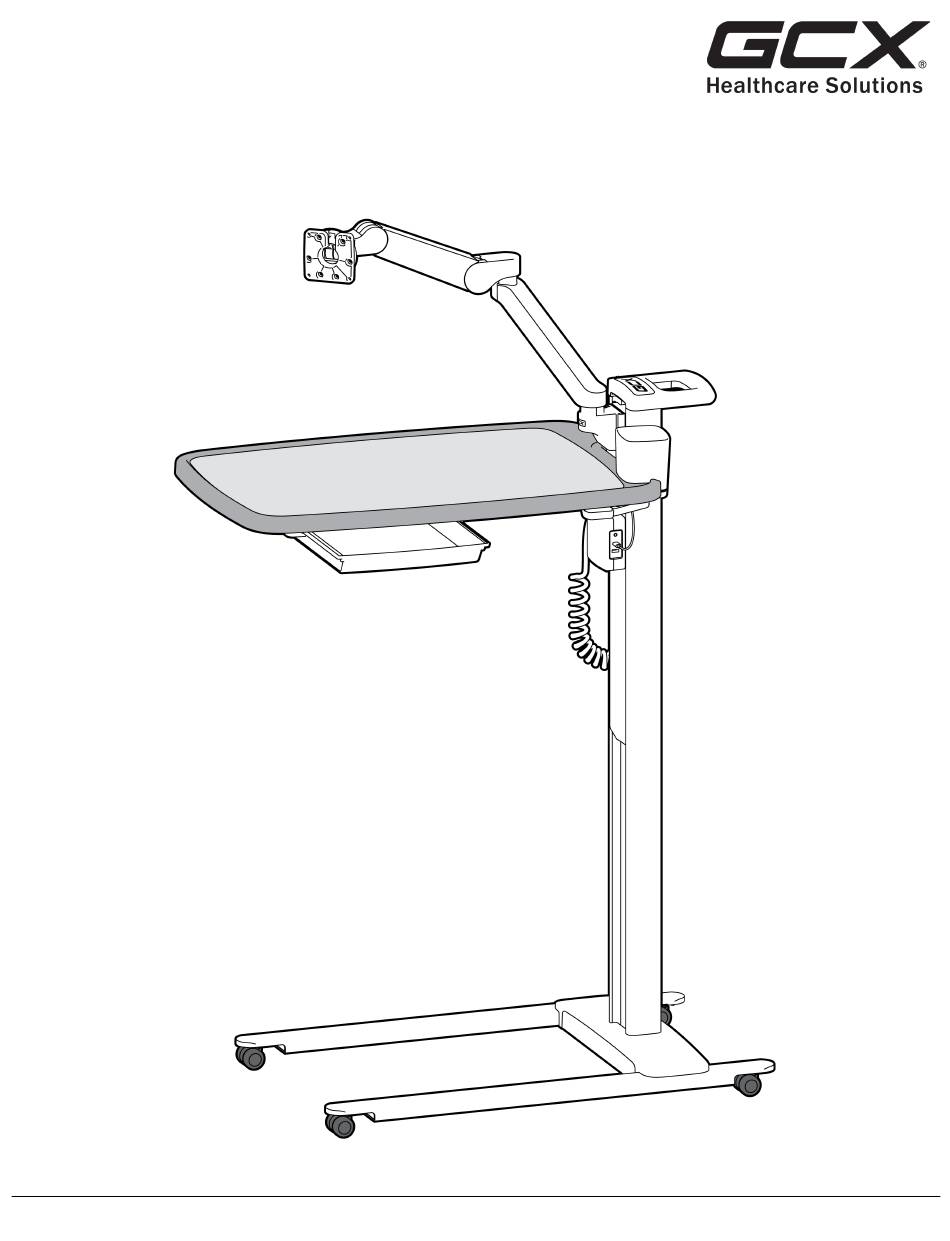

Installation Guide
GCX® Overbed Table (OBT) with
PRO-ADJUST™ Tablet Arm
(Refer to qualified personnel)
This installation guide covers the assembly of the Base and Column, attachment of the Tabletop, and operation of the
assembled Overbed Table.
DU-OBT-0011-61 Rev A 9/20/23 GCX Corp. Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GCX OBT

Summary of Contents for GCX OBT

  • Page 1 3875 Cypress Drive Petaluma, CA 94954 • 800.228.2555 • +1.707.773.1100 • Fax 707.773.1180 • www.gcx.com Installation Guide GCX® Overbed Table (OBT) with PRO-ADJUST™ Tablet Arm (Refer to qualified personnel) This installation guide covers the assembly of the Base and Column, attachment of the Tabletop, and operation of the assembled Overbed Table.

  • Page 2: Parts Reference

    OBT Column (1) 1/2” Socket Wrench Assembly (1) 1/8” Hex Wrench Tools Required The tools listed below are required to install and adjust the OBT and its accessories. Provided Not Provided 1/2” Socket Wrench #2 Phillips Screwdriver 1/8” Hex Wrench...
  • Page 3 Assembling the column to the base 1. Lay OBT Column horizontally on a flat surface, tip the OBT base vertically and insert the column into the opening of the plastic cover. 2. Align the four (4) mounting holes in the base to the four (4) threaded holes in the bottom of the column. Using the 1/2”...
  • Page 4 Using a Phillips screwdriver (not provided), fasten the Tabletop to the Column using four (4) 10- 32 x 1/2” PH SEMS. (4) 10-32 X 1/2” PH SEMS (4) 10-32 x 1/2” PH SEMS DU-OBT-0011-61 Rev A 9/20/23 GCX Corp. Page 4...
  • Page 5 WARNING: DO NOT ATTEMPT TO DISASSEMBLE ANY COMPONENT OF THE OBT COLUMN. Overbed Tables (OBT) include an adjustable height feature. Height is adjusted by pressing and releasing one or both paddles under the Tabletop. Caution: The OBT Column operates by pneumatic pressure and will travel upward when disengaged. Ensure that nothing will obstruct upward travel before pressing the paddles.
  • Page 6 The OBT comes with either a USB hub with two (2) USB-C ports or a USB hub with one (1) USB-A port and one (1) USB-C port depending on the configuration you purchased. Once the PRO-ADJUST™ Tablet Arm has been properly installed and the tablet’s charging cable has been routed through the arm as indicated in DU-WS-0017-01, the charging cable can then be routed between the tabletop and the column and plugged into the USB hub.
  • Page 7 OBT Bin/ Cupholder 1. Prepare the Bin/Cupholder to install onto the edge of the OBT Tabletop. Using a Phillips Screwdriver (not provided), loosen the two (2) screws on the bottom of the Bin/Cupholder without removing the screws. Loosen both screws 2.
  • Page 8 OBT Drawer Removal and Installation The OBT Drawer can be removed for cleaning purposes. 1. To remove the Drawer, locate two latches (one on each side of the drawer) and pull each latch outward until they click. 2. Once the Latches are unlocked, simply slide the Drawer completely out of the rails.

  • Page 9: Routine Maintenance

    Dry the assembly thoroughly after cleaning. CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for control- ling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or accessory equipment, refer to the specific instructions delivered with those products.
