GCX VHRS Installation Manual

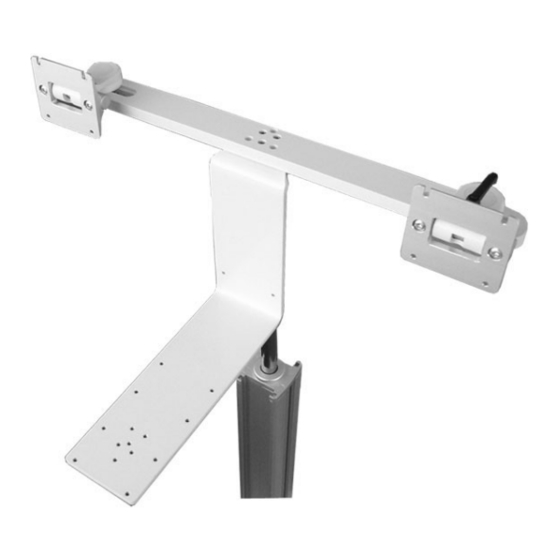

Dual Flat Panel Keyboard Bracket for Variable Height Roll Stand (VHRS)
The purpose of this guide is to:
1. Describe attachment of Keyboard Bracket to VHRS Post.
2. Describe attachment of Dual Flat Panel Display Mounting Bar to Keyboard Bracket.

Parts Reference

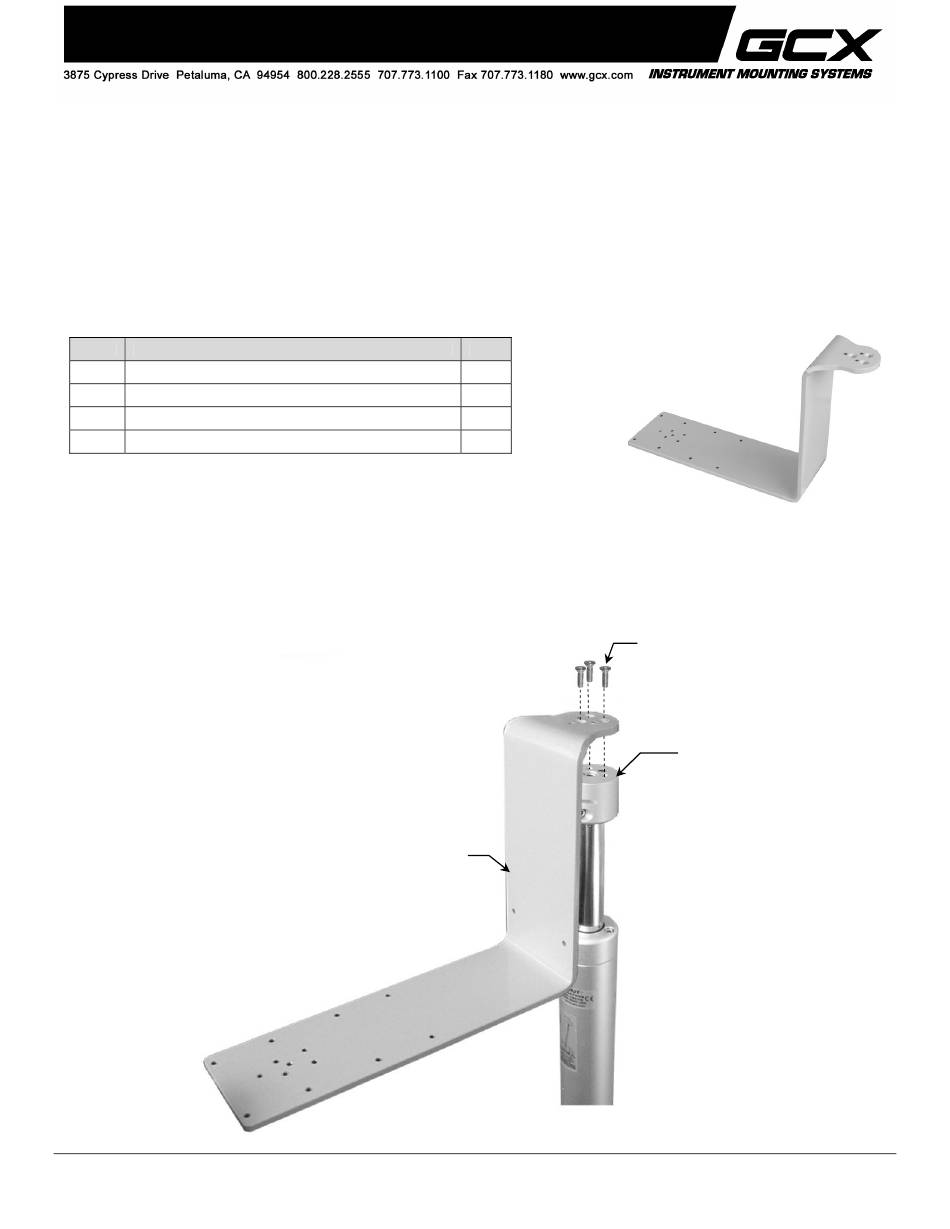

The following parts and hardware are included with this installation kit (see photos for major parts – hardware not shown).
Item # Description
1 Keyboard Bracket, Dual Flat Panel
2 #10-32 x 5/8'' Flat Head Machine Screw (FHMS)
3 #10-32 x 5/8'' Socket Head Cap Screw (SHCS)
4 5/32'' Hex Wrench
Tools Required: Phillips screwdriver (not provided), 5/32'' hex wrench (provided).

Attaching Keyboard Bracket to VHRS Post

1. Fasten Keyboard Bracket to 3-hole mounting pattern with three (3) #10-32 x 5/8'' FHMS.
Installation Guide
Qty
1
3
3
1
Keyboard Bracket
DU-FLP-0004-97 Rev A 9/08/05 GCX Corp. Page 1 of 2
Dual Flat Panel Keyboard Bracket
#10-32 x 5/8'' FHMS (3)
VHRS Post
