Bill of Materials, PCB Layout, and Schematics
7.2
PCB Layout
Figure 17
through

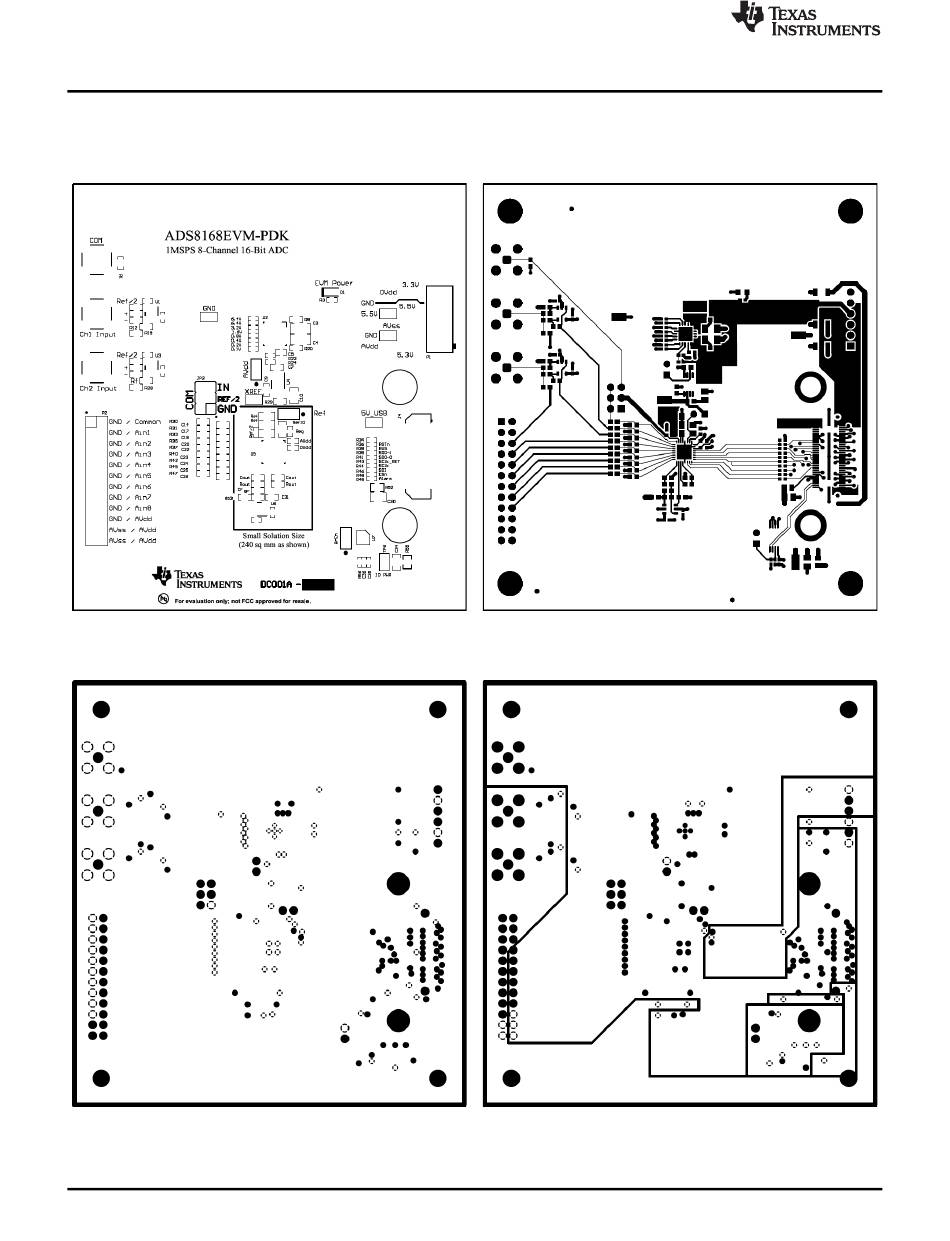

Figure 17. ADS8168 EVM PCB: Top Overlay
Figure 19. ADS8168 EVM PCB Layer 2: GND Plane
24
ADS8168EVM-PDK
Figure 21
illustrate the EVM PCB layout.
Copyright © 2017, Texas Instruments Incorporated
Figure 18. ADS8168 EVM PCB Layer 1: Top Layer
Figure 20. ADS8168 EVM PCB Layer 3: Power Planes
