Summary of Contents for Bartscher 2Z 126FL

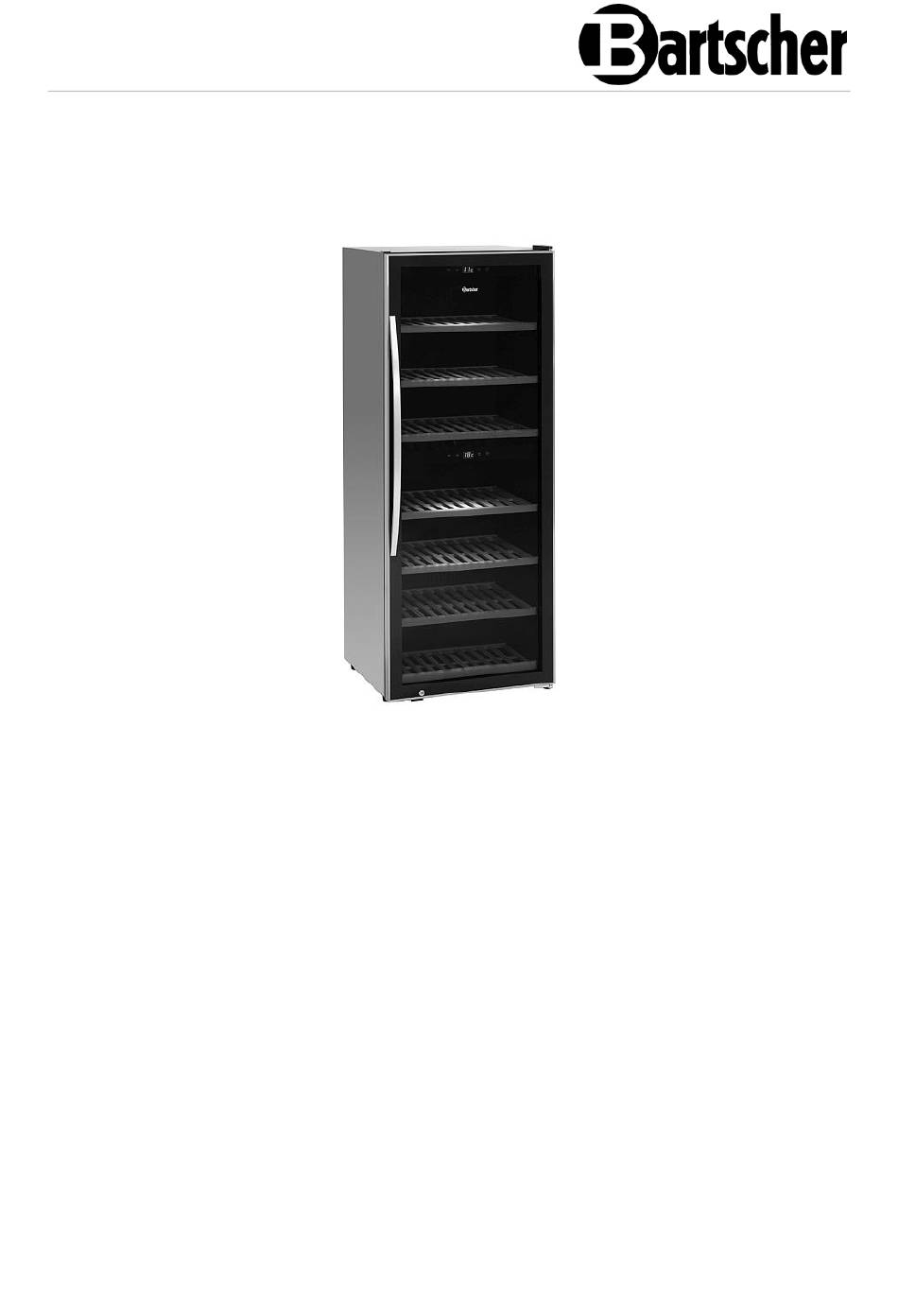

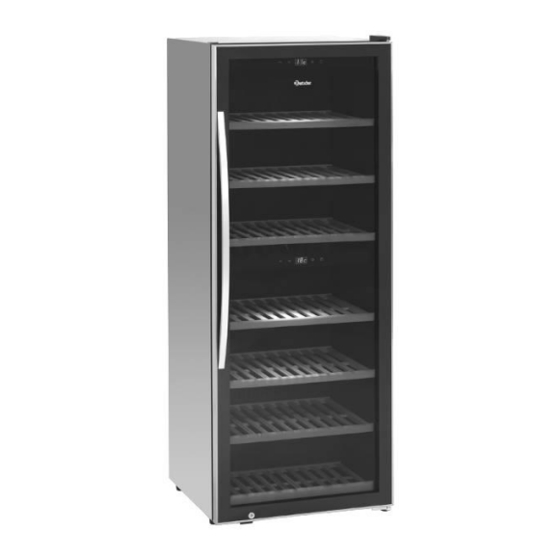

  • Page 1 2Z 126FL - 2Z 180FL 700131 - 700132...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 2.0 Date of preparation: 2020-04-28...
  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............
  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltende n ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.
  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Inc orrect operati on of the applianc e may c ause fire or explosi on haz ard due to igniti on of its content. Fire hazard / flammable materials hazard / explosion hazard! •...
  • Page 7 Safety • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force. • The appliance may only be used when it is clean. •...
  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling bottled wine. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature.
  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.
  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.
  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Version / Characteristics of Wine Coolers • Cooling: compressor • Insulation: thermal • Temperature control: thermostatic • Control: – touch – electronic • Automatic defrost function • Evaporation of condensed water • Thermostat • Digital display •...
  • Page 12 Technical Data Name: Wine cooler 2Z 126FL 700131 Art. No.: Material: steel, painted; glass Total volume (top/bottom), in litres: 313 (138/175) Total volume of bottles (top/bottom): 126 (54/72) Number of temperature zones: Temperature range, top, min.–max., in °C: 5 - 20 Temperature range, bottom, min.–max., in...
  • Page 13: Functions Of The Appliance

    Technical Data Name: Wine cooler 2Z 180FL 700132 Art. No.: Material: steel, painted; glass Total volume (top/bottom), in litres: 453 (219/234) Total volume of bottles (top/bottom): 180 (80/100) Number of temperature zones: Temperature range, top, min.–max., in °C: 5 - 20 Temperature range, bottom, min.–max., in 5 - 20 °C:...
  • Page 14: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance 1. Upper hinge cover 2. Door seal 3. Door frame (lockable) 4. Door handle 5. Lock 6. Bottom hinge with a foot (height- adjustable) 7. Feet (3x) 8. Hot air outlet 9. Air inlet 10.
  • Page 15 Volume: max. 6 bottles Presentation of bottles: – horizontal – angle approx. 25° (display setting) Characteristics: exchangeable with shelves for wine cooler 2Z 126FL / 700131 Dimensions: W 505 x D 438 x H 30 mm Weight: 1.1 kg Art. no. 700135...
  • Page 16: Installation And Operation

    Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it.
  • Page 17 Installation and operation • The appliance should be installed only in rooms, in which ambient temperature falls within the range of 16 °C – 38 °C. • Nie nal eż y umies zcz ać urządz eni a w g orąc ym otoczeniu ani w pobliż u materiał ów łatwopalnyc h. •...
  • Page 18: Operation

    Installation and operation Operation Fixing of Door Handle 1. Before the first use fix the supplied stainless steel handle to the appliance door. 2. Move the rubber seal on the door internal side left or right to uncover the fixing holes. 3.
  • Page 19 Installation and operation 1. First, take bottles off of the wooden shelf. 2. Then, lift the wooden shelf slightly and pull it out (loosen the screws prior, should it be required). NOTE! Make sure that the wooden shelves are properly snapped before placing bottles on them.
  • Page 20 Installation and operation Settings buttons make it possible to set the temperature between 5°C and 20°C in top and bottom temperature zone. Our recommended temperature settings: – for white wine: 6 °C – 10 °C – for red wine 12 °C – 18 °C 1.
  • Page 21: Cleaning And Maintenance

    Cleaning and Maintenance Switching the Appliance Off 1. When the appliance is no longer used, switch it off using ON/OFF button on both control panels and then disconnect it from power supply (pull the plug out). Cleaning and Maintenance Safety Instructions for Cleaning •...
  • Page 22: Maintenance

    Cleaning and Maintenance Housing 1. Clean the appliance exterior with a soft cloth, soaked in warm water and a gentle cleaning agent. 2. Then dry the appliance thoroughly with a soft cloth. Maintenance Extraction Opening/Fan The cooling efficiency may be reduced due to accumulation of dust or other contaminants blocking the extraction openings.
  • Page 23: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution The appliance does Incorrectly connected plug.
  • Page 24 Possible Malfunctions Error Possible Cause Solution Appliance is The appliance is not placed Place the appliance on even vibrating. on even surface. surface. Appliance operates Loose elements (e.g. Check all screws and nuts, too loudly. nuts/screws). tighten them if necessary. The appliance is not placed Place the appliance on even on even surface.
  • Page 25 Possible Malfunctions Error Possible Cause Solution Compressor does Room temperature is lower Maintain temperature in the not start. than the set temperature. installation location. Dew on the Air humidity in installation Remove dew using a soft appliance's surface. location is too high. cloth.
  • Page 26: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
