Summary of Contents for Bartscher 700133

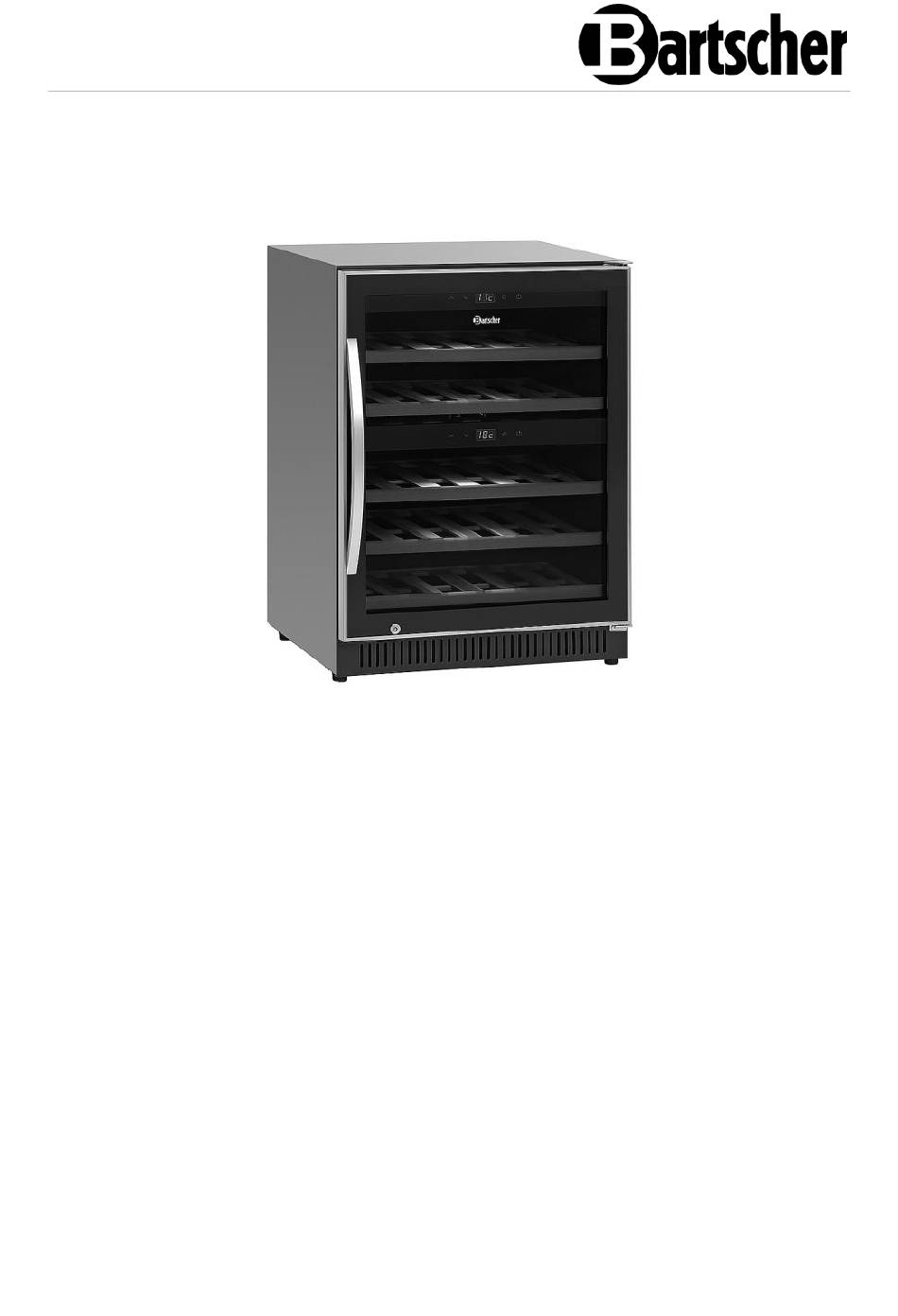

  • Page 1 2Z 40FL 700133...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 3.0 Date of preparation: 2023-03-06...

  • Page 3: Table Of Contents

    Functions of the Appliance ..............12 Installation and operation ................12 Installation ....................12 Operation ....................16 Cleaning and Maintenance ................18 Safety Instructions for Cleaning ............. 18 Cleaning ....................18 Maintenance ..................19 Possible Malfunctions .................. 20 Disposal ....................... 22 700133 1 / 22...

  • Page 4: Safety

    You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 22 700133...

  • Page 5: Safety Instructions

    Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 700133 3 / 22...
  • Page 6 This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. • Children should be supervised to ensure that they are not playing with or switching on the appliance. 4 / 22 700133...
  • Page 7 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 700133 5 / 22...

  • Page 8: Intended Use

    The following is an unintended use: – Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives; – Storing explosive materials, like sprays filled with flammable propellants; – Storing pharmaceutical products or preserved blood; – Storing live pets. 6 / 22 700133...

  • Page 9: General Information

    Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 700133 7 / 22...

  • Page 10: Transport, Packaging And Storage

    – in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 22 700133...

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Wine cooler 2Z 40FL 700133 Art. No.: Material: steel, painted; glass Total volume (top/bottom), in litres: 119 (49 / 70) Total volume of bottles (top/bottom): 40 (14 / 26) Number of temperature zones: Temperature range, top, min.–max., in °C:...
  • Page 12 • Can be flush-mounted More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2016, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 10 / 22 700133...

  • Page 13: List Of Components Of The Appliance

    4. Door frame 5. Door handle 6. Bottom hinge with a foot (height- adjustable) 7. Ventilation openings 8. Feet (3 pcs) 9. Wooden shelf (5 pcs) 10. Bottom control panel 11. Top control panel 12. Lock 700133 11 / 22...

  • Page 14: Functions Of The Appliance

    The appliance requir es s ufficient airflow for pr oper operation. Ass ure a mini mum later al cl ear anc e of the appli ance of 10 c m. • Die Öffnungen am Gerät niemals abdec ken oder bl oc ki eren. 12 / 22 700133...
  • Page 15 2. Move the rubber seal on the door internal side left or right to uncover the fixing holes. 3. Fix the handle to door with enclosed screws. 4. Then replace the seal in correct position. Fig. 1 700133 13 / 22...
  • Page 16 The appliance is delivered with 3 large feet and one height-adjustable foot. Adjust the small foot to make the appliance stand straight and do not sway. Wooden Shelves Each wooden shelf can store 8 bottles. The arrangement depends on the size and type of bottles. 14 / 22 700133...
  • Page 17 12 hours, before it is connected to power supply. • After a power failure or when the plug is removed from the socket, do not reconnect the appliance to power supply for at least 15 minutes. 700133 15 / 22...

  • Page 18: Operation

    The appliance and the top temperature zone will be switched on. 3. Press the ON/OFF button in the bottom control panel. The bottom temperature zone will be switched on. Digital displays show current internal temperature for a given temperature zone. 16 / 22 700133...
  • Page 19 The internal LED lighting may be switched on and off independently for each chamber. The LED lamp is located at a ceiling of each chamber. 1. To switch the internal LED lighting on or off, press button in the respective control panel. 700133 17 / 22...

  • Page 20: Cleaning And Maintenance

    3. Then dry the cleaned surfaces thoroughly using a soft cloth. Door Seal 1. Clean the door seal with a soft, damp cloth. 2. In order to assure correct closing and operation of the appliance, make sure that the door seal is clean. 18 / 22 700133...

  • Page 21: Maintenance

    When the appliance door is often opened, defrosting should be performed more frequently. 2. Turn the appliance off and remove the plug from the socket. 3. Then start the manual defrosting. 4. Monitor the condensate tank (K) and remove the water accumulating during the defrosting process. 700133 19 / 22...

  • Page 22: Possible Malfunctions

    Contact the service seal. company. Poor air circulation around Keep sufficient distance the appliance. from walls or other objects. Ambient temperature too Ambient temperature in high. installation place should be in the range of 16°C – 38°C. 20 / 22 700133...
  • Page 23 Contact the service 'Lo'. circuit. company. Buttons are not Temperature controller is Contact the service working. damaged. company. Compressor does Room temperature is lower Maintain temperature in the not start. than the set temperature. installation location. 700133 21 / 22...

  • Page 24: Disposal

    Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 22 / 22 700133...
