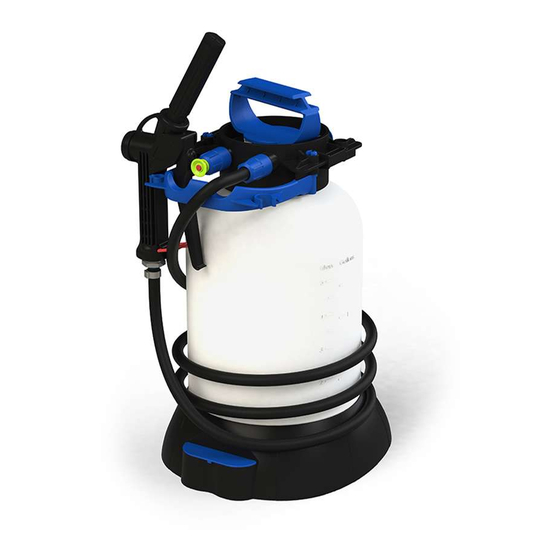

Foamit F5.0L-PSG User Manual

Foam Unit
User Manual
F5.0L-PSG | F10.0L-PSG
F5.0L | F10.0L
READ ALL INSTRUCTIONS BEFORE USING, OR
SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL
IN A LOCATION THAT IS READILY AVAILABLE TO
USERS AND SERVICE TECHNICIANS.
English (Original Instructions)

Product requirements

Liquid temperature range
Chemical compatibility
Product specifications
Power type
Chemical pickup type
Number of products unit
can draw from
Capacity
Discharge line length/
diameter
Discharge wand/tip type
Output distance
Output volume
Flow rate*
Pump seals
Run time from full tank**
* Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
** Area covered and run time may vary based on humidity, air flow, and product used.
Model: F5.0L-PSG, F10.0L-PSG, F5.0L, F10.0L
40-100˚F (4.4-37˚C)
Chemical products used with this equipment must be formulated for this type of
application and compatible with unit materials and pump seals. For more information
on chemical compatibility, consult the manufacturer or SDS for your product or
contact our customer service department.
F5.0L-PSG F5.0L
Manual
Pre-mixed solution
One product
1.3 gallons (5 liters)
6.5 ft. (2 m) hose, with 1/4 in.
(6.4 mm) inside diameter)
Polypropylene trigger handle
with 17 in. (43.2 cm) wand
extension and 110˚ fan tip
3-5 ft. (0.9-1.5 m)
1 gal/min (3.8 l/min)
0.25 gal/min (0.9 l/min)
Viton
Approx. 5 min.
F10.0L-PSG
Manual
Pre-mixed solution
One product
2.6 gallons (10 liters)
6.5 ft. (2 m) hose, with 1/4 in. (6.4 mm) inside diameter)
(7 in. (17.8 cm) stainless
steel wand with zero tip
and ball valve;
Polypropylene trigger
handle with 25˚ fan tip)
4-5 ft. (1.22-1.52m)
2.37 gal/min (8.99 L/min) 1.00 gal/min (3.78 l/min)
0.37 gal/min (1.40 L/min)
Viton
Approx. 7 min.
F10.0L
Polypropylene trigger
handle with 17 in. (43.2 cm)
wand extension and 110˚ fan
tip
1-3 ft. (0.30-0.91 m)
0.18 gal/min (0.70 l/min)
Approx. 10 min.
V20200828 Page 1 of 4
•
