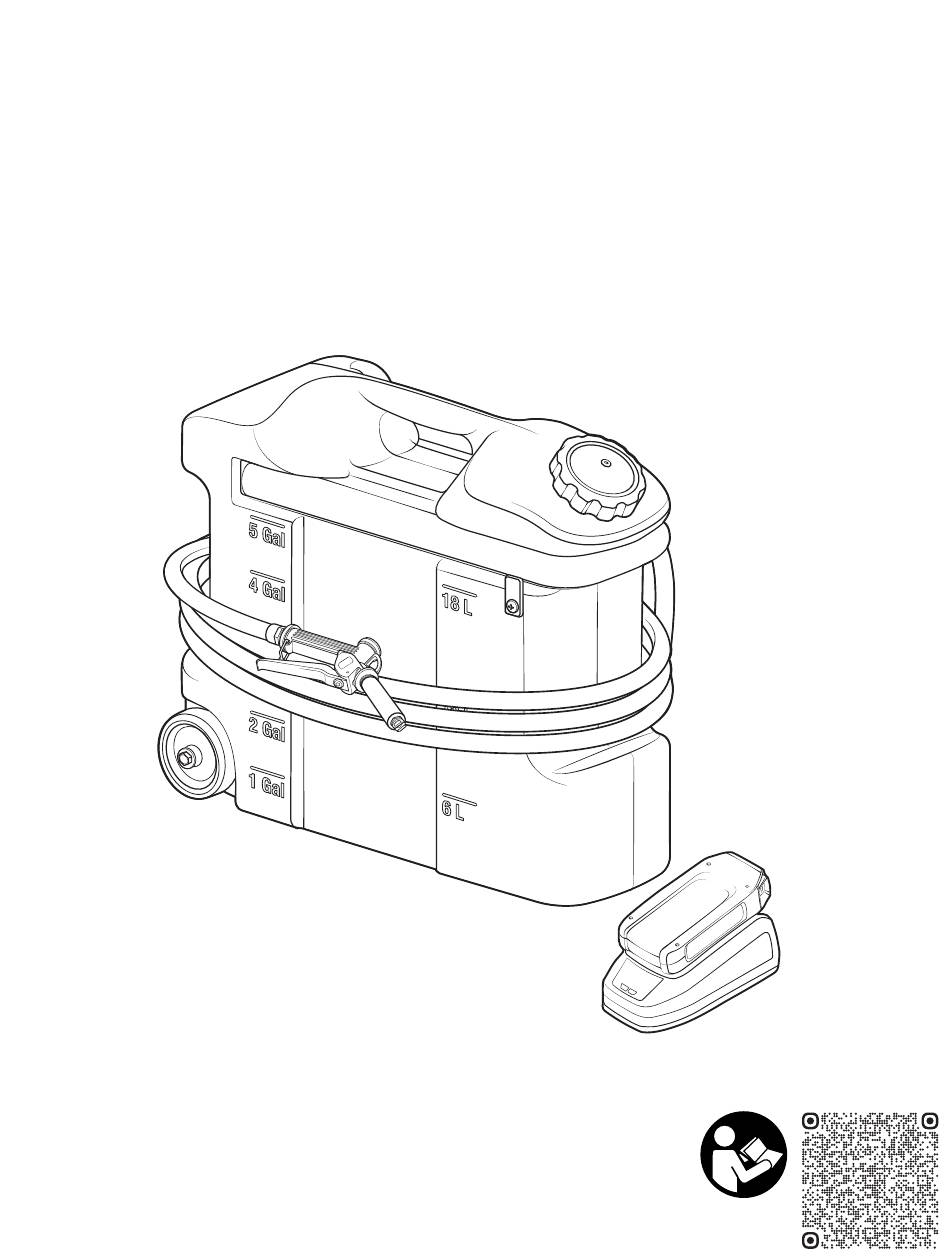

- Page 1 5 Gallon Battery Powered Foam Unit Service Manual FI-BP-5N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 Store unit and battery indoors in a cool, dry location between 32°-77°F (0°-25°C) and < 75% relative humidity. Do not store below 32°F (0°C) or above 113°F (45°C). To prevent premature battery failure, do not store battery in depleted state for long periods of time. Model: FI-BP-5N V20241127 • Page 2 of 13...
-
Page 3: Protect The Environment
PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model No.: FI-BP-5N Manufactured by: FOAMit 3833 Soundtech Ct. SE Grand Rapids, MI 49512 US This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FI-BP-5N V20241127 • Page 4 of 13...
- Page 5 • A faulty pump or compressor may need to be replaced. Battery/charger fault light is • Refer to the separate manuals supplied with the battery and charger for more flashing information regarding indicator and fault lights. Model: FI-BP-5N V20241127 • Page 5 of 13...
-
Page 6: Tank Assembly
Wheel - polypropylene - for 9 CST5-WHL CST5SS and CST5SS-L Flat washer for 3/8-16 bolt - 10 FW3816 stainless - 0.41 in. id x 0.88 in. od x 0.05 in. thk CSTA-5WHL Model: FI-BP-5N V20241127 • Page 6 of 13... -
Page 7: Back Plate Assembly
Flat washer for #8 screw - 14 FW8 stainless - 0.17 in. id x 0.63 in. od x 0.07 in. thk ⅜ in. id blue hose - hybrid TPE 15 H38BL-F available per ft. Model: FI-BP-5N V20241127 • Page 7 of 13... - Page 8 Battery - lithium ion - 24V - 9 BLI-24V-CHRGR charger - includes NA power cord and manual Note: Refer to battery and charger user manuals for more information. *not included with backplate assembly Model: FI-BP-5N V20241127 • Page 8 of 13...
- Page 9 1/ 4 in. MPT x 1/ 4 in. barb Needle valve - ¼ in. NPT - includes 7 NV14 black knob Muffler - 1/ 4 in. male NPT - 8 MFLRPE14 polyethylene PSHA-BP NVA-NV14-BP Model: FI-BP-5N V20241127 • Page 9 of 13...
- Page 10 Air compressor - 24 VDC electric - 4 AC24VDC-1.4-MLX 1.4 CFM open flow - 80 PSI max - includes molex connector 1/ 4 in. id blue hose - hybrid TPE - 5 H14BL-F available per ft. ACA-AC24VDC-1.4 Model: FI-BP-5N V20241127 • Page 10 of 13...
- Page 11 EPDM gskt - #20 mesh SS screen - black bowl Screw band clamp - stainless steel - 3 SSC38 for 3/8 in. hose Hose barb - stainless steel - 1/2 in. 4 HBSS1238 MPT x 3/8 in. barb SCTNA-PF-BP-TNK5 Model: FI-BP-5N V20241127 • Page 11 of 13...
-
Page 12: Hose Assembly
Screw band clamp - stainless steel - 2 SSC38 for 3/8 in. hose 3/8 in. id blue* hose - hybrid TPE - 3 H38BL-F available per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: FI-BP-5N V20241127 • Page 12 of 13... - Page 13 316SS internal spring - includes 2x o-ring Hose barb - stainless steel - 13 HBSS1238 1/2 in. MPT x 3/8 in. barb Screw band clamp - stainless steel - 14 SSC38 for 3/8 in. hose Model: FI-BP-5N V20241127 • Page 13 of 13...
