MT9S6NNV01-GEVK
MT9S6NNV01 LVDS Adapter
Board User's Manual
Evaluation Board Overview
The LVDS Adapter Board is designed to demonstrate the Onsemi
sensors that support an LVDS output interface. This Adapter board is
intended to plug directly into the Demo3 system through a
AGB2N0CS Demo2 to Demo3 Adapter board. The onboard
De−serializers receive a LVDS serial data stream and transform it into
a 10−bit wide parallel data
Features
Clock input
Default – 27 MHz crystal oscillator
22 MHz crystal oscillator
Optional Demo3 controlled MClk
One LVDS (RJ45) connector allowing connection to a Demo head
board with serial only interface.
Interfaces with the Demo3 BaseBoard
External 5V Power Supply Jack.

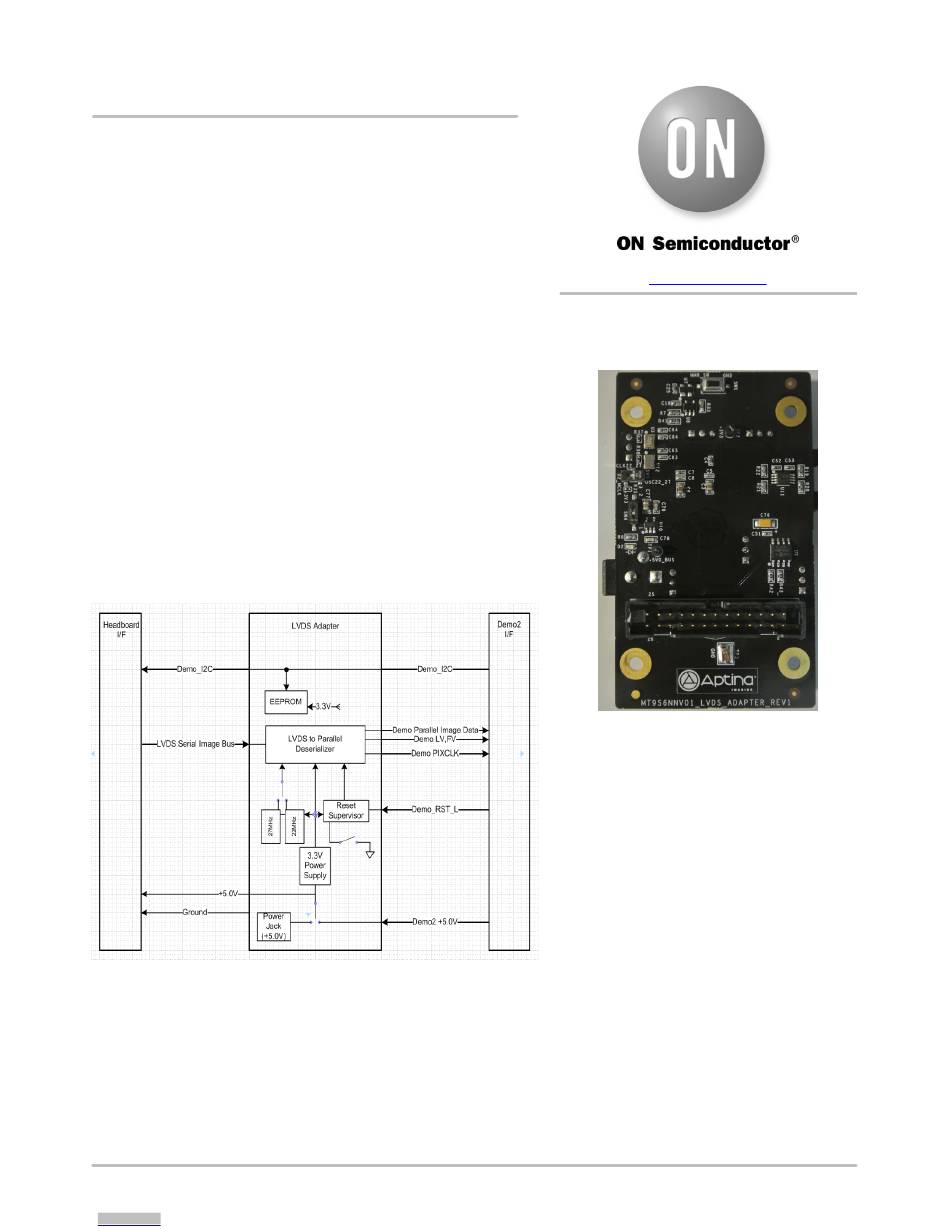

Figure 2. Block Diagram of MT9S6NNV01−LVDS Adapter Board
