Parker Sporlan S3C Installation Manual

S3C Cellular Gateway
Installation Guide
SD-458 / 52019

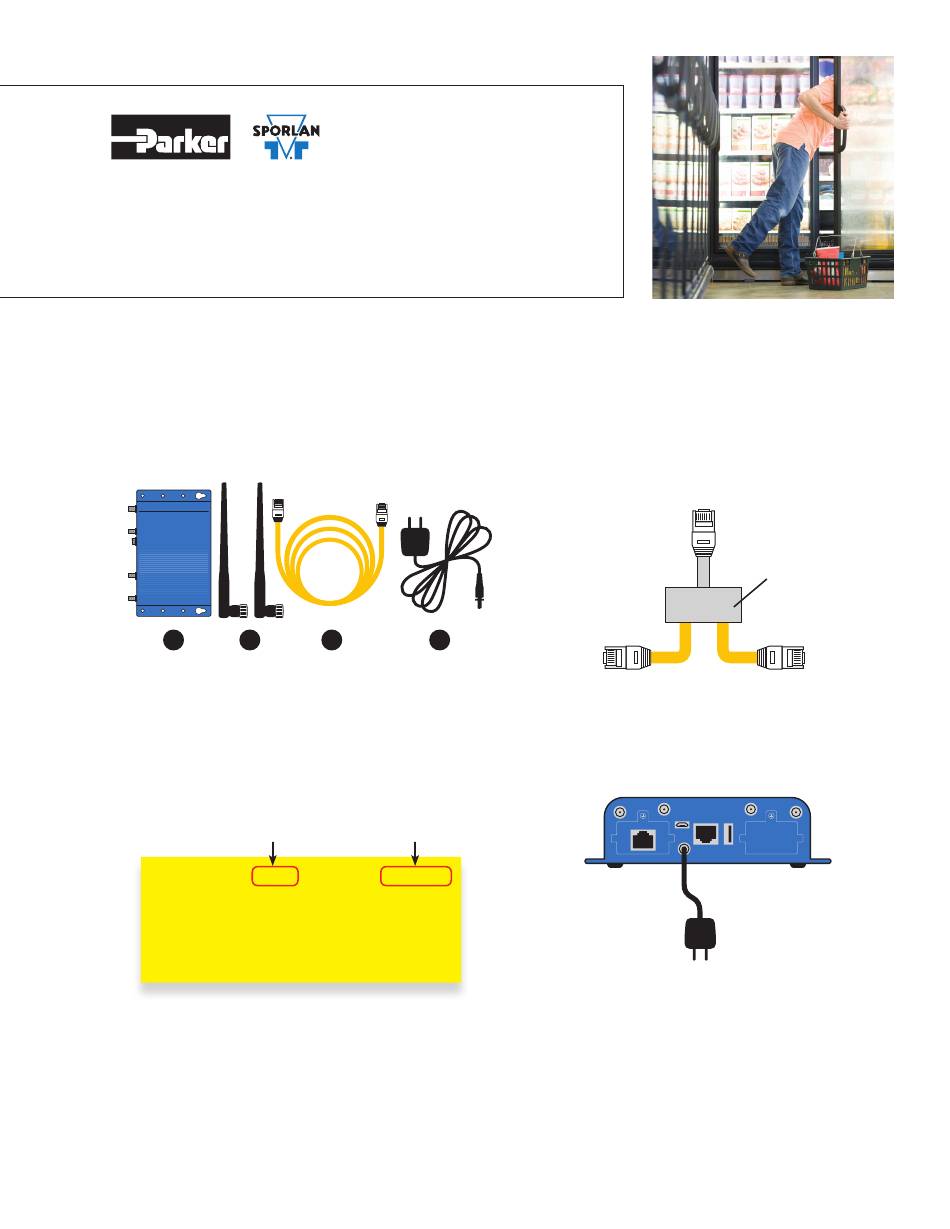

1. COMPONENTS
Ensure all components are available:
A. Gateway
B. Cell Antenna (Qty. 2)
C. Ethernet Cable
D. 120VAC Power Supply
A B
2. PRODUCT LABEL INFORMATION
Note key information on the product label located on the
gateway.
Cell Carrier Nomenclature:
LAT = AT&T
LVW = Verizon
Cell Carrier
S3C GATEWAY (LAT)
STORE: XXXX XXXXXXXXX
24/7 SUPPORT: 1-888-920-6284
PROPERTY OF: PARKER HANNIFIN
206 LANGE DRIVE
WASHINGTON, MO
C D
Gateway S/N
S/N: XXXXXXX
3. PLACEMENT
Find a dry location outside of the refrigerated display case
near the beginning or end of the S3C Ethernet network.
By placing the gateway at the beginning or end of the net-
work, it will allow the gateway to be plugged into the open
Ethernet port of the S3C Case Control. Alternatively, if it
is challenging to reach the end of the network, a CAT-5
Ethernet splitter can be used to accommodate a connection
in the middle of the network.
4. POWER SUPPLY
Install power supply cable to the back of the gateway.
CAT-5
Ethernet
Splitter
