Step 1: Flume Assembly - Inter-fab Zoomerang Installation Manual

ASSEMBLY
Tools
Hammer, drill, hammer drill (for masonry deck), socket wrench with 7/16" and 9/16" sockets,
7/16" open-end wrench, ½" open-end wrench, pencil or marker.
Flume Support to Flume
Flatten product box to use as a protective work platform. This prevents possible scratching of
the acrylic slide parts during assembly.

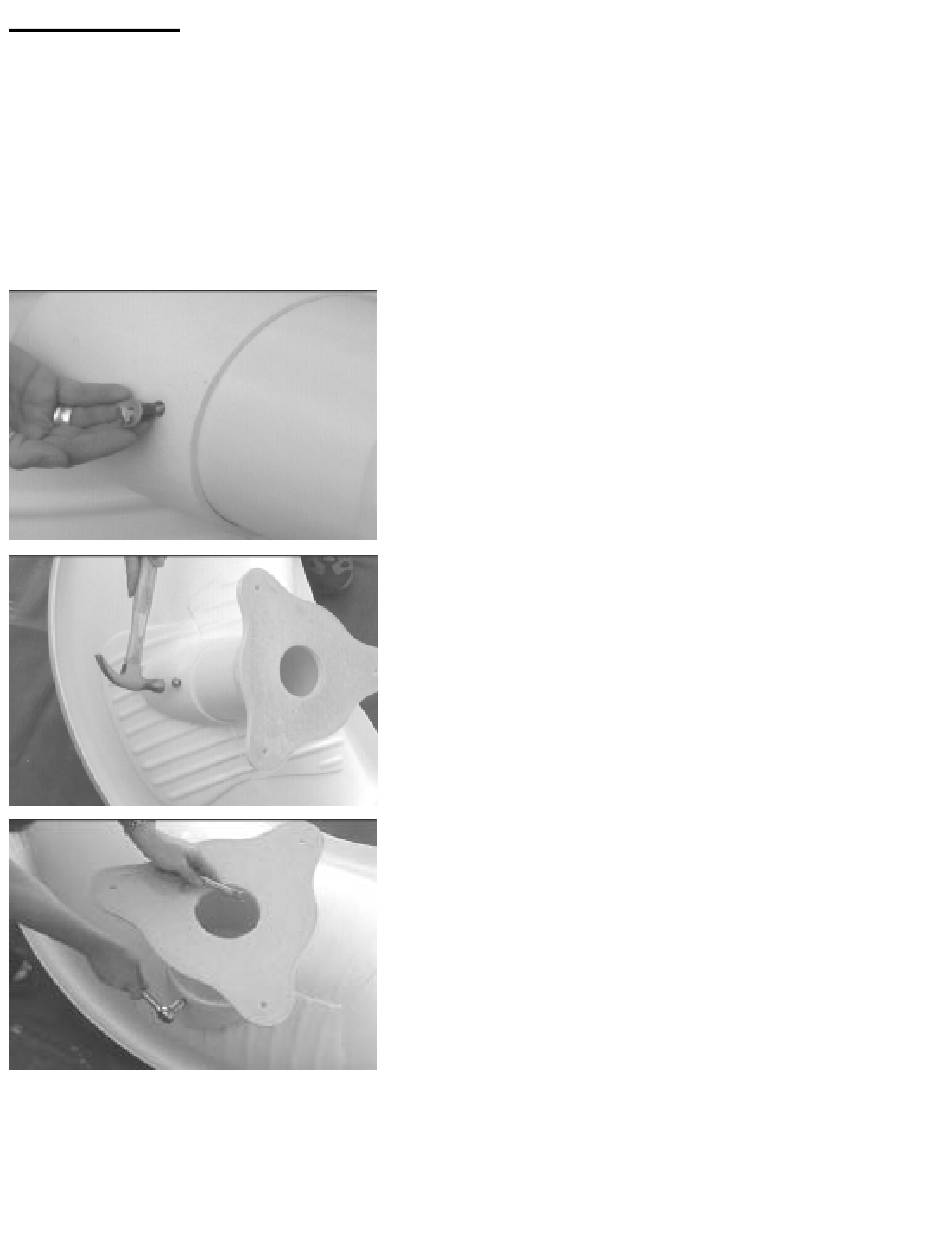

1. Align pre-drilled holes in the flume support pipe
with those of the receptor on the underside of the
flume.
2. Using the 1" long bolt and corresponding washer,
insert 3/16" roll pin onto bolt. Use a hammer to
gently tap the
pipe/receptor.
3. Secure on the inside of the pipe with ¼" nut and
corresponding washer using a 7/16" wrench.
Repeat for all three holes.
5
bolt assembly into the
