5-5. BT-HID and BT-SPP Communication Interface Options

When BT-HID or BT-SPP is chosen as the Communication Interface, the BT-ID and BT-Pin-Code options
become available.

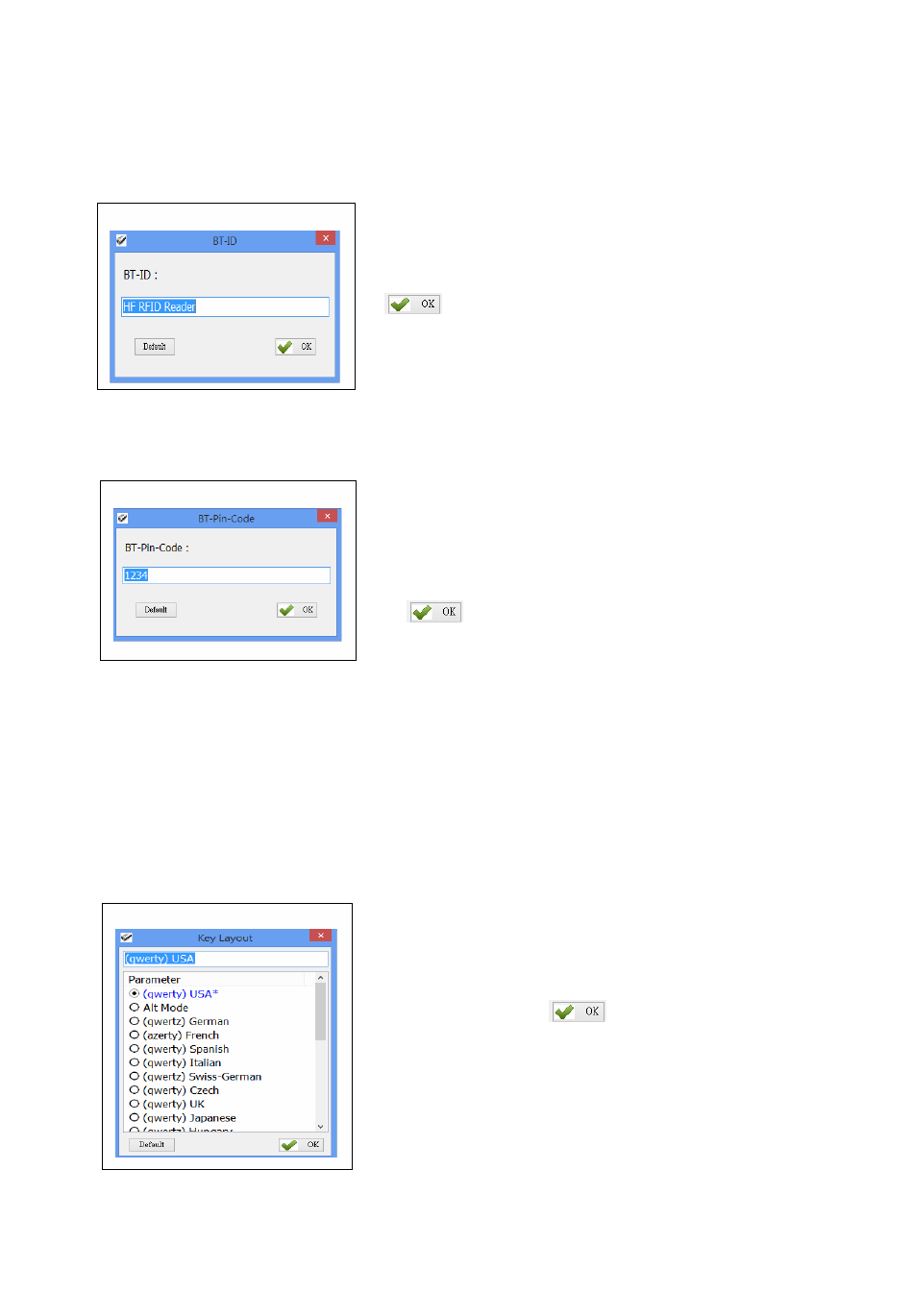

5-5-1. BT-ID

Figure 5-7

5-5-2. BT-Pin-Code

Figure 5-8

5-6. USB-HID and BT-HID Communication Interface Options

When USB-HID or BT-HID are chosen as the Communication Interface, additional options become
available. These include Key Layout, Key Numeric, Key Caps lock, Inter-block, and Inter-character.

5-6-1. Keyboard Layout

Figure 5-9
Sets the Bluetooth-ID name, for Host-PC display purposes.
Configuration Method:
Choose a desired phrase, maximum 16 Bytes. Once chosen, click
to transfer the parameter value to the MR10A7.
Default setting: HF RFID Reader
Sets the Pin-Code used when connecting to the Host-PC via
BT-SPP.
Configuration Method:
Enter the Pin-Code value, maximum 8 Bytes. Once chosen,
click to transfer the parameter value to the MR10A7.
Default setting: 1234
Sets the language used for MR10A7's data output to the Host-
PC. 24 choices are available.
Configuration Method:
Choose one, then click
to the MR10A7.
Default setting: (qwerty) USA
- 40 -
to transfer the parameter setting
