1-4-6. Reading NFC Tags

MR10A7's RFID antenna is located at its front (as per Figure 1-18). When reading, hold the unit, aim
at the NFC tag (as per Figure 1-19), and press the Trigger button. If reading is successful (Good
Read), the MR10A7 will emit one beep and the green LED indicator will simultaneously lit for one
second. Reading Range varies based on NFC tag specifications, as Table 1-4 describes.

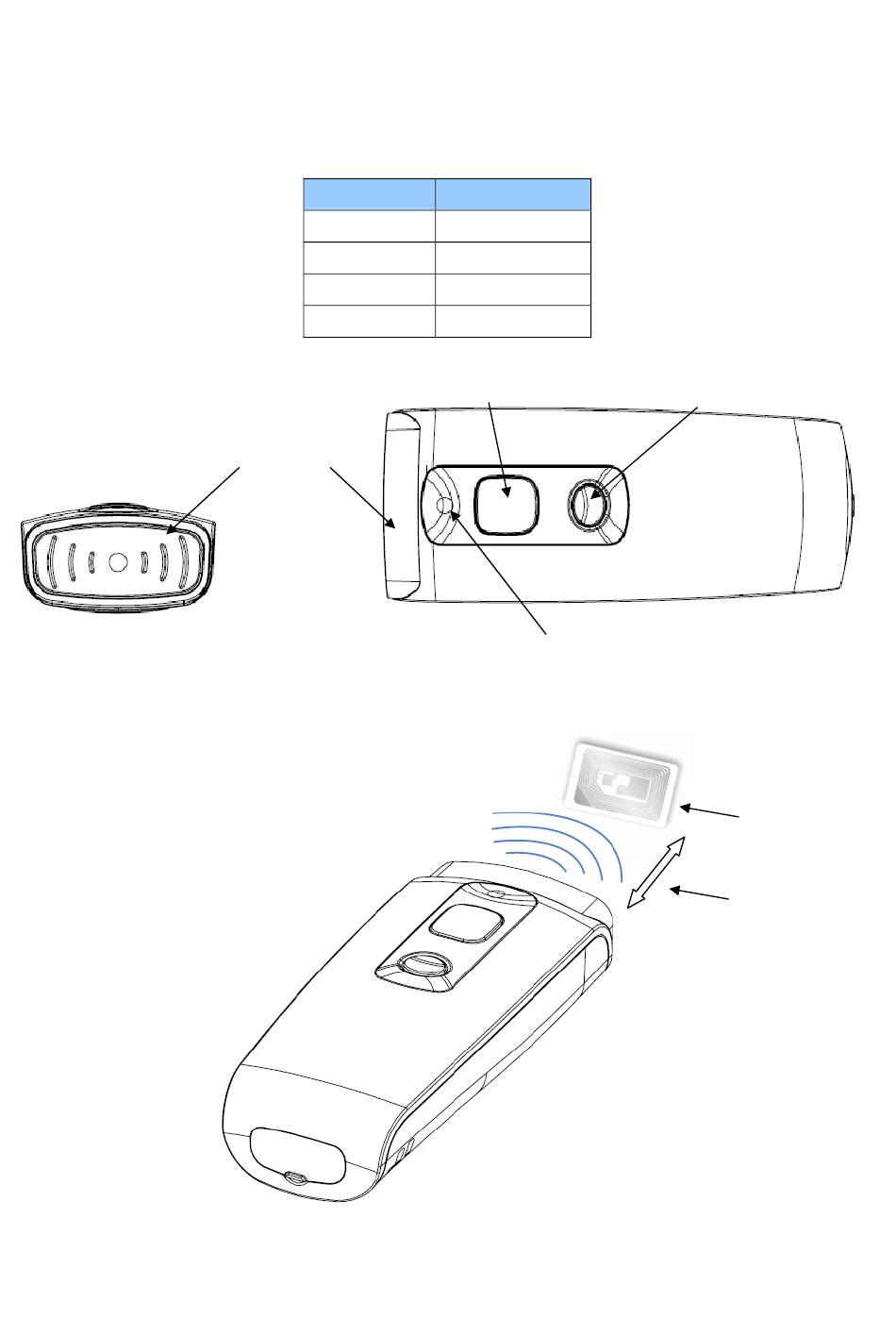

Figure 1-18:
Figure 1-19:
Standard
ISO 14443A
ISO 14443B
ISO 15693
Others
Table 1-4: Reading Range for Tags of various standards.
Antenna
Antenna, LED, Trigger Button and Function Button locations
Aiming at an NFC Tag and Reading Range
Reading Range
0~25mm
0~25mm
0~50mm
0~25mm
Trigger Button
Blue/Green/Red LED Indicator
- 18 -
Function Button
NFC Tag
Reading Range
