Snow Performance Boost Cooler Manual page 4

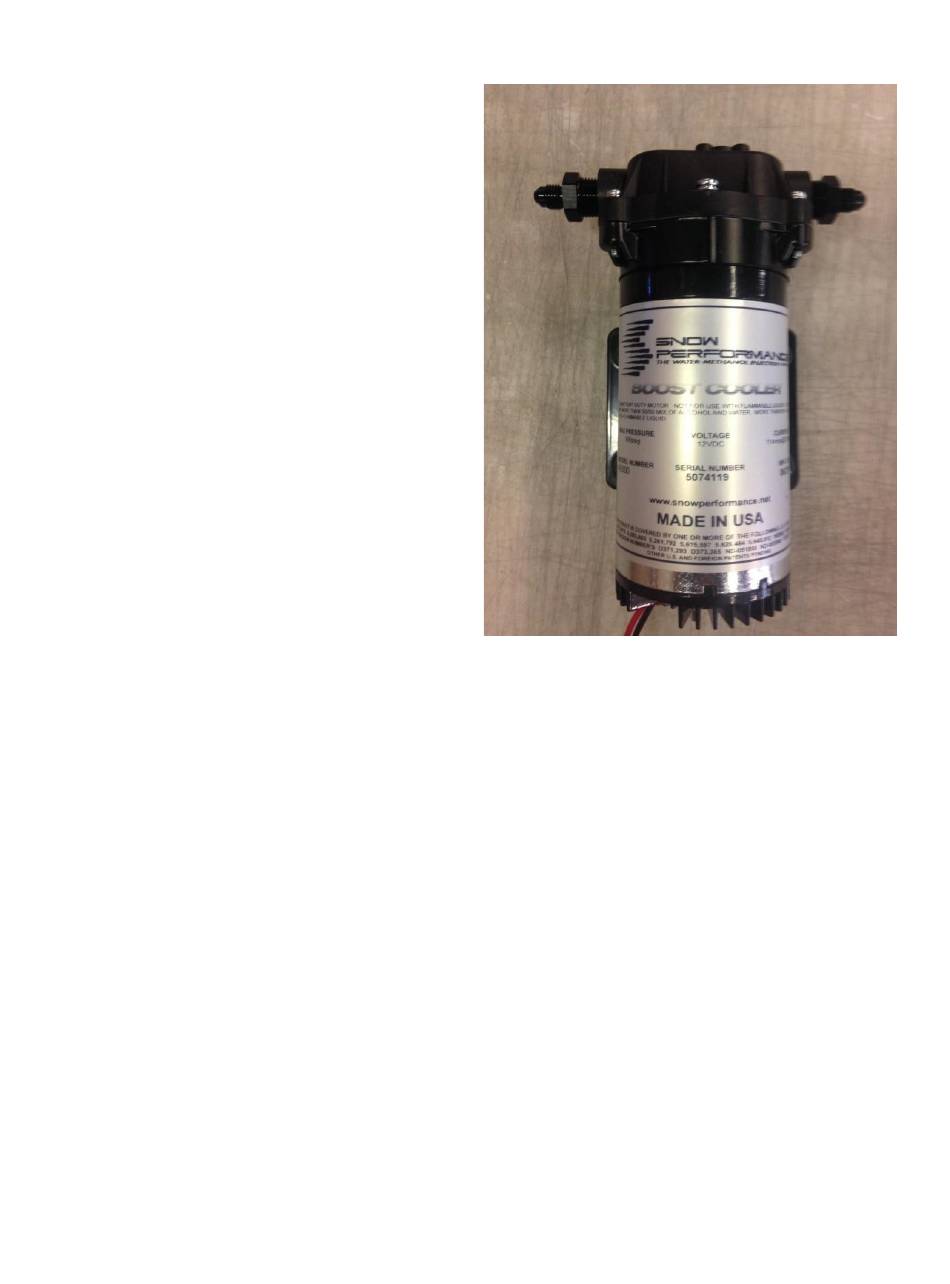

Step 3 Pump Install
Braided Line Kits Only- Install (2) 3/8" NPT to 4AN
Straight fittings into the pump inlet and outlet using
E6000® sealant on the threads. Do not overtighten as
damage to the pump housing can occur.
Quick Connect Kits Only-(These Systems may
include integrates push-lock fittings or 3/8" NPT
adapter fittings for poly line.)
For integrated push-lock style pumps-
Remove the blue rubber plugs from the quick-
connect fittings by first pushing the plug toward
the pump, hold the grey collar against the pump,
and gently pull the blue plug from the fitting.
Warning: Pulling against the quick connects with
excessive force may cause fitting damage.
For 3/8 NPT threaded style pumps-Install the
included 3/8 NPT-1/4" compression fittings into
the pump inlet and outlet using E6000 sealant
(on the NPT side of the fitting only!)
Do not overtighten, as damage to the pump
housing will occur.
Step 1: Position the fluid pump so that the inlet is
positioned at or below the lowest point of the
reservoir, and within two feet of the reservoir.
(Pump can be installed in any orientation). This
will ensure the pump is primed with fluid for
optimal flow and pressure to the nozzles.
**Arrows on the pump inlet and outlet indicate the
direction of fluid flow**
Step 2: Install the fluid pump with four (4) #8x1&1/2" screws and four (4) #8 washers (supplied) in
desired mounting location.
Step 3: Fit the high temp nylon tubing or braided line between the tank outlet fitting and the pump inlet,
ensuring there are no kinks in the line and there is no stress on the fittings. Sharp kinks/bends can
cause a leak in the system.
Braided Line Kits Only- Using the 2' or 1' stainless braided line section supplied in the kit connect the
tank outlet to pump inlet.
