- Page 1 Nova-227 Outdoor LTE TDD eNodeB Installation Guide P/N: 1701000123 Version: 01 All rights reserved © Baicells Technologies Co., Ltd.
- Page 2 This document suit for the models of pBS2120 and pBS1100x series eNodeBs. Copyright Notice Baicells copyrights this specification. No part of this specification may be reproduced in any form or means, without the prior written consent of Baicells. Disclaimer This specification is preliminary and is subject to change at any time without notice.
-
Page 3: Product Overview

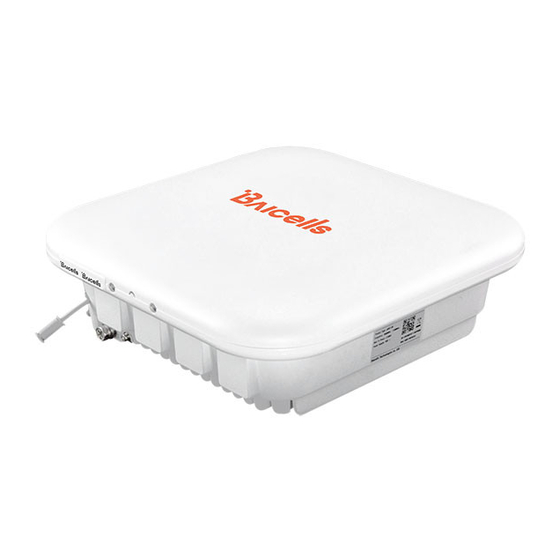

1. Product Overview Introduction Baicells Nova-227 is high performance outdoor micro eNodeB based on TDD LTE technology, which is developed by Baicells. The Nova-227 supports wired backhaul connections to backbone networks, and provides LTE access to user terminals, implemented voice and data service transmissions. - Page 4 Appearance Table 1-1 Nova-227 Interface Description Interface Name Description ETH/PoE+ RJ-45 interface, used for data configuration or data backhaul, and PoE+ power supply. Table 1-2 Nova-227 Interface Indicators Identity Color Status Description Steady On Power On Green No Power Supply Steady On The cell is activated.
-
Page 5: Technical Specification
Technical Specification 1.4.1 Hardware Specification Item Description LTE Mode LTE TDD LTE Bands Band38/39/40/41/42/43/48 Channel Bandwidth* 5/10/15/20 MHz Output Power 24±2dBm/Ant -100 dBm @band42/43/48 Receive Sensitivity -101 dBm @band38/39/40/41 Synchronization Backhaul 1 x RJ-45 Ethernet interface (1 GE) MIMO DL: 2 x 2 Dimension 248mm (H) x 248mm (W) x 80mm (D) Installation Type... -
Page 6: Environment Specification
Item Description UL: QPSK, 16QAM, 64QAM Modulation DL: QPSK, 16QAM, 64QAM Voice Solution CSFB, VoLTE, eSRVCC LIPA (Local IP Access) Traffic Offload SIPTO (Selected IP Traffic Offload) Automatic setup ANR (Automatic Neighbor Relation) PCI confliction detection Spectrum Scanning Supported UL Interference Supported Detection RAN Sharing... -
Page 7: Installation Preparation
(large radar stations, transmitting stations, transformer substations) are not suitable for the operation of Nova-227, and thus should be avoided. Places prone to have impounded water, soaking, leakage, or condensation, should also be avoided. -
Page 8: Install On Pole
Install on Pole Install on Wall Note: According to the situation of the installation site, the angle of the eNodeB can be adjusted. -
Page 9: Connect Ground Cable
Connect Cable Before connect cables, unscrew the three screws on the cover of wiring cavity using M4 cross screwdriver and open the wiring cavity. After complete the connection, close the cover and fasten screws. Note: If the base station need to debug, connect the LAN interface to PC first and configure the IP address of the PC with 192.168.150.x. -
Page 10: Appendix A Regulatory Compliance
Appendix A Regulatory Compliance Only apply to the model pBS2120. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
