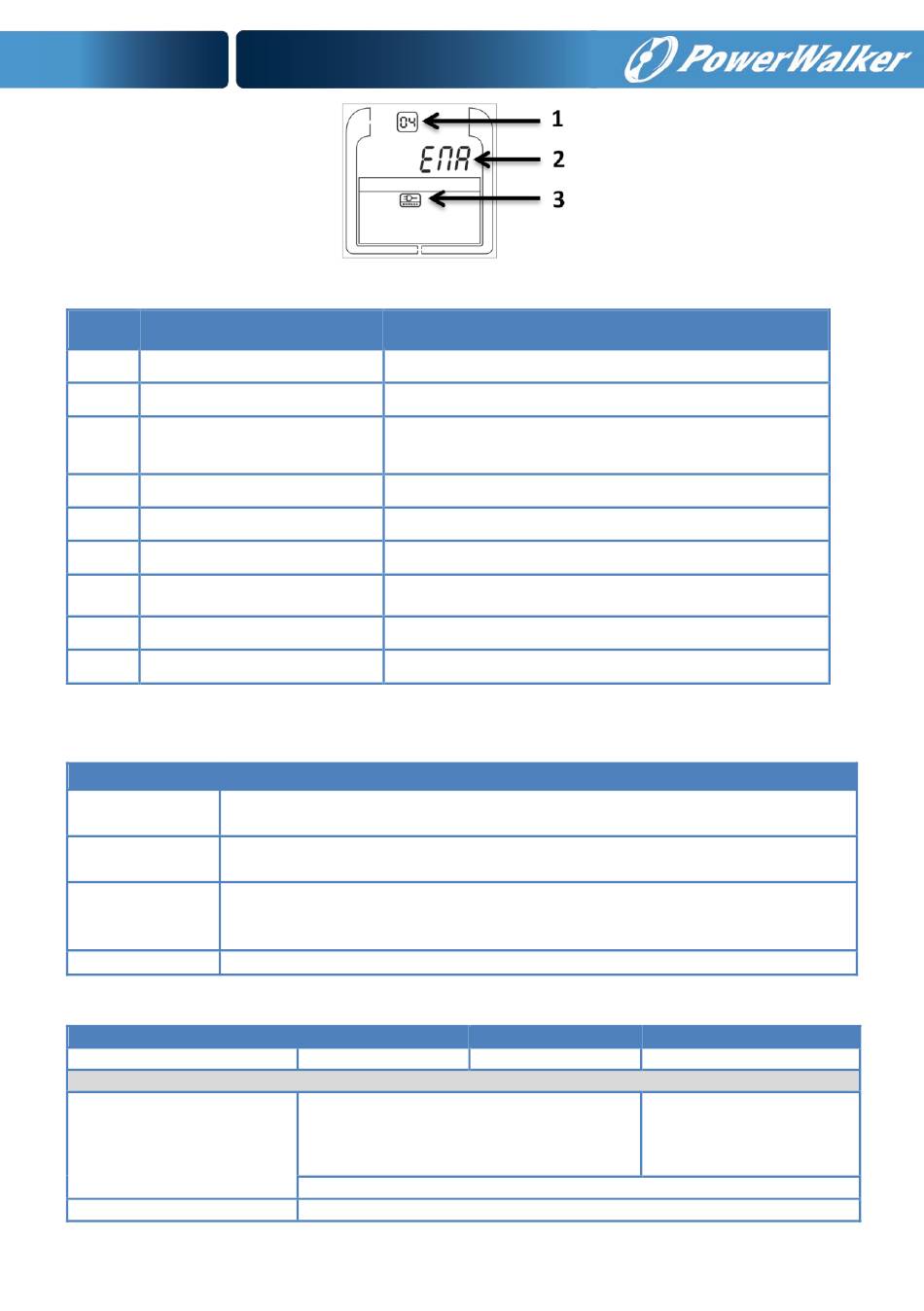

1. Setting Item
2. Setting Value
3. Additional Icon
item Configure submenu
001 Output Voltage
002
Output Frequency
ECO Mode
[1]
003
range
004 Bypass Mode
005 Converter Mode
006 EPO/ROO
[4]
Quantity of Battery Packs
007
[5]
008 Bypass when UPS is Off
009 Buzzer
Default settings are marked bold.
Event description and troubleshooting
Event Description
E11, E12, A62 Various issues related to batteries. Please check if batteries are connected
and they are in good condition.
E14 Issue related to the load. Check if there is no short-circuit or excessive load.
Test the UPS without the load.
E18, E19, A68 Issues related to overheating or fan failure. Please check that the fan is
rotating, ventilation holes are not covered and the ambient temperature is
within norm.
EPO Missing EPO connection.
Technical Specification
MODEL
CAPACITY
INPUT
Voltage Range
Frequency Range
Available Settings
=[208V] [220V] [230V] [240V]
= [50.0Hz] [60.0Hz]
input voltage
[0%] (Disabled) [10%] [15%] (Enabled)
[DIS] (Disabled) [ENA] (Enabled)
[2]
[CF DIS] (Disabled) [CF ENA] (Enabled)
[3]
[EPo] /[Roo]
[0bP]/[1bP]/[2bP]/[3bP]
[DIS] (Disabled) [ENA] (Enabled)
[DIS] (Disabled) [ENA] (Enabled)
1000
1000 VA / 900 W
80-300V for 0-30% load
120-300V for 30-60% load
140-300V for 60-80% load
160-300V for 80-100% load
2000
2000 VA / 1800 W
all values are ±5%
40Hz ~ 70 Hz
15
3000
3000 VA / 2700 W
80-300V for 0-30% load
140-300V for 30-60%
160-300V for 60-80%
190-300V for 80-100%
